John Deere 10P Poly Utility Cart CPLPPCT10JDJohn Deere 10P Poly Utility Cart CPLPPCT10JD
Description
ADditional information

Description

Part Number: CPLPPCT10JD

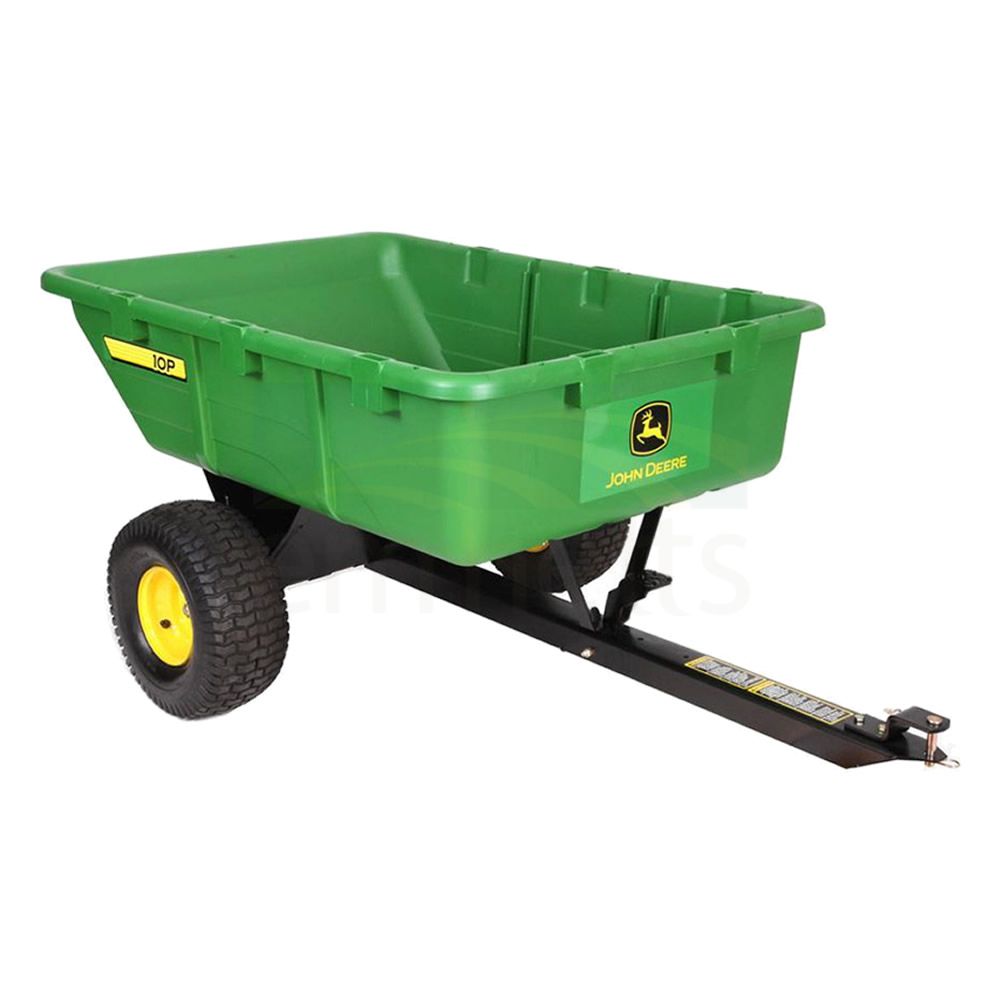

10P Poly Utility Cart

Every owner of a John Deere riding lawn and garden product is a potential customer for a high-quality, affordable utility cart.

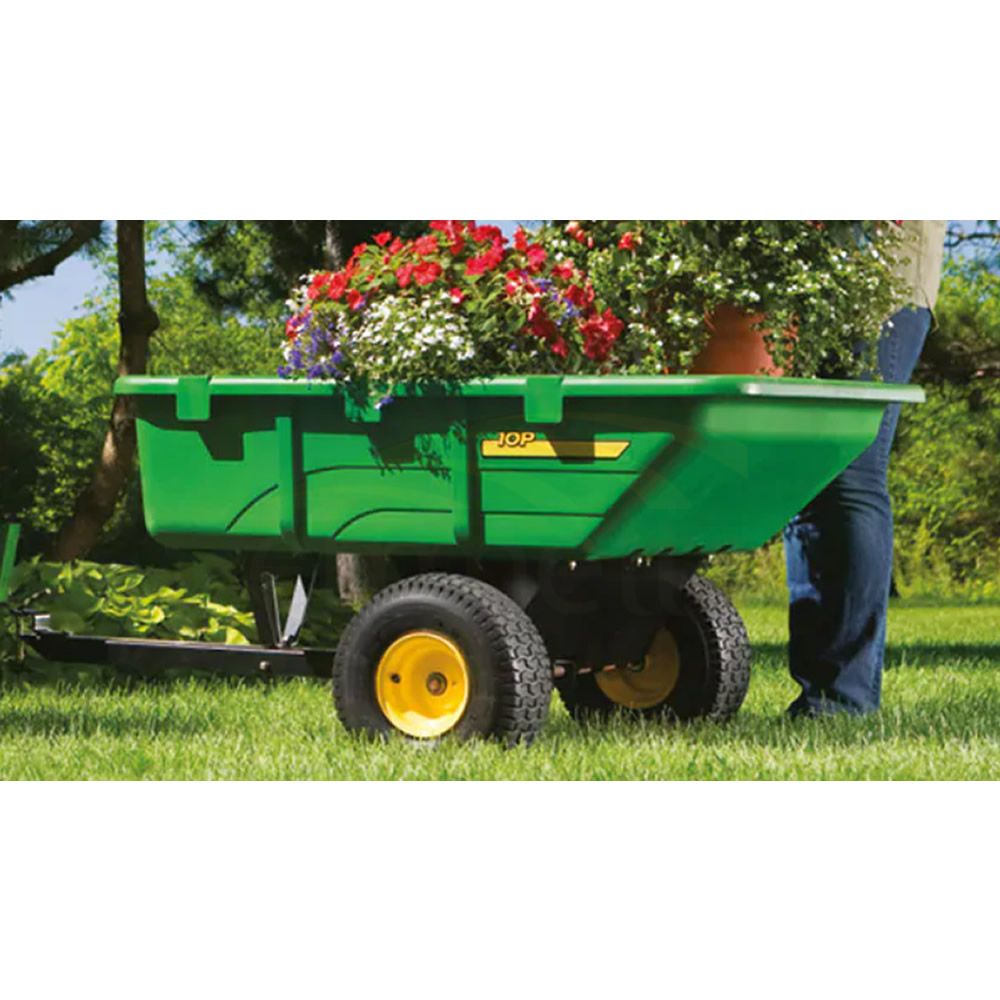

Utility carts can be used to haul a variety of materials:

  • Firewood
  • Lawn debris
  • Sand
  • Dirt
  • Mulch
  • Garden tools
  • Plants and bushes

The 10P Utility Cart is designed, painted, and decaled to be compatible with other John Deere equipment:

  • 10-cu ft (283-L), heavy-duty, 0.25-in. (6.4-mm) thick poly bed
  • Will not dent or rust
  • 15×6 tubeless pneumatic tires with turf tread for maximum traction
  • Easy, hands-free foot pedal dump release
  • Steep dump angle for complete emptying

A convenient foot pedal dump release kit, LP48017, which now comes standard on all 10P and 17P carts is available to retrofit existing poly carts. This kit allows the operator to use both hands to lift the cart bed for more natural and efficient unloading.

10P Cart Information

Model comparison chart
Comparison with similar models

ModelOrder throughBox capacity (heaped)Material thicknessMaximum weight Vehicle compatibility
7POrder Zone7 cu ft (0.20 m3)High-density polyethylene (HDPE)**450 lb* (204 kg)EZtrak™, ZTrak™, 100 Series, 200 Series, X300 Series, X500 Series, X700 Series
8YOrder Zone8 cu ft (0.22 m3)HDPE**300 lb* (136 kg) (tow)100 Series, 200 Series, X300 Series, X500 Series, X700 Series
10POrder Zone10 cu ft (0.28 m3)Polypropylene650 lb* (295 kg)EZtrak, ZTrak, 100 Series, 200 Series, X300 Series, X500 Series, X700 Series
10PXOrder Zone10 cu ft (0.28 m3)Polypropylene650 lb* (295 kg)EZtrak, ZTrak, 100 Series, 200 Series, X300 Series, X500 Series, X700 Series
13Order Zone13 cu ft (0.37 m3)16-gauge, 0.06-in. (1.5-mm) steel1,000 lb* (454 kg)100 Series, 200 Series, X300 Series, X500 Series, X700 Series
16YSOrder Zone17 cu ft (0.48 m3)Polypropylene800 lb (363 kg), 350 lb (158 kg) when using swivel feature to dump*100 Series, 200 Series, X300 Series, X500 Series, X700 Series
17POrder Zone17 cu ft (0.48 m3)Polypropylene1,000 lb* (454 kg)100 Series, 200 Series, X300 Series, X500 Series, X700 Series
18Order Zone18 cu ft (0.51 m3)16-gauge, 0.06-in. (1.5-mm) steel1,000 lb* (454 kg)100 Series, 200 Series, X300 Series, X500 Series, X700 Series
21Order Zone21 cu ft (0.59 m3)16-gauge, 0.06-in. (1.5-mm) steel1,000 lb* (454 kg)X700 Series

*The total weight of the cart and payload. For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg). The maximum weight for the 21 Utility Cart is rated at 20 mph (32.2 km/h).

**HDPE is compression molded for optimum thickness in all areas and maximum durability.



7P8Y10P10PX1316YS 17P1821
Box capacity
Heaped7 cu ft (0.20 m3)8 cu ft (0.22 m3)10 cu ft (0.28 m3)10 cu ft (0.28 m3)13 cu ft (0.37 m3)17 cu ft (0.48 m3)17 cu ft (0.48 m3)18 cu ft (0.51 m3)21 cu ft (0.59 m3)
Struck5.6 cu ft (0.16 m3)6.6 cu ft (0.19 m3)8.3 cu ft (0.24 m3)8.3 cu ft (0.24 m3)10 cu ft (0.28 m3)15 cu ft (0.42 m3)14 cu ft (0.40 m3)15 cu ft (0.42 m3)15 cu ft (0.42 m3)
Maximum weight450 lb* (204 kg)300 lb* (136 kg)650 lb* (295 kg)650 lb* (295 kg)1,000 lb* (454 kg)800 lb* (363 kg), 350 lb (158 kg) when using swivel feature to dump*1,000 lb* (454 kg)1,000 lb* (454 kg)1,000 lb* (454 kg)
Box dimensions
Width33 in. (84 cm)33.68 in. (85.5 cm)30.3 in. (77 cm)30.3 in. (77 cm)30.25 in. (76.8 cm)39.5 in. (100.3 cm)39.5 in. (100.3 cm)38 in. (96.5 cm)48 in. (122 cm)
Length45 in. (114 cm)45 in. (114 cm)44.5 in. (113 cm)44.5 in. (113 cm)48 in. (122 cm)58.5 in. (148.6 cm)58.5 in. (148.6 cm)48 in. (122 cm)48 in. (122 cm)
Depth10.5 in. (27 cm)10.75 in. (27.3cm)12 in. (30.5 cm)12 in. (30.5 cm)12 in. (30.5 cm)15.5 in. (39.4 cm)15.5 in. (39.4 cm)18 in. (45.7 cm)11 in. (27.9 cm)
Box constructionMoldedMoldedMoldedMoldedWeldedMoldedMoldedWeldedBolted
MaterialHigh-density polyethylene (HDPE)**HDPE** w/UV inhibitorPolypropylenePolypropylene16-gauge, 0.06-in. (1.5-mm) steelPolypropylenePolypropylene16-gauge, 0.06-in. (1.5-mm) steel16-gauge, 0.06-in. (1.5-mm) steel
TailgateNone, slopedNone, slopedNone, slopedNone, slopedHingedNone, slopedNone, slopedHingedLift-out/swing-out
Pneumatic tires2 ply2 ply2 ply2 ply4 ply4 ply4 ply2 ply
Size13×4-613×4-615×6.00-615×6.00-615×6.00-616×6.50-816×6.50-816×6.50-820×10.00-8
Tread designTurfKnobbyTurfTurfTurfTurfTurfTurfTurf
Recommended inflation pressure30 psi (207 kPa)30 psi (207 kPa)14 psi (97 kPa)14 psi (97 kPa)14 psi (97 kPa)35 psi (241 kPa)28 psi (193 kPa)28 psi (193 kPa)10 psi (70 kPa)
Wheel bearingsIron/OiliteNoneIron/OiliteIron/OiliteIron/OiliteIron/OiliteIron/OiliteIron/OiliteBall bearings, double sealed
Grease fittings on wheelsYesNoneYesYesYesYesYesYesNone
Axle diameter0.75 in. (1.905 cm)0.75 in. (1.905 cm)0.75 in. (1.905 cm)0.75 in. (1.905 cm)0.75 in. (1.905 cm)0.75 in. (1.905 cm)0.75 in. (1.905 cm)1 in. (2.54 cm)1 in. (2.54 cm)
Ground clearance5.62 in. (14.3 cm)5.25 in. (13.3 cm)6.5 in. (16.5 cm)6.5 in. (16.5 cm)6.5 in. (16.5 cm)14.25 in. (36.2 cm)14.25 in. (36.2 cm)7 in. (17.8 cm)8.25 in. (21 cm)
Width, overall34 in. (86.4 cm)33.68 in. (85.5 cm)38 in. (96.5 cm)38 in. (96.5 cm)38 in. (96.5 cm)39.5 in. (100.3 cm)39.5 in. (100.3 cm)38 in. (96.5 cm)48 in. (122 cm)
Hitch pinPin/spring clipPin/spring clipPin/spring clipPin/spring clipPin/spring clipPin/spring clipPin/spring clipPin/spring clipPin/spring clip
Dump angles55 degrees55 degrees56 degrees180 degrees31 degrees46 degrees46 degrees35/40 degrees35/40 degrees
Maximum tongue weight 100 lb (45.4 kg) 100 lb (45.4 kg) 70 lb (31.75 kg) 70 lb (31.75 kg) 100 lb (45.4 kg)50 lb (22 kg) 100 lb (45.4 kg) 100 lb (45.4 kg) 100 lb (45.4 kg)
Shipping weight with carton68 lb (31 kg)65 lb (29.5 kg)79 lb (35.8 kg)91 lb (41.3 kg)110 lb (49.9 kg)105 lb (47.6 kg)170 lb (77.1 kg)240 lb (109 kg)
Net weight65 lb (29 kg)55 lb (25 kg)72 lb (32.7 kg)84 lb (38 kg)105 lb (47.6 kg)103 lb (47 kg)105 lb (47.6 kg)150 lb (68 kg)220 lb (99.8 kg)

*Total weight of the cart and payload. For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg).
**HDPE is compression molded for optimum thickness in all areas and maximum durability.

Tractor compatibility and requirements
Utility Carts
Chart below shows vehicle compatibility.
An X indicates cart can be used with the pulling unit.


 Model7P8Y10P10PX1316YS 17P1821
EZtrak Z225, Z235, Z245, Z255, Z425, Z435, Z445, Z465, Z625, Z645, Z655, Z665
ZTrak Z335E, Z355E, Z335M, Z345M, Z345R, Z355R, Z375R, Z525E, Z535M, Z540M, Z535R, Z540R, Z720E, Z735E, Z730M, Z735M, Z740R
XXX
L100, L108, L110, L111, L118, L120, L130
102, 115, 125, 135, 145, 155C, 190C, LA100, LA110, LA120, LA130, LA140, LA150, LA105, LA115, LA125, LA135 LE, LA135 SE, LA145, LA155, LA165, LA175, D100, D105, D110, D120, D125, D130, D140, D150, D155, D160, D170, E100, E110, E120, E130, E140, E150, E160, E170, E180, S100, S110, S120, S130, S140, S160, S170, S180
X XXXXXXX
S220, S240XXXX XXXX
LT150, LT160, LT180, LT190, LTR180XXXXXX
LX280, LX280AWS, LX289XXXXXX
X300, X300R, X304, X310, X320, X324, X340, X360,
X330, X350, X350R, X354, X370, X380, X384, X390, X394
XXXX XXX X
SST15, SST16, SST18XXXX
G110XXXXXXX
GT235, GT245XXXXXXX
GX255, GX335, GX345, GX355XXXXXXX
X500, X520, X530, X534, X540
X570, X580, X584, X590
XXXXXXXX
X465, X475, X485, X495, X575, X585, X595XXXXXXXXX
X700, X720, X724, X728, X729, X740, X744, X748, X749
X710, X730, X734, X738, X739, X750, X754, X758
XXXXXXXXX



- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Specification

Additional information

Weight30 kg
Dimensions122 × 87 × 32 cm
