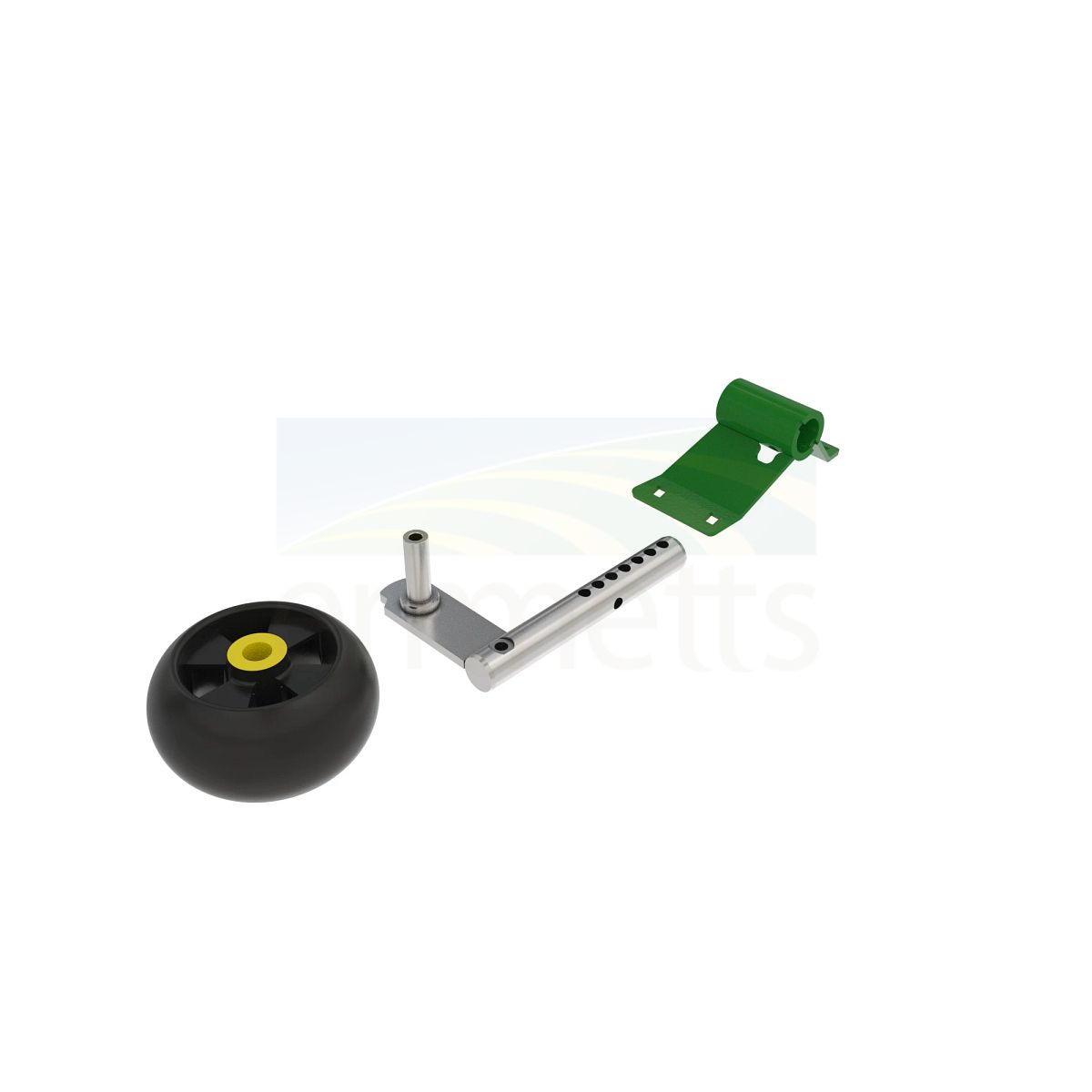

Complete Left Side Rear Gauge Wheel Kit BM20388
$340.48 inc GST
Description
ADditional information
Description
Part Number: BM20388

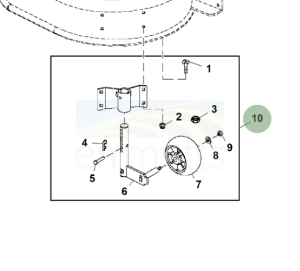

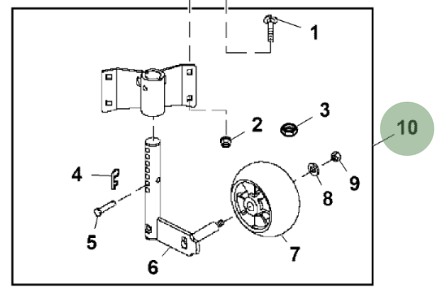

BM20388 is everything inside #10 on the diagram.

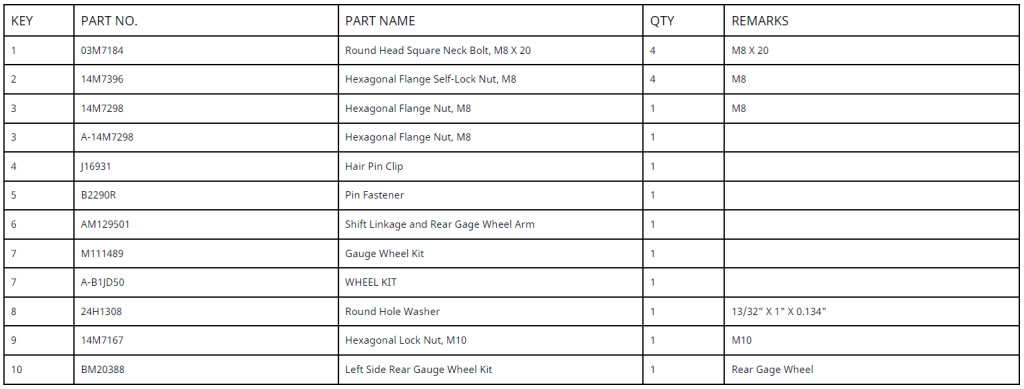

KEY PART NO. PART NAME QTY REMARKS
1 03M7184 Round Head Square Neck Bolt, M8 X 20 4 M8 X 20
2 14M7396 Hexagonal Flange Self-Lock Nut, M8 4 M8
3 14M7298 Hexagonal Flange Nut, M8 1 M8
3 Aftermarket option: A-14M7298 Hexagonal Flange Nut, M8 1
4 J16931 Hair Pin Clip 1
5 B2290R Pin Fastener 1
6 AM129501 Shift Linkage and Rear Gage Wheel Arm 1
7 M111489 Gauge Wheel Kit 1
7 Aftermarket option: A-B1JD50 WHEEL KIT 1
8 24H1308 Round Hole Washer 1 13/32" X 1" X 0.134"
9 14M7167 Hexagonal Lock Nut, M10 1 M10
10 BM20388 Left Side Rear Gauge Wheel Kit 1 Rear Gage Wheel
48 IN. - 54 in. - 60 in. - 600L HIGH DUMP
Specification
Additional information
| Weight | 2.3722 kg |
|---|---|
| Dimensions | 26 × 20 × 18 cm |
