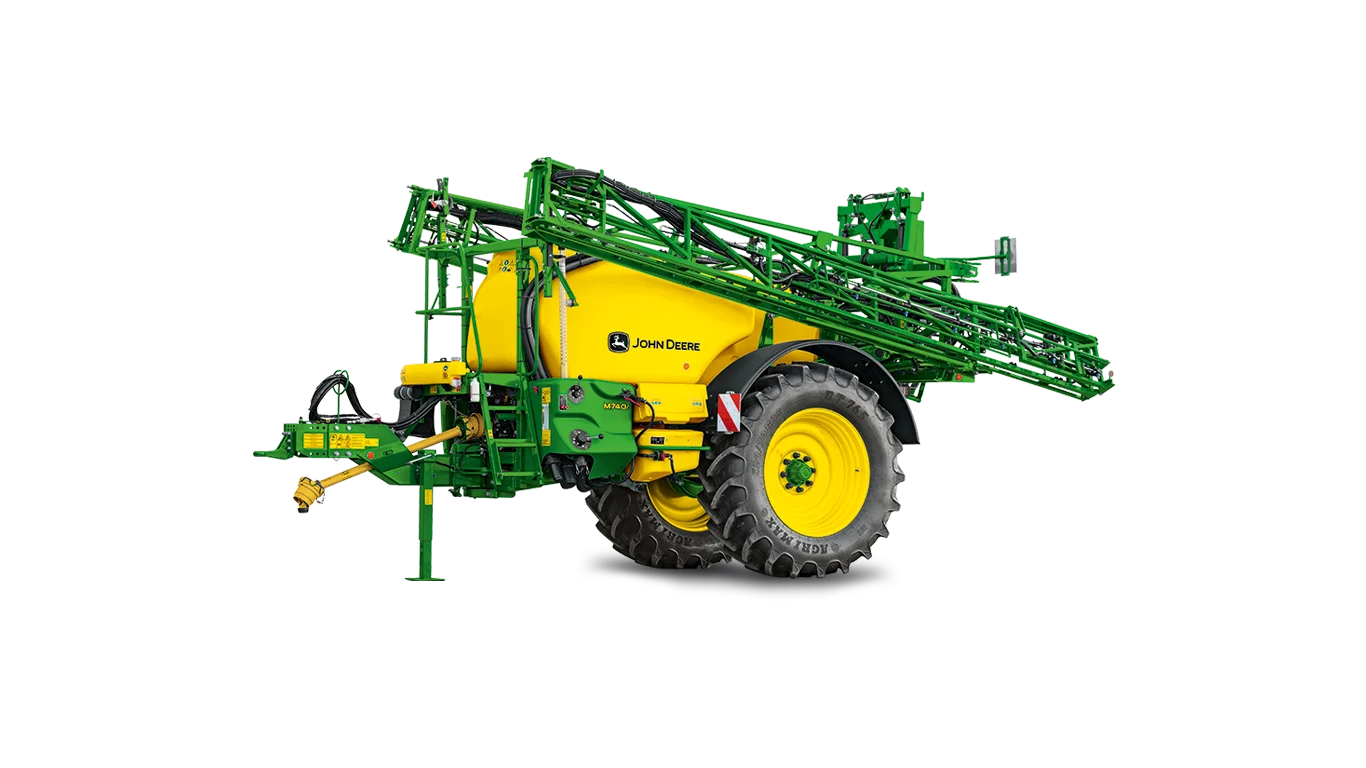

M724i
Trailed Sprayer
  • 2,400 L tank volume
  • 400 L rinse tank
  • 280 L/min pump capacity
  • Sprayer control with multi functional lever (joystick)
Make an Enquiry on This Machine
Features
M700/M700i Trailed Sprayers from John Deere. Learn about the features, specifications, attachments and finance offers on John Deere M700/M700i Trailed Sprayers
Expand All
Improved solution safety with closed transfer system
Easy connection to any closed transfer system Easy connection to any closed transfer system

Fill and rinse the R700i Trailed Sprayers using a closed transfer system. You can plug directly into the container with an adapter that is widely used by crop protection manufacturers.



  • Easy connection to any closed transfer system
  • Increase safety by avoiding almost any contact with crop protection liquids
Save and protect crop with individual nozzle control
Individual nozzle control Individual nozzle control
Keyfob for remote nozzle diagnoses Keyfob for remote nozzle diagnoses

Individual nozzle control provides efficient localized crop protection application. Save up to 5 percent in crop protection chemicals – up to 6 EUR per hectare*. The electronically controlled system reaches its ultimate potential together with the pressure recirculation spray functionality.


  • Reduce costs by minimizing application skips or overlap
  • Protect crops from overapplication of chemicals
  • Spray to map makes spot spray possible with individual nozzle control
  • Key fob enables remote nozzle diagnoses


*NOTE: Based on a 500-ha wheat farm and assumed costs of 53€/ha for herbicides and 65€/ha for fungicides (5 percent x 118€ = 5,90€/ha).

Primary pressure circuit ensures constant pressure to auxiliary functions
High-pressure circuit regulator (in yellow) and electrically controlled spray pressure (in purple) High-pressure circuit regulator (in yellow) and electrically controlled spray pressure (in purple)

The pressure regulation system of the M700(i) Series Trailed Sprayers combines a high-pressure circuit to ensure a constant pressure (10 bar [145 psi]) for all auxiliary functions and a low-pressure circuit with an electrically controlled spray pressure for accurate spray application.

Intuitive control of sprayer operations with two-valve operation station
Operation station with suction and pressure selection valve Operation station with suction and pressure selection valve

The centralized operator station on the left-hand side of the sprayer provides superior access to all functions. Clear, allocated symbols reduce the risk of operator mistakes.



For the main functionalities of filling, spraying, agitation. and rinsing, the suction selection valve and pressure selection valve are turned in the same direction.

Intuitive agitation with minimum pump requirement for maximum performance
Powerful hydro injectors for agitation Powerful hydro injectors for agitation

The M700(i) Series Trailed Sprayers feature a powerful agitation system.



The agitation is supplied by the separate high-pressure circuit to ensure a constant liquid supply of 78 L/min (20.6 gpm) at 10 bar (145 psi). The hydro injectors work with a venturi effect to create a high total agitation output or 408 L/min (107.8 gpm).

Specifications
Expand All
Key Specifications
Boom width (double folded booms)
18 – 28 metre
Boom width (triple folded booms)
24 – 30 metre
Boom height range
2.24 m (with 420/85R38 tyres)
Polyurethane double linked axle suspension
-
