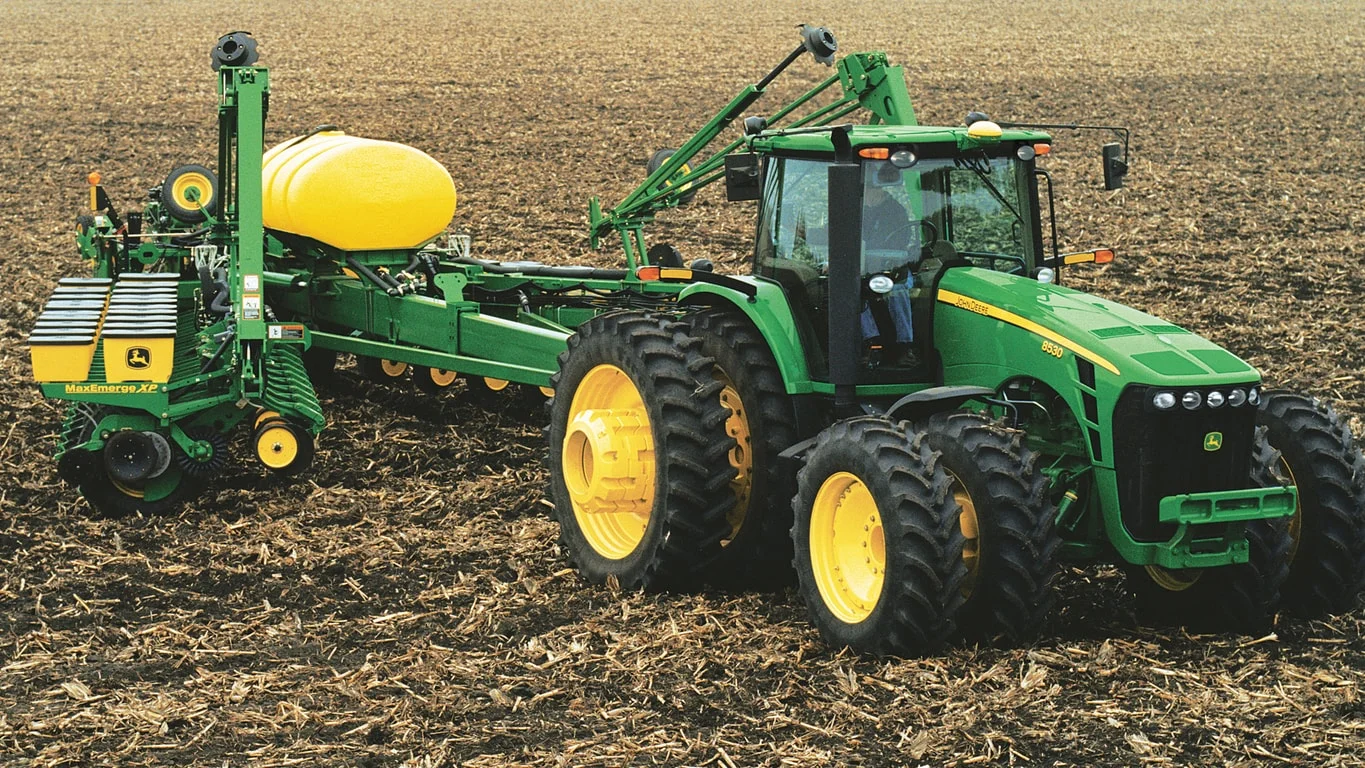

1775NT 16Row30
Drawn Planter
  • 16 rows on 30 in. (762 mm) spacing
  • Available with optional ExactEmerge™ or MaxEmerge™ 5e row unit or standard in mini-hopper, 1.6 bu., or 3 bu. MaxEmerge™ 5 row unit
  • Insecticide option for mini-hopper and 1.6 bu.
  • 3-section frame flexes 21 degrees up & down with narrow transport of 12 ft. (3.66 m)
Make an Enquiry on This Machine
Features
The 1775NT Drawn Planter is a 12-row, 76.2-cm (30-in.) planter that attaches to the drawbar or 2-point hitch of the tractor.
Expand All
Easy fluid transfer with the ExactRate™ fluid transfer system
24-row 1775NT Planter equipped with ExactRate system 24-row 1775NT Planter equipped with ExactRate system

The ExactRate fluid transfer system pairs planters seamlessly with the ExactRate tractor tanks. It provides an easy connection point to allow transfer from the ExactRate tractor tanks back to the planter tank. This enables up 6056 L (1600 gal.)* of combined capacity between the tractor and planter tanks.



  • Factory installed
  • Designed and tested by John Deere to ensure the lines won’t pinch when folding
  • Easily attaches to the ExactRate tractor tanks



ExactRate is available on the following models: 1775NT, 1795, DB44, DB60, and DB66.



*NOTE: 6056 L (1600 gal.) assumes a 2271-L (600-gal.) tank on a 24-Row 1775NT Planter as well as the 3785-L (1000-gal.) capacity on the 8RX Tractor.

24-row 1775NT Planter equipped with ExactRate fluid transfer system 24-row 1775NT Planter equipped with ExactRate fluid transfer system
Easily carry fluid on the planter with liquid tanks
Liquid tank mounted on a 24-row 1775NT Planter Liquid tank mounted on a 24-row 1775NT Planter

John Deere factory-installed liquid tanks offer a convenient way to carry fluid on the planter frame. Styling cues match the CCS™ system tanks, and all brackets and mountings are 100 percent factory installed.



  • Factory installed
  • Up to 2271 L (600 gal.) of fluid capacity
  • Clear sight tube to check fluid level
  • Air bleed and overflow protection
Liquid Tank mounted to a 24-row 1775NT Planter Liquid Tank mounted to a 24-row 1775NT Planter
Decrease ground pressure with factory-installed tracks for 1775NT Planters
John Deere factory-installed tracks on a 24-row 1775NT Planter John Deere factory-installed tracks on a 24-row 1775NT Planter

Alleviate the ground pressure in your center section with John Deere factory-installed tracks. The tracks offer a larger footprint to allow for less compaction and better flotation.



  • 91.7-kPa (13.3-psi) ground pressure (based on weight distribution of a fully ballasted 24-row 1775NT Planter over track flat plate area)
  • 32.2-km/h (20-mph) transport speed
  • Half-full carrying capacity during transport on a 24-row 1775NT Planter
  • 100 percent factory installed



NOTE: Factory-installed tracks are only available on the 1775NT Planters.



These factory-installed tracks increase the planter’s flat plate area from 722.6 cm2 to 2683.9 cm2 (112 sq in. to 416 sq in.), which leads to reduced compaction in the planter’s center rows. When paired with the four tracks on the 8RX Tractor, the full solution provides just 103.4 kPa (15 psi) to the ground.



NOTE: Transport duration, carrying capacity, and transport speed assumes the planter is being pulled behind an 8RX with 61-cm (24-in.) belts. See the tractor/planter Operator’s Manual for additional transport restrictions and information.



Tracks are also available as an aftermarket attachment on 1775NT 12-row, 16-row, or 24-row hydraulic drive and electric drive planters.



Key benefits include:

  • Reduced compaction in the planter’s center rows
  • Better flotation
  • Low maintenance, since all joints on the tracks are lubricated for life
  • Increased transport speeds (32.2 km/h [20 mph]) and cylinder walking features available when installed on model year 2022 electric drive planters



Compatibility:

  • All 1775NT 12-row, 16-row, and 24-row electric drive and variable rate drive machines
  • All 1770NT 12-row, 16-row, and 24-row electric drive and variable rate drive machines
  • Kits are not compatible with ground drive planters (and/or ground drive attachments)
24-row 1775NT Planter on tracks being pulled by an 8410RX model 24-row 1775NT Planter on tracks being pulled by an 8410RX model
Increase visibility at night with light-emitting diode (LED) lighting package
LED light on stairs to the CCS™ system platform LED light on stairs to the CCS™ system platform

As planting windows get tighter, many growers are working longer hours to get the seed in the ground. With the planter LED lighting package, John Deere delivers better visibility when planting a night.



  • Four additional LED lights
  • Improves visibility when planting at night
  • Illuminates row-units when servicing at night
  • Turns on when tractor lights are engaged
Precise liquid fertilizer placement with ExactRate™ fertilizer system
ExactRate pump assembly at rear of 12-row 1775NT ExactRate pump assembly at rear of 12-row 1775NT

The ExactRate liquid fertilizer system is a factory-installed solution that provides you with accurate nutrient placement during planting. Previously, you would have to deal with the inconvenience of cumbersome aftermarket systems for a hydraulically driven variable-rate solution. With ExactRate, John Deere delivers a complete planting solution for liquid fertilizer users. You can choose between in-furrow or offset delivery methods. A high-rate option without openers is also offered from the factory. This system delivers:



  • Up to 20 percent more accurate nutrient placement in a turn compared to a non-turn compensating system
  • 1 to 12 percent (4.3 percent on average) reduction in inputs through row-by-row section control
  • Ability to run up to 16.1 km/h (10 mph)
  • Closed-loop speed and rate change compensation
  • Full integration into the 4600 CommandCenter™ and 4640 Universal Display
ExactRate nozzle body ExactRate nozzle body

The ExactRate liquid fertilizer system is designed to take full advantage of the capabilities of ExactEmerge™ and MaxEmerge™ 5e planters. This factory-installed liquid fertilizer system delivers the same value as your electric drive planter including working at speeds faster than the traditional 8.05 km/h (5 mph), turn compensation, and row-by-row section control, all while accurately compensating for varying rates and speed changes. Additional features include row-by-row flow detection, as-applied documentation, and variable-rate capabilities, providing operators full integration into the 4600 CommandCenter or 4640 Universal Display.



Fertilizer flows from the tank to the pump, through a strainer and boom isolation valve, through a central flowmeter, and out to each nozzle body and row-unit for accurate delivery. The system is closed loop, meaning the pump and nozzle body duty cycle both adjust based on feedback received from the pressure sensor and central flowmeter. This design helps maintain an accurate application rate.



NOTE: ExactRate is not recommended for products that require agitation to maintain suspension.

Pump
Pump assembly at rear of planter Pump assembly at rear of planter

Instead of a tire-contact drive, a hydraulically driven centrifugal pump eliminates chain and sprocket adjustments to provide more speed flexibility over the entire rate range. This pump allows for a wide range of rate capabilities as well as strong durability. The wet seal design helps protect the pump if it is accidentally run dry for a short time.

Strainer

A strainer helps collect suspended particles and prevent them from causing blockages in the distribution system and nozzle bodies.

Boom isolation valve

The valve prevents the tank from draining out if there is a leak in the distribution system. If the pump is on, the valve opens to allow flow. When the pump is off, the valve closes.

Central flowmeter and pump pressure sensor

The central flowmeter and pump pressure sensor provide the rate control system feedback on flow and pressure to ensure an accurate application rate across the entire planter width. The flowmeter also supplies the as-applied rate data.

Direct injection

The ExactRate liquid fertilizer system does not have direct injection capabilities on the product being applied. If direct injection is needed on the secondary product, an additional rate controller is required.



NOTE: ExactRate system and John Deere Rate Controller 2000 with Raven ICD Direct Injection system is supported. ExactRate system and GreenStar Rate Controller with Raven ISO Direct Injection system is not supported.

Distribution system and nozzle body
Distribution system and nozzle bodies routed on the wing of a 12-row 1775NT Distribution system and nozzle bodies routed on the wing of a 12-row 1775NT

The 2.5-cm (1-in.) stainless-steel distribution lines not only reduce corrosion, but they also provide a clean integrated look.  The distribution system is pressure tested at the factory to reduce the risk of leaks.



John Deere has leveraged ExactApply™ technology and capabilities from the sprayers to enable row-by-row section control and turn compensation that matches the high-performance planters. With ExactRate, there are no orifice changes for rate or speed adjustments, saving you time and effort while limiting exposure to product. Pulse-width modulation technology varies duty cycle (opening and closing of the valve) in the nozzle bodies in conjunction with flow and pressure measured from central flowmeter and pressure sensor controlling the system pump. The ExactRate liquid fertilizer system uses one nozzle body for two rows, limiting the number of parts and complexity on each machine. While you’re in the cab, you can keep an eye on each row with flow detection integrated into the Gen 4 display. The system warns you if it detects a variance in an individual row’s flow. A pressure sensor integrated into the nozzle body will detect a flow reduction or overapplication on the row.

Keypad at rear of planter Keypad at rear of planter

Just like on the sprayers, the keypad at the rear of the machine lets you conveniently perform a nozzle flow check to ensure product is coming out of each row before going to the field.

Rate Controller

The ExactRate liquid fertilizer system is compatible with the John Deere Rate Controller 2000 and GreenStar™ Rate Controller if a producer wants to apply a second product using a separate distribution system.

ExactRate app on Gen 4

Easily adjust target rate and speed without leaving your seat. With turn compensation, inner and outer rates are automatically adjusted to maintain consistent application across the full width of the planter. This ultimately reduces the risk of seed burn by over application (turn compensations require a global positioning system [GPS] receiver). Another helpful feature is row-by-row section control for reduced overlap on headlands and waterways. Gen 4 Documentation creates as-applied maps showing what product was applied where, providing accurate record-keeping.

SeedStar™ 4HP monitoring system – see speed meet accuracy in real time

Have you wanted to view more than one planter chart at once? SeedStar 4HP gives you multiple views and configurations in one simple overview page to fit your preferences. You can complete the simplified setup from the Work Setup page instead of having multiple applications to open.



SeedStar 4HP is designed to optimize the in-cab monitoring experience exclusively on the Gen 4 4600 CommandCenter™ display or 4640 Universal Display for growers with ExactEmerge™ planters and MaxEmerge™ 5e planters. With SeedStar 4HP, operators will easily see key planter information with customizable run pages, zoom functionality, and simultaneous graph and performance measurements. SeedStar 4HP is included in base on all model year 2018 ExactEmerge and MaxEmerge 5e planters.



Features overview:

  • View multiple planters' at-a-glance bar charts simultaneously
  • Three default planter run pages show key planter functions in easy-to-view layouts
  • Highly configurable run pages allow SeedStar modules to be customizable
  • Zoom feature allows quick row-by-row detailed information
  • View dual bar graphs to see multiple planter details at one time
  • SeedStar application to make adjustments to planter functions
  • Simplified setup through the work set-up page
  • Advanced rates allow up to six different rates across 48 rows
  • The SeedStar 4HP monitoring system requires the Gen 4 4600 CommandCenter or 4640 Universal Display. These displays allow the operator to benefit from the updated interface, enhanced processing speeds, and easy setup (learn more in the Gen 4 CommandCenter feature).



SeedStar 3 HP conversion to SeedStar 4HP with mobile row-unit runoff aftermarket for field conversion kits



Growers who are currently running model year 2017 planters, model year 2017 and newer Precision Upgrades, or model year 2017 and newer custom-built planters with the SeedStar 3 HP monitoring system can upgrade to the SeedStar 4HP monitoring system with mobile row-unit runoff. The attachment part, AA100382, is software only. The Gen 4 display software version will need to be 19-1 or newer and will require planter apps. Follow the mobile runoff ordering and software push guide below for ordering and installation. Retrofitted planters and custom-built planters will also require the John Deere Connect Mobile kit, 0048PC, from the Precision Ag Technology Price Pages and wiring harness AA83662 to enable the mobile row-unit runoff feature. Please reference Parts Advisor and DTAC Solution 105181 for model-specific mounting brackets. SeedStar 4HP requires the Gen 4 4600 CommandCenter v2 display or 4640 Universal Display.

Default planter run pages
Planter summary default run page Planter summary default run page
Planter overview default run page Planter overview default run page
Planter details default run page Planter details default run page

Three default run pages show key planter functions in different views to give fast and easy access to important planter information.

Custom run pages
Customizable run pages Customizable run pages

There are customizable run pages that allow the operator to build pages that fit their operation with different modules, like the example shown above.

Zoom functionality
Zoom feature showing a group of rows Zoom feature showing a group of rows
Zoom feature showing a single row Zoom feature showing a single row

The zoom feature allows the operator to touch a section or row of the planter and get detailed information quickly.

Dual bar graphs
Dual bar graph showing singulation and population simultaneously Dual bar graph showing singulation and population simultaneously

Dual bar graphs allow operators to view multiple planter details at one time.

SeedStar application page
SeedStar application run page SeedStar application run page

In the SeedStar application, many adjustments can be made, including manually activating section control. SeedStar 4HP allows up to 48 individual row sections. There are several setup features such as crop, seed disk, number of rows being planted, population alarms, and limits. Seed rates can be modified, electric power generation (EPG) can be turned on or off, vacuum can be adjusted, and the fill and purge functions can be used from the SeedStar application. Frame control, as well as diagnostics and calibrations, can be accessed at the bottom of the screen.

Settings Manager in SeedStar 4HP
Access Settings Manager on the Work Setup screen Access Settings Manager on the Work Setup screen
Settings Manager screen Settings Manager screen

Reduce set-up time between changing crops or field conditions by recalling saved settings used previously with Settings Manager, included with every SeedStar 4HP system. This feature allows saving and recalling planter and tractor settings for optimum performance in different conditions.



Settings Manager can be used to save all the adjustment and inputs associated to a particular crop or condition. An example would be to store all population rates, downforce pressure, row cleaner adjustments, and closing wheel settings for planting corn and storing a separate, unique set of adjustments for soybeans. In addition, Settings Manager stores tractor settings such as selective control valve (SCV) flow and detents, infinitely variable transmission (IVT™) settings, eco modes, and more.

Custom rates in SeedStar 4HP
Variety set-up page Variety set-up page
Rate set-up page Rate set-up page
Group rate set-up page Group rate set-up page

Custom rates allow for individual row population control and row-by-row documentation where up to six different rates can be assigned across an up to 48-row planter. This allows growers interested in planting seed corn with ExactEmerge or MaxEmerge 5e the capability to assign specific populations to male and female rows for planting. This feature can also be used to create tram lines or other applications where custom rates by row are needed.



NOTE: Individual rates are tied to varieties, so each individual rate needs a unique variety name.

NOTE: Advanced rates are not compatible with prescriptions or they cannot be run at the same time.

Additional information

For additional information on feature functionality on the Gen 4 Display, visit the links below:

YouTube is a trademark of Google LLC.

Compatibility
 SeedStar 4HP compatibility
Planters

All models ordered with ExactEmerge or MaxEmerge 5e row-units

NOTE: Precision Upgrades are equipped with SeedStar 3HP only but can be upgraded by purchasing part number AA100382.

Displays

Gen 4 4600 CommandCenter equipped with Version 2 Processor or 4640 Universal Display

Dual-display mode is compatible with mid model year 2019 planter software.

John Deere Active Implement Guidance™Compatible with SeedStar 4HP on Gen 4 displays with VT mode and required activations and subscriptions
AutoTrac™ Implement GuidanceSeedStar 4HP is compatible with AutoTrac Turn Automation and AutoTrac Implement Guidance; not compatible with greater than 48 row electric drive planters.
AutoTrac Turn AutomationSeedStar 4HP is compatible with AutoTrac Turn Automation and AutoTrac Implement Guidance; not compatible with greater than 48 row electric drive planters.
Easy Fold

Easy Fold is a feature of SeedStar™ 4HP for MaxEmerge™ 5e row-units and ExactEmerge™ row-units equipped on 1775NT and 1795 Planters with a 2-point hitch or DB Planters. This integrated solution replaces the frame-folding box like the manual fold option in SeedStar 3 HP, and it has enhanced the process by controlling and automating the selective control valves (SCVs).



The one-operation fold reduces the need for training inexperienced operators by sequencing the process correctly and reduces time spent folding and unfolding. By utilizing implement automation, the hitch will be controlled by the planter during the fold cycle. Lining up the draft tube to the wing hooks is automated through this process, reducing operator tasks. On DB models, Easy Fold simplifies the folding process functions to one SCV. A manual process is available when needed.



A manual fold option is available from the frame control page on the display for non-compatible or non-equipped tractors or planters. The manual control function is accessible from each step of the Easy Fold process, as shown below.

Manual control option on SeedStar 4HP Manual control option on SeedStar 4HP
Start screen for Easy Fold Start screen for Easy Fold
Screen with Easy Fold enabled Screen with Easy Fold enabled
Screen with Easy Fold in process Screen with Easy Fold in process
Easy Fold completed screen Easy Fold completed screen
Easy Fold compatibility
Tractors
  • Model year 2011 and newer 8R and 8RT Tractors
  • Model year 2012 and newer 7R, 9R, 9RT, and 9RX Tractors
  • Model year 2016 and newer 6R Series Tractors
Activation2-point hitch equipped planters with Easy Fold require Tractor Implement Automation activation available from the StellarSupport™ portal. This activation is tractor PIN specific and non-transferable. Included in base on model year 2018 compatible tractors. See instructions below.
Planters1775NT and 1795 with 2-point hitch and DB Planters, equipped with ExactEmerge or MaxEmerge 5e row-units
DisplayGen 4 4600 CommandCenter™ Display  or 4640 Universal Display

NOTE: Included in base with ExactEmerge equipped compatible planters. Optional equipment on MaxEmerge 5e equipped compatible planters.



Tractor Implement Automation activation instructions



Use these instructions to download the Tractor Implement Automation activation code at no cost.

  1. Go to https://www.deere.com/en/stellarsupport/
  2. Click Product Activation.
  3. Select Tractor Automation – Manage Product.
  4. Add or select existing tractor from list.
  5. Select the Activate button.
  6. Select Add Manufacturers drop down menu.
  7. Select Tractor Implement Automation – John Deere.
  8. Select Continue – Tractor Implement Automation – John Deere selected.
  9. Accept the Terms and Conditions.
  10. Select Finish.
  11. Take note of the code for use display.
  12. On the Gen 4 4600 CommandCenter Display or 4640 Universal Display select System, Software Manager.
  13. Select Activations, then Enter Code from John Deere Stellar Support.
  14. Enter activation code into the display in the tractor.
  15. Press next after activating Tractor Implement Automation.
  16. Take note of the activation code and press OK.
  17. The Tractor Implement Automation activation will appear the Software Manager screen.

NOTE: Prior to the 18.1 software release, the activation will be shown as “Unknown Implement 1” with a baler icon.



YouTube is a trademark of Google LLC.

Mobile row-unit runoff
Row Runoff diagnostic test Row Runoff diagnostic test
The test functions from a mobile device The test functions from a mobile device
Determine optimum settings without being in the cab Determine optimum settings without being in the cab

The first day of planting season can be as productive as the last with mobile row-unit runoff. The mobile row-unit runoff activation on the planter main controller (PMC) allows operators to make adjustments to maximize row-unit performance from a mobile device at the rear of the planter for both preseason and in-season use - all enabled through the Equipment Mobile app.



Mobile row-unit runoff allows growers to perform test-stand functions from a mobile device connected to the planter.



The row runoff test provides complete diagnostic checks both preseason and in season. With the row-unit runoff test, the operator can make adjustments from the mobile device, including vacuum pressure, to determine the optimum meter and vacuum settings. This app functionality will help avoid making trips to the cab while validating meter performance.



During preseason planter inspections and set up, utilize the meter performance test to validate meter accuracy, similar to a test stand without leaving the farm. Test all systems on the planter, not just the meter, providing confidence that all planter systems are ready to plant. Reports are generated from the test providing information the operator can save and send for future reference.



Before heading to the field, the operator will benefit from knowing the best row-unit and vacuum settings for each variety selected to plant that spring.



See mobile row-unit runoff in action by watching the "How to Use Mobile Row-Unit Runoff" video.



Mobile row-unit runoff will work with any model year 2015 or newer ExactEmerge™ or MaxEmerge™ 5e equipped planter. Mobile row-unit runoff can be added with attachment AA93169.



For model year 2018 and newer ExactEmerge planters, mobile row-unit runoff is included in base equipment. For model year 2020 and newer MaxEmerge 5e planters, mobile row-unit runoff is included in base equipment. For planters not equipped from the factory, mobile row-unit runoff can be added with attachment AA93169. A mobile row-unit runoff and Easy Fold package can be added with attachment AA97849 (only available with 1775NT and 1795 Planters with a 2-point hitch and model year 2019 and newer DB Planters with Gen 4 based frame folding).



NOTE: Mobile runoff utilizes the Equipment Mobile app available on select iPad® tablets, iPhone® smartphones, and Android™ devices.



Mobile row-unit runoff and Easy Fold aftermarket for field conversion kits



The below software bundles include the functionality explained above for machines not ordered with the feature from the factory. Compatible machines include all the necessary sensors and harnesses needed to make the feature function. The attachment part is software only. Follow the mobile runoff ordering and software push guide below for ordering and installation.



SeedStar™ 3 HP conversion to SeedStar 4HP

Mobile runoff ordering and software push guide



iPad and iPhone are trademarks of Apple Inc. Android is a trademark of Google LLC.

Downforce system options
Individual Row Hydraulic Downforce (IRHD)
IRHD system IRHD system

IRHD has been specifically designed to meet the needs of producers that are looking to adjust to the toughest field conditions and provide maximum yield potential from field to field, season after season. IRHD works as a closed-loop downforce system that reacts quickly on an individual row basis to changing soil conditions supporting increased ground contact, which can lead to improved seed depth consistency. When setting planter downforce margin, the system will apply the needed downforce by row to maintain ground contact. From the factory, the margin will be set at 45.4 kg (100 lb), changes may be required based on varying field conditions.

The system allows operators to maintain gauge wheel ground contact leading to desired seed depth placement. IRHD can adjust five times per second and make adjustments of 45.4 kg (100 lb) in less than a second. The system has a total range of applied downforce from 22.7 kg (50 lb) to 204.1 kg (450 lb) and utilizes the power beyond circuit on the tractor. IRHD is 58 percent faster than the active pneumatic downforce solution. Fast reaction and increased ground contact can lead to improved emergence. With uniform emergence, some studies have shown a yield impact from 5 percent to 9 percent.

IRHD is controlled through the display with SeedStar™ 3 HP or SeedStar 4HP. As shown below, operators can view ground contact or applied downforce using the toggle button.

IRHD screen showing the ground contact graph through SeedStar 4HP IRHD screen showing the ground contact graph through SeedStar 4HP
IRHD screen showing the applied downforce graph with SeedStar 4HP IRHD screen showing the applied downforce graph with SeedStar 4HP
Hydraulically driven compressor
Pneumatic valve Pneumatic valve

The hydraulically driven air compressor can deliver up to eight times the air flow when compared to the electric compressor, allowing for more and faster downforce changes to be made. This more robust design features a 37.8-L (10-gal.) storage tank across all models with active downforce.


At approximately 15.1 L/min (4 gpm), hydraulic demands are low and ties into the machine’s lift and Central Commodity System (CCS™) hydraulic circuit so it does not require any additional selective control valves (SCVs). The SeedStar XP, SeedStar 3 HP, and SeedStar 4 HP monitoring systems work with the compressor. SeedStar 3 HP and SeedStar 4 HP monitoring systems work with the compressor and valve assembly to regulate air to downforce springs, enabling the active control, pneumatic closing wheels, and pneumatic row cleaners.

Row-unit downforce planter run page
SeedStar XP downforce planter run page SeedStar XP downforce planter run page

Active downforce control is integrated into SeedStar XP, SeedStar 3 HP, and SeedStar 4 HP monitoring systems.



Margin is the amount of weight riding on the depth gauge wheels that ensures desired firming of the seedbed as set by the operator.



Once a target margin has been defined, enter the value into the display and let active downforce do the rest. The system will actively adjust the air pressure in the air bags to maintain a constant margin across the planter. The changes in air pressure will change the amount of downforce placed on the row-unit, compensating and reacting for varying conditions through the field whether it is different tillage practices, soil types, or moisture.

Downforce and margin example Downforce and margin example
  • A - Margin – amount of additional downforce applied to a row-unit above and beyond what is required for penetration to achieve planting depth. This additional weight will ride on the depth gauge wheels.
    • 54.4 kg (120 lb) + 36.3 kg (80 lb) = 90.7 kg (200 lb) – 68 kg (150 lb) = 22.7 kg (50 lb) of margin
  • B - Weight of row-unit - 54.4 kg (120 lb)
  • C - Downforce – force that is applied to the row-unit by the air bag circuit - 36.3 kg (80 lb)
  • D - Resistance from soil - 68 kg (150 lb)



Margin video references:

Understanding Margin

Using Set Point downforce

Using Active Pneumatic downforce

SeedStar 4HP: Downforce

Pneumatic downforce spring Pneumatic downforce spring

Each row-unit has a single rubber air bag located between the parallel arms. The air bags are hooked in parallel so that air can be added or released from all rows at once from one location.



The individual pneumatic downforce air bag assemblies, air compressor units, and 9.5-mm (3/8-in.) delivery lines are also available as an attachment for field conversion.

Active downforce compressor assembly Active downforce compressor assembly

A hydraulically driven compressor works with the SeedStar XP, SeedStar 3 HP, and SeedStar 4 systems to automate downforce control. Just set the row-unit target margin value and the active pneumatic downforce system works automatically. The system will make sure the planter maintains this value, achieving precise soil penetration, and consistent planting depth, without sidewall soil compaction. From the factory, the system is set at 45.4 kg (100 lb) target downforce margin but may be modified for varying field conditions. This frees the operator from constantly making manual downforce adjustments as conditions change.



Active pneumatic downforce is available as factory installed or as an attachment for field conversion.

Set point row-unit downforce
Pneumatic downforce control in GreenStar 2 Display Pneumatic downforce control in GreenStar 2 Display
Air compressor mounted on 1775NT outer hitch Air compressor mounted on 1775NT outer hitch

On set point, the air compressor will be mounted on the outer hitch or frame assembly. Since the electric air compressor assembly is mounted on the outer hitch (as noted in the picture above) or frame, adjustments for row-unit downforce and related system pressures will be made electronically with the GreenStar display.



When adjusting the amount of row-unit downforce using the GreenStar display, the operator will select the amount of downforce (kg [lb]) to be applied across the planter. Depending on the soil conditions at hand, the operator might need to adjust the relative amount of row-unit downforce being applied during the planting operation. The integrated pneumatic downforce controls within the GreenStar display will only allow for set-point operation and not automatic control as the planter is operating in different soil conditions. The pneumatic downforce system does not have the capability to automatically adjust downforce.

Pneumatic downforce provides convenient, simple adjustment of downforce for the whole planter from one location. The amount of downforce applied is infinitely adjustable from 6.8 to 181.4 kg (15 to 400 lb). Pneumatic downforce provides more consistent downforce throughout the range of row-unit travel than mechanical spring downforce systems.

Features include:

  • 9.5-mm (3/8-in.) air delivery line instead of the 6.4-mm (1/4-in.) line used on model year 2010 and older planters.
  • Air compressor assembly increased duty cycle. With this compressor, it provides a 47 percent increase in maximum air flow delivery compared to the prior air compressor.
  • Pneumatic air bags with 9.5-mm (3/8-in.) air line inlets that have greater durability.
Pneumatic downforce compressor and gauge Pneumatic downforce compressor and gauge

An improved compressor is used to charge the pneumatic system. This compressor can be located on the planter frame or in the tractor cab if desired. A gauge at the compressor indicates the amount of downforce being applied.

Integrated pneumatic downforce system

The functional features of the integrated system are the same as the standard pneumatic system, explained above, with the addition of control through the GreenStar display.

Heavy-duty adjustable downforce springs
Heavy-duty adjustable downforce spring Heavy-duty adjustable downforce spring

Planter row-unit downforce is an important factor to ensure consistent and proper depth control. The heavy-duty adjustable downforce feature provides up to 181.4 kg (400 lb) of downforce. There are four settings available to allow the operator to choose the amount of downforce required for the condition: 0 kg (0 lb), 56.7 kg (125 lb), 113.4 kg (250 lb), and 181.4 kg (400 lb).

Easy Adjust row cleaners
Coulter combo row cleaner Coulter combo row cleaner
Easy Adjust row cleaner Easy Adjust row cleaner

Easy Adjust row cleaner and coulter combo provides a pneumatic row tillage solution that is controlled from the seat of the tractor.



Every decision to make an adjustment during spring planting reduces the acres planted per day and can increase or decrease profitability. An adjustment that can be overlooked is row cleaners due to planter size, difficulty to make the adjustment, and varying conditions across fields and time.

GreenStar™ 3 2630 Display view for row cleaners compatible with SeedStar™ 3 HP GreenStar™ 3 2630 Display view for row cleaners compatible with SeedStar™ 3 HP
4600 CommandCenter™ Display and 4640 Universal Display view for row cleaners compatible with SeedStar 4HP 4600 CommandCenter™ Display and 4640 Universal Display view for row cleaners compatible with SeedStar 4HP

With the Easy Adjust row cleaners on ExactEmerge™ planters, operators now have a pneumatic solution to make on-the-go adjustments that is controlled directly from the seat of the cab. They can be raised from the cab as needed with the push of a button for wet areas, waterways, or end rows. For growers using SeedStar 3 HP, the row cleaners are completely integrated into the John Deere GreenStar 3 2630 Display as well as the Gen 4 4600 CommandCenter display or 4640 Universal Display. For growers using SeedStar 4HP, a 4600 CommandCenter display or 4640 Universal Display is required.

The Easy Adjust row cleaners have the capability to save three presets for varying ground engagement based on field conditions. The system is controlled in three sections: at each wing as well as the center (frame or wheel) track rows. The pneumatic lines use air from the active pneumatic downforce compressor, requiring no additional compressor to be installed on the planter. The Easy Adjust row cleaners utilize down and up force air bags. The adjustable air pressure setting for each bag allows the operator to set the ride of the row cleaner depending on the field conditions and the desired results. Making these on-the-go adjustments from tractor cab increases productivity and performance during planting.

For Easy Adjust row cleaner Precision Upgrade options, see the ordering guide.

The row cleaner-only option utilizes parallel linkage to provide the floating action growers require in their fields. Parallel linkage allows for the unit to float up and down in the situation of hills or hard objects. The cleaner and coulter combo does not have parallel linkage, however, the row cleaners have floating rings installed to help provide the same benefits.

The row cleaners utilize the field-proven SharkTooth® design. Row cleaners play a major role in maximizing yield toward uniform emergence, reducing row-unit bounce, and maintaining proper depth. The Easy Adjust row cleaners provide growers with quick and stress-free solutions to customizing the planter in variable field conditions. They are available on most ExactEmerge and MaxEmerge 5e equipped planters.

SharkTooth is a trademark of Yetter Manufacturing Incorporated.

Vacuum automation
Vacuum automation screen Vacuum automation screen

Vacuum control has been defined. Before vacuum automation, an operator set the vacuum level by adjusting the hydraulic flow through each selective control valve (SCV). Many variables altered the vacuum level while the hydraulic flow stayed constant. This could have resulted in under or over populating, which may have impacted singulation. With vacuum automation, all that needs to be done is set the desired vacuum level and let the monitor do the work of adjusting the hydraulic flow. Should vacuum changes occur, the software in the monitor will fluctuate the SCV flow to achieve the desired vacuum level.



Vacuum automation requires SeedStar™ 3 or 4HP monitoring. The system controls SCV flow based on the vacuum pressure sensor. The tractor must be a John Deere with Tractor Electronic Control Unit (TECU) 3 controller area network (CAN) system for this feature to be compatible. The vacuum automation feature will control all vacuum fans if they are on their own SCVs. More vacuum fans make the planter more valuable and easier to operate.



Vacuum automation is not compatible with Interim Tier 4 (IT4) 6R Series Tractors.



Vacuum automation works with MaxEmerge™ 5e and ExactEmerge™ planting technologies. It’s available on Deere models as well as select DB models.

RowCommand™ individual-row control system
RowCommand controls seed output
RowCommand on a MaxEmerge™ 5 row-unit RowCommand on a MaxEmerge™ 5 row-unit
RowCommand on a chain drive MaxEmerge 5 row-unit RowCommand on a chain drive MaxEmerge 5 row-unit

Controlling input costs and improving productivity are key producer requirements today. RowCommand is an effective, integrated John Deere solution designed to meet these intensifying needs. The RowCommand system manages seed output, reduces yield drag, and improves harvest capabilities on all Pro-Shaft™ driven row-units, and chain-driven MaxEmerge 5.



NOTE: Chain-drive RowCommand is only compatible with planters equipped with pneumatic downforce systems. On planters equipped with the heavy-duty downforce springs, potential chain interference may result and is not recommended.



NOTE: Chain-drive RowCommand requires some modification to brackets in order to function with corn finger pickup meters.



NOTE: Pro-Shaft drive RowCommand is compatible on MaxEmerge 5 row-units with vacuum and corn finger pickup meters. For mini-hopper row-units, RowCommand is compatible on vacuum meters only and is not compatible on corn finger pickup meters. Pro-Series™ XP row-units with corn finger pickup meters are not compatible with RowCommand.



RowCommand controls seed output by incorporating individual, low amperage clutches inside the Pro-Shaft and chain-driven gearboxes. Clutches are completely enclosed within the gearbox housing to protect them from the elements and harsh operating conditions.



When power is supplied, either manually or through John Deere Section Control software, clutches disengage the seed meters and seed flow stops. Controlling seed output at individual rows reduces overplanting in point rows and maximizes seed placement when entering/exiting headlands.

Components and operation
Electronic power modules shown on a 1775NT Planter Electronic power modules shown on a 1775NT Planter
RowCommand clutch on MaxEmerge 5 with 105.7-L (3-bu) hopper RowCommand clutch on MaxEmerge 5 with 105.7-L (3-bu) hopper

RowCommand is a simple and efficient solution to control individual row planting. This system does not utilize air to operate; therefore, no compressor, air lines, or valve modules are required.



RowCommand utilizes low-voltage controller area network (CAN) messaging to signal power to the desired clutches to stop planting or eliminates power to resume planting.



This means very little power is used in normal planting conditions, and in the event a clutch fails electrically, the meter will continue to plant.

The RowCommand system requires the following five basic components to operate:

  • Electric clutches
  • Electronic power modules (EPMs)
  • SeedStar™ 2 or XP monitoring (wedge box/controller)
  • GreenStar™ display
  • Planter wiring harnesses

Clutches are protected within the sealed Pro-Shaft and chain-driven gearboxes for years of trouble-free operation and simple installation or removal. RowCommand has true individual-row control of up to 16 clutches or sections for planters larger than 16 rows.



Unique to RowCommand, the 16 available control sections can be configured based on operator preferences. For example, on a 1775NT 24-Row Planter, every two rows can be paired together for a total of 12 control sections or control the outermost eight rows individually and the remaining inner rows paired together for 16 control sections.



While SeedStar with RowCommand has 16 control sections, a minimum of 152.4-cm (60-in.) wide sections are recommended for optimum Swath Control Pro™ solution capabilities. As with other Swath Control Pro products, an SF2 signal is the minimum level of accuracy recommend for operation.

Chain-drive RowCommand and heavy-duty downforce
Chain interference with heavy-duty downforce Chain interference with heavy-duty downforce

As seen in the image, chain interference may result when operating chain-drive RowCommand on planters equipped with short and long parallel arms and heavy-duty downforce springs.



NOTE: Chain-drive RowCommand is only compatible with planters equipped with pneumatic downforce systems. On planters equipped with the heavy-duty downforce springs, potential chain interference may result and is not recommended.



System requirements

RowCommand is a simple and efficient means to control individual row planting using low-voltage electric clutches. When activated, each clutch consumes no more than 0.5 amps. By design, power is only supplied to the clutch when a signal is received to stop planting. In a normal planting condition, no power is supplied, and the clutch is de-energized.



Power for the RowCommand system is provided from the nine-pin ISO implement connector. All late-model 8X00 and 9X00 Series and newer John Deere Tractors equipped with the nine-pin ISO implement connector can supply ample power for system operation.



Along with ample system power, a GreenStar display and SeedStar monitoring are required for operation and control interface. The GreenStar display is where system setup, control settings, and manual control functions are performed.

Chain-drive RowCommand with corn finger pickup meters
Bracket material removal Bracket material removal

Due to the design characteristics of the chain-drive RowCommand clutch, some modification to the corn finger pickup meter drive bracket is required. As seen in the image above, some material needs to be removed from the front of the meter drive bracket in order for the chain-drive RowCommand clutch to have sufficient space for installation.



NOTE: Chain-drive RowCommand requires some modification to brackets in order to function with corn finger pickup meters.

RowCommand ordering information

To add RowCommand to a model year 2009 and newer planter model listed above is simple. Pro-Shaft drive attachments for field conversion and chain-drive attachments for field conversion are available by planter model to add the appropriate number of clutches, EPMs, brackets, hardware and row-unit harnesses. For complete installation and part detail for the RowCommand conversion, please use the RowCommand compatibility tool per specific planter model.

RowCommand is compatible and available for model year 2003 (serial number 700101) to 2008 (725101) planter models listed above. In addition to the attachment for field conversion attachment, a planter mainframe harness, SeedStar 2 controller (wedge box), and additional CAN harnesses are needed.

Integrated Section Control

Coupling RowCommand with Section Control provides the ultimate in precision planting and productivity. One company and one integrated solution are what John Deere offers by incorporating Section Control capabilities within the SeedStar 2 wedge box (controller). Unlike previous systems, no rate controller, additional harnessing, or components are required to achieve automated individual-row control.



SeedStar 2 and XP monitoring, RowCommand, and Section Control activation from John Deere Precision Ag Technologies are all that is needed when ordering.

Seed variable-rate drive (VRD) with half- or three-width disconnect
VRD shown on a 1775NT VRD shown on a 1775NT

The seed variable-rate drive provides the ultimate planting productivity by utilizing one, two or three hydraulic motors (varies by model) to turn the seeding drive shaft. Hydraulic control of the seeding drive allows for on-the-go seeding rate changes right from the display mounted inside the tractor cab.



Combine this seeding flexibility with the map-based planting option, and seeding rates adjust automatically based on a prescription map.



Single- or dual-motor systems for variable-rate drives are available for all John Deere planters except the 1785 Rigid Frame. Dual- or three-motor drive systems are commonly used on larger (12-row and more) planters and offer the capability of half-width or three-section drive disconnect.



The VRD is available as a factory-installed option for all applicable planter models. Single- or dual-motor systems are available as field-installed attachments for most planter models; however, a three-motor VRD field-installed attachment is not available.



The seed VRD requires the SeedStar™ monitor and a radar input signal. Either tractor or planter radar may be used. Planter radar is ordered separately.

VRD offers the following advantages over common, contact-tire drive systems:

  • Almost instantaneous rate changes – there is no ramp up or ramp down of system as in some competitive systems
  • Permits the operator to match seed population based on different soil types or irrigation practices
  • John Deere design that provides added operator safety by eliminating any possible drive creep found in some competitive variable rate drive systems
Half-width drive disconnect

The half-width drive disconnect feature is excellent for the producer concerned with controlling seed costs. This feature helps the operator place seed in the desired area and limit the amount of costly overlapped planting.



The half-width drive disconnect allows the operator to turn off half of the planter at a time for planting end rows, point rows, etc. Variable-rate-equipped planters require two drive motors to utilize the half-width disconnect feature.

Half-width drive disconnect within frame control Half-width drive disconnect within frame control

With a 1765, 1765NT, and 1775 12-Row Planter, a single switch box is required for planters that are ordered with variable rate drive and half-width disconnect.



For the 1775NT, 1775NT Central Commodity System (CCS™), and 1795 Front-Folding Planters, the half-width drive disconnect switch is contained within the frame control box, conveniently located in the tractor cab. The function easily shuts off the drive for the left or right half of the planter row-unit seed meters.

Three-width drive disconnect
Three-width drive disconnect control Three-width drive disconnect control

Three-width drive disconnect is an option on 1725 12-Row Planters and is base equipment on the 1725 16Row30 Planter. This feature is activated by three individual console mounted switches (control box), conveniently located in the tractor cab. The function easily shuts off the planter row-unit seed meters by one-, two-, or three-drive segments independently.

Row cleaner options to meet residue management needs

Crop yields have increased through the years along with the amount of residue left in the field after harvest. At the same time, tillage practices have changed, including different tillage operations which maintain large amounts of surface residue, and even no-till practices. Row cleaners are an essential tool in managing this increased amount of residue.



John Deere seeding group offers a variety of row cleaner options to meet the needs of a producer's operation. Compatibility varies by model, row spacing, and other planter equipment.

Screw-adjust, unit-mounted row cleaner
Screw-adjust, unit-mounted row cleaner Screw-adjust, unit-mounted row cleaner

The screw-adjust, unit-mounted row cleaner is mounted directly to the face plate of the row-unit, placing the ground engaging components just in front of the row-unit opener blades and depth gauge wheels. This close proximity allows the gauge wheels to control the depth of the row cleaner as well as the row-unit. This compact design also allows greater compatibility with fertilizer openers and other planter attachments.



SharkTooth® wheels are standard equipment on the unit-mounted row cleaner. The swept-tooth design of the wheel provides a clear path for the row-unit openers while resisting residue buildup on the wheel. The screw adjustment knob is accessible through the top of the parallel arms, providing convenient access for adjustments. The row cleaner can be adjusted in 1.6-mm (1/16-in.) increments, providing plenty of flexibility to meet the needs of changing conditions.

Floating row cleaner with unit-mounted coulter
Floating row cleaner with unit-mounted coulter Floating row cleaner with unit-mounted coulter

The floating row cleaner allows a row cleaner to be used in conjunction with a unit-mounted coulter. This combination is often desired in heavy residue loads and reduced tillage planting conditions. The row cleaner provides a clear path for the row-unit, while the unit-mounted coulter helps penetrate tough soil conditions.



Accommodating the unit-mounted coulter means the residue wheels are farther forward from the row-unit face plate than in the case of the screw-adjust row cleaner. To maintain performance, this row cleaner has the capability to float above a defined minimum depth.



Standard depth-gauging bands on the wheels allow the row cleaner wheels to float independently of the row-unit openers, allowing both to perform in varying terrain. The unit may also be set in a fixed position by simply pinning through the bracket if desired. This row cleaner also features SharkTooth wheels as standard equipment.



The floating row cleaner and unit-mounted coulters are available on many planters as factory-installed equipment.

NOTE: Screw-adjust row cleaners are not compatible with MaxEmerge™ 5e row-units with long parallel arms.



NOTE: DB models have the option for either unit-mounted coulter, screw-adjust row cleaners, or pneumatic row cleaners (only compatible with MaxEmerge 5e or equipped ExactEmerge™ models). The DB60T is only available with a less row cleaner option.



SharkTooth is a trademark of Yetter Manufacturing, Inc.

Increase productivity with ExactEmerge™ trench delivery system and BrushBelt™ delivery system

It is very challenging to get the crop planted during the optimum planting window or as close to the optimum planting day as possible. Rate-of-yield loss accelerates greatly after the optimum window has passed. This is especially true in the northern U.S. and Canada. ExactEmerge maintains accurate speed placement at higher speeds; growers can avoid missing that peak planting time, thereby helping to get the highest crop yields.

Yield loss after optimum planting day Yield loss after optimum planting day

With the BrushBelt trench delivery system, the spacing in the trench does not change from even to uneven terrain. This can be a problem with a traditional seed tube. Seed bounce and ricochet may occur as slopes increases, ultimately decreasing seed spacing performance.



The design of the BrushBelt system provides the best solution for the lowest release of seed to the bottom of the trench. The use of a brush provides the meter with an infinite amount of placement opportunities for each seed. This is what gives producers the confidence that every seed will have the desired spacing that a seed tube cannot provide.

Maintenance-free BrushBelt system Maintenance-free BrushBelt system

When the brush comes around the pulley, it expands and allows the seed to be transferred from the bowl to the brush very easily. The brush then carries the seed down toward the trench, ensuring that there is no movement as it moves down the length of the cartridge.

Once the brush reaches the lower pulley, the BrushBelt system expands again to loosen the grip on the seed, and the centrifugal force releases the seed. Another advantage with the BrushBelt system and cartridge at all speeds up to 16.1 km/p (10 mph) is the ability to match the seed rearward trajectory to the forward ground speed of the planter. This provides a dead drop of the seed with no bounce and no roll at the bottom of the trench.

BrushBelt conditioner engages brush bristles BrushBelt conditioner engages brush bristles

John Deere’s ExactEmerge cartridge is self-cleaning. When an operator uses seed treatments or is forced to plant in less than ideal soil conditions, the design of the trench delivery system sheds buildup from the BrushBelt. A brush conditioner is located at the bottom of the cartridge to remove remaining residue and prevent the bristles from sticking together.

Brush proximity helps clean sensor Brush proximity helps clean sensor

Another advantage over a seed tube is that the BrushBelt system also acts as a cleaner to the seed sensor compared to a seed tube.

Sensors for trench delivery system Sensors for trench delivery system
Reflective seed sensor Reflective seed sensor
Sensor on trench delivery system Sensor on trench delivery system

On all ExactEmerge row-units, each cartridge is equipped with sensors. As the seeds are being delivered through the BrushBelt delivery system controls, they pass the reflective seed sensor. The delivery system slides every seed past the seed sensor to read and send the signal to the controller. The seed sensor and design can provide sensor performance at higher seeds per second with no population adjustment as needed with seed tube sensors. This seed sensor data is actual row-unit performance data. In comparison, seed tube sensors add 10 percent population in soybean planting to adjust for the seeds missed due to placement within the seed tube. The BrushBelt system holds each seed in place until released in the trench, allowing the seed sensor a more accurate read.

BrushBelt removed from trench delivery system BrushBelt removed from trench delivery system

The BrushBelt system requires no maintenance and has a wear life designed to match the wear life of the other wear components. Since operations vary, as do soils and field content, it is recommended to replace the BrushBelt after noticeable wear or decreased performance.

Changing the belt is easy. One latch removes the meter over the trench delivery system. Grab the cartridge by the grip and pull toward the body, releasing it from the electric motor fitting. Lift the trench delivery system up and remove the sensor wiring harness to completely pull the cartridge out of the row-unit.

There are two plastic covers that snap off to uncover the belt; remove the covers and then twist the circular spring tensioner dial with the yellow arrow on it to release the tension on the springs. Once tension has been removed, pull the belt out. It is also recommended to change the stainless-steel wear strip at this time as well, which also slides right out of place without the use of tools.

NOTE: It is recommended to use a talc/graphite mixture with ExactEmerge. Best results have been 80 percent talc and 20 percent graphite. For certain regions and territories, talc and talc/graphite mixes are restricted from use; in this case, use a wax-based fluency agent.

Dual 56-V electric motors for ExactEmerge™ row-units
Two 56-V brushless electric motors Two 56-V brushless electric motors
Improve productivity with two 56-V brushless electric motors Improve productivity with two 56-V brushless electric motors

Two 56-V brushless electric motors provide ExactEmerge the upper hand over any other row-unit on the market. One motor controls the high-performance meter and the other powers the BrushBelt™ delivery system. Both feature a closed loop system ensuring they operate at the correct rpm.



The motor is controlled at a rate of 200 times per second and a decision is made every 5 milliseconds. The controller also keeps each motor operating at independent speeds of each other. The meter speed is determined by a combination of ground speed and desired population rate while the BrushBelt speed stays consistent with the forward ground speed of the planter in order to place the seed at the bottom of trench.

Brushless motors are maintenance free Brushless motors are maintenance free

Industry-proven 56-V brushless motors give confidence to the operator that the row-unit will perform in any condition. The advantage of 56-V over 24-V electric motors is a lower amperage draw.



Brushless motors are maintenance free and give the producer the most optimal solution to achieve the highest performance and the lowest amount of work to the planter.

Built-in RowCommand™ system Built-in RowCommand™ system

Manage seed output, reduce yield drag, and improve harvest capabilities are features built in to every ExactEmerge row-unit with electric motor shutoffs.



The electric drive version of RowCommand row-unit has the potential to get 2 to 8 percent reduction in seed usage from being able to control the meter and BrushBelt rather than a clutch disengaging and some seeds still falling down the seed tube.

Take planter monitoring to the next level with SeedStar™ 3 HP monitoring system
SeedStar 3 HP overview
SeedStar 3 HP shown on the GreenStar™ 3 2630 Display SeedStar 3 HP shown on the GreenStar™ 3 2630 Display

Building upon the foundation of previous SeedStar monitoring, the SeedStar 3 HP monitoring system takes planter monitoring to the next level. When paired with the GreenStar 3 2630 Display, the SeedStar 3 HP monitoring system provides critical information about the planting process to the operator within the tractor cab. SeedStar 3 HP is compatible with the GreenStar 3 2630, the Gen 4 4200 CommandCenter™ Display, the Gen 4 4600 CommandCenter Display, the 4240 Universal Display, and the 4640 Universal Display.



Detailed planter performance information allows the operator to make adjustments needed for planter optimization. After all, with rising costs, it is imperative to make sure that every seed is planted accurately and precisely within the seed furrow for maximum yield potential.



The SeedStar 3 HP planting functions are fully integrated with the full spectrum of Precision Ag Technology applications such as John Deere Section Control for Planters, GreenStar 3 2630 Display, AutoTrac™ assisted steering system, John Deere Operations Center, JDLink™ telematics system, and others. Integrated planting technologies, for better asset utilization and ease of use, is just part of what SeedStar 3 HP provides.

SeedStar 3 HP main run page
SeedStar 3 HP main run page SeedStar 3 HP main run page

SeedStar 3 HP has an updated main run page layout. With the use of tabs toward the top of the screen it is much easier to navigate through readings such as population, singulation, spacing, downforce, and ride quality. If for some reason an issue arises with a row-unit, the tab will turn red indicating there is an issue. The tab can be pushed and lead to what is causing the issue. Inside each tab, there will be a bar graph detailing information specific to that tab. The picture shows what a population bar graph looks like. This layout improves functionality and overall ease of use while planting.

SeedStar 3 HP seed singulation monitoring
SeedStar 3 HP seed singulation planter run page SeedStar 3 HP seed singulation planter run page

Understanding meter singulation performance on the planter is critical to minimizing the amount of seed multiples and skips. As a result, the SeedStar 3 HP monitoring system provides real-time information, from the redesigned seed sensors placed in each brush belt cartridge, about the overall seed singulation performance.

As seen in the screen shot image above, overall singulation performance is seen in the tab at the top of the screen. Seed skip and multiple sources of information are displayed below the bar graph of the run page. This provides the operator a better understanding of relative seed multiple and skip data on a row-unit basis within one easy glance at this run page.

Also, within the seed singulation planter run page, information about row-units with the highest percentage of seed multiples and skips is provided in order to make necessary adjustments for better planter optimization.

SeedStar 3 HP row-unit downforce planter run page
SeedStar 3 HP downforce planter run page SeedStar 3 HP downforce planter run page

With changing field conditions, it is important to monitor down force to ensure consistent seed placement. Seeds placed too shallow or too deep can impact emergence and affect yield.



With the SeedStar 3 HP monitoring system, row-unit downforce information is measured by the downforce sensor and sensor and transmitted to the GreenStar display in the tractor cab. The row-unit downforce information is displayed on the top portion of this run page with more row-unit downforce information on the lower portion.



Active downforce takes SeedStar 3 HP even further by removing constant downforce adjustments from the operator and actively controlling the downforce system to maintain a desired target margin. Just set the row-unit target margin value and the active downforce system works automatically to make sure the planter maintains this value-achieving, precise soil penetration and consistent planting depth without sidewall soil compaction. This frees the operator from constantly making manual downforce adjustments as conditions change.

SeedStar 3 HP ride quality and ground contact run page
SeedStar 3 HP ride quality and ground contact run page SeedStar 3 HP ride quality and ground contact run page

The fifth tab from the left in SeedStar 3 HP is a shared tab between ground contact and ride quality. Operators may change between the two criteria based on their planter setups or personal preferences. Ground contact displays the percentage of time the row-units are engaging the ground, the load is measured via a sensor through the gauge wheels. Ground contact is recommended to ensure the row-unit is maintaining proper depth at higher planting speeds.

Components and operation
Planter main controller Planter main controller
Row-unit controller (RUC) with two electric motors Row-unit controller (RUC) with two electric motors

The SeedStar 3 HP monitoring system contains the following components in order to support the planting data transfer to the GreenStar displays:

  • Planter main controller
  • Downforce sensor assembly
  • Electric power gen (EPG)
  • Row-unit controller (RUC)

The row-unit controller processes the row-unit data from the sensor node assemblies located on the row-unit head casting. The processed information is then sent to the planter main controller to be integrated into the displayed information being sent to the GreenStar display.



Downforce sensor assemblies are found on row-units with sensor installed. The downforce sensor assembly is put together with the gauge wheel depth-adjustment handle and provides gauge wheel pressure information to the respective sensor node for data processing.

Downforce sensor installed Downforce sensor installed
Downforce sensor Downforce sensor

Depending on the planter size, different configurations of sensor and downforce sensors are installed in support of the SeedStar 3 HP monitoring system.

SeedStar 3 HP seed spacing monitoring
SeedStar 3 HP seed spacing planter run page SeedStar 3 HP seed spacing planter run page

Throughout the planting process, obtaining good seed spacing is critical towards achieving plant growing conditions for maximum yield potential.



Today, many items are adjusted on the planter prior to planting to optimize overall seed spacing performance. But after such adjustments are made, information about the actual seed spacing performance during planting was missing within the planter monitoring system. With SeedStar 3 HP, seed spacing information is transmitted live via the GreenStar display to show the operator exactly what is happening with the planter behind them.



The SeedStar 3 HP transmits seed spacing information onto the bar graph (shown above) for easy understanding of planter seed spacing performance. Also, information about seed skips and multiples are provided to help understand actual planter meter performance and other related system functions in order to make necessary adjustments if needed.

SeedStar 3 HP meter runoff page
SeedStar 3 HP runoff page SeedStar 3 HP runoff page

On SeedStar 3 HP, the meter runoff page allows growers to test meters before going to the field. Growers can now test the meters without removing them and have confidence in their planter’s performance before going to the field. Many parameters can be viewed during this test such as: singulation, seed count, skips, multiples, coefficient of variation (cv), etc. This test assures that the meter is in healthy condition and ready to plant when conditions are appropriate.

Other SeedStar 3 HP monitoring features include:
  • Capable of monitoring individual row-unit and overall planter performance in terms of seed spacing, singulation, and row-unit downforce
  • On-screen indication of down force sensor assemblies once configured within the monitor settings application
  • Full-color display icons for easy recognition and overall aesthetics
  • Downforce system controls with the GreenStar display application
  • A run page that allows operator to view relative population levels of all rows on one screen
  • Mapping of actual and target seed rates can be mapped in Operations Centers.
  • Reprogrammable utilizing controller area network (CAN) via Service ADVISOR™ diagnostics system or Service ADVISOR Remote with JDLink connectivity
  • User-configurable high fertilizer pressure alarm that allows the operator to be warned when fertilizer pressure reaches a specific level
  • Automatic Fast Start for SeedStar 3 HP ensures that seeds will be place accurately when starting from a stop.
  • Automatic tractor speed source selection. When equipped with an 8000/9000 Series Tractor, the system selects the radar speed or allows for manual speed input selection.
SeedStar™ 2 monitoring system gives integrated innovation

Integrated innovation is what operators will appreciate with the SeedStar 2 monitoring system and GreenStar™ 2 Display. An increasing number of acres combined with rising seed costs drive the need to easily understand planter functions and monitor performance. It is all about making every seed count and that is what SeedStar 2 delivers.



The SeedStar 2 monitoring system is a full-feature, color, seed population monitor used in conjunction with the GreenStar family of displays. SeedStar 2 is compatible with the GreenStar 2 1800 and 2600 Displays, GreenStar 3 2630 Display, the Gen 4 4200 CommandCenter™ Display, the Gen 4 4600 CommandCenter Display, the 4240 Universal Display, and the 4640 Universal Display. SeedStar 2 is not compatible with the Gen 4 Extended Monitor. Conveniently, SeedStar 2 planting functions are fully integrated with the full spectrum of Precision Ag Technology applications—guidance, coverage maps, and field documentation can be shown all on one display.



When a SeedStar 2 system is used on a planter, there is no need for a ComputerTrak™ monitor. All vital planting information is displayed in one central, easy-to-read location.

SeedStar 2 features
SeedStar 2 full-screen planter run page SeedStar 2 full-screen planter run page

SeedStar 2 is a user-friendly system that has retained all the valued features of SeedStar and incorporated the next generation of enhancements. For example, on-screen color indicators show drive engagement/disengagement status. In addition, three color planter-at-a-glance bars (black, orange, or red) visually inform the operator of row population status.



Not only does SeedStar 2 incorporate the use of color, but it also utilizes an intuitive icon and folder-based operator interface. Icons are easy to understand across many languages and reduce the need for text. Icons for planter main run page, planter setup, seed/crop setup, totals, and diagnostics are located in the soft-key region of the display. Setup is performed by selecting the appropriate icon and then choosing the tabs to enter/select information.



The SeedStar 2 monitor offers all the features and functionality of the ComputerTrak 350 monitor and much more. SeedStar 2 monitors the following planter functions:

  • Row population/spacing
  • Row failure
  • Average population (entire planter and by variable-rate drive [VRD] motor section)
  • Vacuum level
  • Fertilizer pressure
  • Acre counter
  • Total acreage
  • Tractor speed

In addition, planter operational information is available within the SeedStar 2 monitor system. Such operational information includes population charts, seed disk vacuum settings, and setting recommendations for the piston pump liquid fertilizer system.



All SeedStar 2 systems have the capability, through a single controller, to perform both the seed monitoring and variable rate drive functions. SeedStar 2 monitoring is required for VRD population control. Even though the planter may not be equipped with SeedStar 2 VRD, the SeedStar 2 monitoring system is available and will allow for future installation of VRD.



SeedStar 2 is compatible with the RowCommand™ system and Section Control.

SeedStar 2 enhancements
SeedStar 2 half-screen planter run page SeedStar 2 half-screen planter run page
SeedStar 2 showing half-width disconnect status SeedStar 2 showing half-width disconnect status

The SeedStar 2 enhanced planter features include:

  • GreenStar 2 display integration – eliminates the need to operate the GreenStar 2 2600 Display in the original GreenStar monitor mode or the use of dual displays.
  • User-friendly, intuitive icons
  • Half- or full-screen run page
  • On-screen, color drive status – a quick glance at the display tells the operator if the half-width disconnect is engaged or disengaged.
  • Three-color planter-at-a-glance population bar – a black bar indicates that population is close to target and within established limits; orange shows the population is above/below the alarm set point; and red signals the population is out of operating range or is not planting.
  • Three-piece, color VRD indicator – each piece of the VRD gear pie turns green when the wheel motion sensor is active, planter is lowered, and drives are engaged.
Model year 2022 changes to SeedStar 2

In addition to all the great features listed above, model year 2022 introduced more improvements to the SeedStar 2 system, including:

  • Singulation, coefficient of variation (CV), and spacing metrics in base (excludes DB90 54Row20 and planters greater than 48 rows)
  • Introduction of the 32-bit controller – refer to DTAC solution 218986 for more information
  • Low seed rate alarm sensitivity – allows operators to plant lower rates and at slower speeds while maintaining visibility to planter metrics and avoiding nuisance alarms



NOTE: Enabling the low seed rate alarm sensitivity toggle may cause status bars to update slower.

Low seed rate alarm sensitivity toggle Low seed rate alarm sensitivity toggle
Run page with singulation, CV, and spacing metrics Run page with singulation, CV, and spacing metrics
SeedStar monitoring original features

SeedStar 2 retains all those SeedStar features that producers value and have come to expect:

  • Planter at a glance – allows operator to view relative population levels of all rows on one screen.
  • Automatic valve calibration – with the SeedStar VRD, this is now completed automatically. There is no longer a need to manually calibrate the hydraulic valves.
  • Increased population updates – SeedStar updates population levels once a second at planter start up then approximately once every three seconds.
  • Mapping of actual seed rates – When combined with Field Doc™ system, actual and target seeding rates can now be mapped in APEX™ software.
  • Reprogrammable utilizing controller area network (CAN) via Service ADVISOR™ diagnostics system.
  • Improved diagnostics/event recorder – on SeedStar VRD planters, additional diagnostic information is available, as well as an event recorder to capture system performance data at a specific point in time.
  • Ability to run motors at different population levels – on SeedStar VRD, operators running multiple motor systems can run each motor at a different speed, allowing different population levels within a planter.
  • User-configurable high fertilizer pressure alarm – allows the operator to be warned when fertilizer pressure reaches a specific level.
  • Automatic quick-start for SeedStar VRD – the operator no longer needs to press the quick-start button on end row turns to resume planting.
  • Automatic tractor speed source selection – when equipped with an 8000/9000 Series Tractor, the system selects the radar speed or allows for manual speed input selection.
SeedStar™ XP monitoring system
SeedStar XP overview
SeedStar XP shown on the GreenStar™ 3 2630 Display SeedStar XP shown on the GreenStar™ 3 2630 Display
SeedStar XP shown on the GreenStar 2 1800 Display SeedStar XP shown on the GreenStar 2 1800 Display

Building upon the foundation of SeedStar 2, the SeedStar XP system takes planter monitoring to the next level. SeedStar XP is compatible with the GreenStar 2 1800 and 2600 Displays, GreenStar 3 2630 Display, the Gen 4 4200 CommandCenter™ Display, the Gen 4 4600 CommandCenter Display, the 4240 Universal Display, and the 4640 Universal Display. SeedStar XP is not compatible with the Gen 4 Extended Monitor.



Specific information about how the planter is performing enables the operator to make needed adjustments for implement optimization.



The SeedStar XP planting functions are fully integrated with the full spectrum of Precision Ag Technology applications such as Swath Control Pro™ system for planters, Section Control, GreenStar AutoTrac™ assisted steering system, John Deere Operations Center, Documentation, and others. Integrated planting technologies for better asset utilization and ease of use is just part of what SeedStar XP provides.

SeedStar XP seed singulation monitoring
SeedStar XP seed singulation planter run page SeedStar XP seed singulation planter run page

Understanding the meter singulation performance on the planter is critical to minimizing the amount of seed multiples and skips. As a result, the SeedStar XP monitoring system provides real-time information from the row-units about the overall seed singulation performance.



As seen in the screen shot image above, seed multiple information is displayed on the top portion of the planter-at-a-glance bar with seed skip information on the lower portion. This provides the operator a better understanding of relative seed multiple and skip data on a row-unit basis, all within one easy glance.



Also, within the seed singulation planter run page, information about row-units with the highest percentage of seed multiples and skips is provided in order to make necessary adjustments for better planter optimization.

SeedStar XP row-unit ride dynamics planter run page
SeedStar XP ride dynamics planter run page SeedStar XP ride dynamics planter run page

While operating a planter, travel speed and field conditions can affect the amount of row-unit bounce that is experienced. Excessive row-unit bounce or vertical motion can cause problems with meter performance. To better understand the amount of row-unit vertical motion when travelling through a field, the SeedStar XP monitoring system provides real-time information on row-unit ride dynamics.



As seen in the ride dynamics planter-at-a-glance screen shot image above, the SeedStar XP system provides ride dynamic information for each sensor node that is mounted on the planter. Each sensor node transmits ride dynamic information for each planter frame section to allow for the operator to make necessary operating adjustments to improve overall planting performance.

SeedStar XP seed spacing monitoring
SeedStar XP seed spacing planter run page SeedStar XP seed spacing planter run page

Throughout the planting process, obtaining good seed spacing is critical toward achieving plant growing conditions for maximum yield potential.



Today, many items are adjusted on the planter prior to planting to optimize overall seed spacing performance. After such adjustments are made, information about the actual seed spacing performance during planting was missing within the planter monitoring system. With SeedStar XP, seed spacing information is transmitted live via the GreenStar display to show the operator exactly what is happening with the planter behind them.



The SeedStar XP transmits seed spacing information onto the planter-at-a-glance bar for easy understanding of planter seed spacing performance. Also, information about seed skips and multiples is provided to help understand actual planter meter performance and other related system functions in order to make necessary adjustments if needed.



NOTE: Seed spacing and seed singulation information is only available when planting crops with seed drop rates below 40 seeds per second such as corn. With higher population crops such as soybeans the system does not provide spacing and singulation information because the number of seeds dropping per second is much higher.

Downforce sensor installed Downforce sensor installed
Downforce sensor assembly Downforce sensor assembly

Depending on the planter size, different configurations of sensor nodes and downforce sensors are installed in support of the SeedStar XP monitoring system.

SeedStar XP row-unit downforce planter run page
SeedStar XP downforce planter run page SeedStar XP downforce planter run page

As row-unit downforce systems gradually change from heavy-duty downforce springs to pneumatic downforce, being able to understand the amount of as-applied row-unit downforce is needed while operating the planter.



With various soil conditions, moisture, etc. experienced while planting, it is imperative to have the ability to change actual row-unit downforce to have enough force for the Tru-Vee openers to penetrate the soil media. However, in some conditions, having too much downforce applied to the row-units for effective opener penetration could cause problems with side wall compaction from the gauge wheel.



Side wall compaction within the seed furrow can cause hatchet roots to develop, or roots that do not have the ability to penetrate the seed furrow soil media. This could lead to poor plant emergence and eventually lower overall yield performance.



With the SeedStar XP monitoring system, row-unit downforce information is measured by the downforce sensor and sensor nodes and transmitted to display in the tractor cab (as seen in the image above). The row-unit downforce information is displayed on the top portion of the planter-at-a-glance bar with more row-unit downforce information on the lower portion.



Two different control options are available on 1775NT, 1795, and DB Series Planters for pneumatic downforce. The base pneumatic downforce system requires manual control of the downforce to maintain the desired planting results or row-unit margin. Optional active pneumatic downforce takes SeedStar XP even further by removing constant downforce adjustments from the operator and actively controlling the downforce system to maintain a desired target margin.



The 1745 Planter with pneumatic downforce and SeedStar XP will require manual control of the downforce to maintain row-unit margin.

SeedStar XP full planter performance page
SeedStar XP planter details SeedStar XP planter details

With the capability of monitoring differences in planting performance items such as seed singulation and row-unit downforce, having one screen to view all planter performance elements is needed to understand the whole planting system. SeedStar XP combines all of the various planting performance elements into one full-color, planter overview screen to enable for a quick understanding of relative planting functionality.

SeedStar XP half screens and other features
SeedStar XP seed singulation half screen SeedStar XP seed singulation half screen
SeedStar XP seed spacing half screen SeedStar XP seed spacing half screen

Other SeedStar XP monitoring features include:

  • Capable of monitoring individual row-unit and overall planter performance in terms of seed spacing, singulation, and row-unit downforce
  • Split-screen applications to enable use of popular guidance features such as AutoTrac assisted steering system
  • On-screen indication of sensor node/downforce sensor assemblies once configured within the monitor settings application
  • Full-color display icons for easy recognition and overall aesthetics
  • Pneumatic downforce system controls with the GreenStar display application
SeedStar 2 monitoring original features

SeedStar XP retains all of those SeedStar 2 features that producers value and have come to expect:

  • Planter-at-a-glance – allows operator to view relative population levels of all rows on one screen.
  • Automatic valve calibration – with the SeedStar variable-rate drive (VRD), this is completed automatically. There is no longer a need to manually calibrate the hydraulic valves.
  • Increased population updates – SeedStar will update population levels once per second at planter start up then approximately once every three seconds.
  • Mapping of actual seed rates – when combined with documentation, actual and target seeding rates can be mapped in John Deere Operations Center.
  • Reprogrammable utilizing controller area network (CAN) via Service ADVISOR™ diagnostics system.
  • Improved diagnostics/event recorder – on SeedStar VRD planters, additional diagnostic information is available, as well as an event recorder to capture system performance data at a specific point in time.
  • Ability to run motors at different population levels – on SeedStar VRD, operators running multiple motor systems can run each motor at a different speed, allowing different population levels within a planter.
  • User-configurable high fertilizer pressure alarm – allows the operator to be warned when fertilizer pressure reaches a specific level.
  • Automatic quick-start for SeedStar VRD – no longer does the operator need to press the quick-start button on end row turns to resume planting.
  • Automatic tractor speed source selection – when equipped with an 8000/9000 Series Tractor, the system selects the radar speed or allows for manual speed input selection.
Components and operation
Planter main 2 controller Planter main 2 controller
Sensor node assembly installed Sensor node assembly installed

The SeedStar XP monitoring system contains the following components in order to support the planting data transfer to the GreenStar 2 Displays:

  • Seed monitor/variable-rate (SMVR) controller with model year 2011 or newer software
  • Planter main 2 controller (installed on all SeedStar XP eligible models for model year 2011 or newer)
  • Sensor node(s)
  • Downforce sensor assembly



The planter main 2 controller processes the row-unit data from the sensor node assemblies located on the row-unit head casting. The processed information is then sent to the SMVR controller to be integrated into the displayed information being sent to the GreenStar Display.



Downforce sensor assemblies are found on row-units with sensor nodes installed. The downforce sensor assembly is assembled with the gauge wheel depth-adjustment handle and provides gauge wheel pressure information to the respective sensor node for data processing.

Specifications
Expand All
Key Specs
Number of rows
16
Row spacing
76 cm
30 in.
Frame - Fold configuration
Frame - Flexibility
Up and down: 21 degree (angle)
Row unit seed hoppers
Capacity
2.2 L (0.062 bu)
58 L (1.65 bu)
106 L (3.0 bu)
Seed Meters
Base
Vacuum
Finger pickup
Optional
Rows And Row Spacing
Number of rows
16
Row spacing
76 cm
30 in.
Frame
Fold configuration
Frame tube size
Fold-and-go from tractor cab
Flexibility
Up and down: 21 degree (angle)
Hitch
Base
Optional
Rear hitch
Lift System
Type
Wheel modules with hydraulic cylinders
Number of cylinders
Tires
Base
Implement tire: VF245/70R19.5
Optional
Factory-installed Soucy tracks
Quantity
Row Units
Type
Standard: MaxEmerge™ 5 row units
Optional: ExactEmerge™ row units
MaxEmerge 5e row units
Opener
Tru-Vee double disk
Depth gauging
Adjustment
Walking wheels
Row unit seed hoppers
Capacity
2.2 L (0.062 bu)
58 L (1.65 bu)
106 L (3.0 bu)
Row unit down force
Scrapers, opener blades
Seed tube sensors
Seed Meters
Base
Vacuum
Optional
Finger pickup
Optional
Radial bean meter
Optional
Central Commodity System
Seed capacity
4581 L
130 bu
Drive System
Base
Hydraulic variable rate drive
Optional
Number of drive wheels
Drive wheel disconnect
Counter shaft
Drill shaft
Seed transmission
Transmission combinations
Markers
Type
Automatic alternating or independent control
Control
Marker disk
Shear bolt protection
Less marker option
Closing System
Rubber tire closing system
Cast iron closing system
Herbicide And Insecticide
Insecticide only hopper
Herbicide only hopper
Insecticide and herbicide hopper
Liquid Insecticide System
System available
Tank capacity
Seed Monitor System
Base
Optional
Tillage Attachments
Unit-mounted coulter
Frame-mounted coulter
Bubble blade
.63-in. fluted blade (25 flutes)
.7-in. fluted blade (13 flutes)
1-in. fluted blade (8 flutes)
Row tillage support hanger
Tine tooth
Cons. furrower w/ leading cutout blade
V-wing bed sweeps
Row cleaner
Row cleaner - unit-mounted coulter
Row cleaner - unit-mounted DD fert. opener
Fertilizer
Onboard / towed / tractor tanks
Tank capacity
1703 L
450 gal.
Fixed-rate application
Variable-rate application
Pump type
Pump rate
Fertilizer opener type
Flow divider distribution system
Pressure manifold distribution system
Dry fertilizer
ExactRate Fluid Transfer System
Available
Dimensions
Transport width (with markers)
3494 mm
137.56 in.
Transport width (without markers)
Transport length
10193 mm
401.3 in.
Transport height
3800 mm
149.6 in.
Transport weight
Transport underframe clearance
Field operation height
Field operation width
12870 mm
506.7 in.
Field operation length
6533 mm
257.2 in.
Ag Management Solutions
Map-based seeding
Field documentation
Parallel tracking
Additional Information
Recommended tractor horsepower
Minimum tractor size required: 90 kW
120 PTO hp
Operating with extra planter attachments or when planting in soft seedbeds and rolling ground, more tractor power is required.
Recommended tractor hydraulics
Hydraulic oil required to operate machine: 5.7 L
1.5 gal.
Hydraulic system working pressure: 20,684 kPa
206.84 bar (3000 psi)
Hydraulic system burst pressure: 82,737 kPa
827.37 bar (12,000 psi)
Tractor standby pressure: 15,514 kPa
155.14 bar (2250 psi)
Warranty length
Date collected
We want to make owning and operating your equipment simple and affordable.
We have a range of finance options to suit any customer.  Contact your local Emmetts branch, or visit these sites for more information and a free quote.
John Deere FinancialEmmetts Finance
linkedin facebook pinterest youtube rss twitter instagram facebook-blank rss-blank linkedin-blank pinterest youtube twitter instagram
