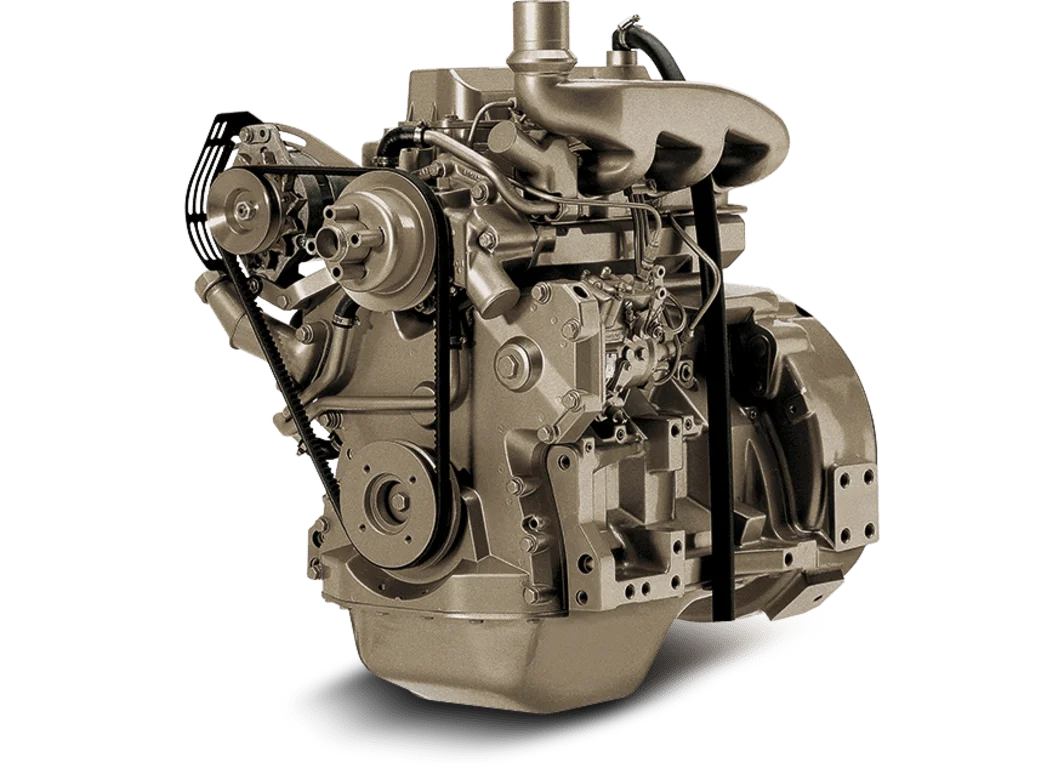

3029DF150
2.9L Industrial Diesel Engine
  • 2.9L PowerTech™
  • 36 - 43 kW (48 - 58 hp)
Make an Enquiry on This Machine
Features
Get details on 48 to 58 hp, 36 to 43 kW John Deere 3029DF150 industrial diesel engines for OEM equipment, including features, specs, and integrated support
Expand All
Meets epa, carb, and eu off-road emission regulations
  • Engine developed to meet off-road emission requirements without degradation in performance or power level
Dynamically balanced crankshaft
  • Journal surfaces induction-hardened for significantly increased wear life
Forged-steel connecting rods
  • 45-degree connecting-rod/cap-joint design allows the use of larger crankshaft-connecting-rod bearings for increased durability
Replaceable wet-type cylinder liners
  • Provides excellent heat dissipation
  • Precision machined for long life
Strong cylinder block
  • Weight of cylinder block reduced, while maintaining overall strength
  • Crankshaft supported by four main bearings
Easy to apply
  • Mounting points for new engine have not been changed, making it easy to replace previous model
  • Additional front engine mounts are available for application ease
Compact size
  • Compact, in-line 3-cylinder configuration allows model to be used in applications where length is critical
Optional gear auxiliary drive
  • Optional drive, with an SAE "A" flange, increases application flexibility of the 3-cylinder engine
World-class performance
  • Higher torque rise, excellent fuel economy, and low oil consumption result in superior engine performance
Specifications
Expand All
Emissions Certifications
CARB
EPA Tier 1
EU Stage I
General Engine Data
Model
3029DF150
Number of cylinders
3
Displacement-- L (cu in)
2.9 (177)
Bore and Stroke-- mm (in)
106 x 110 (4.17 x 4.33)
Compression Ratio
17.2:1*
Engine Type
In-line, 4-Cycle
Aspiration
Naturally aspirated
Length - mm (in)
716 (28.2)
Width-- mm (in)
528 (20.8)
Height-- mm (in)
819 (32.2)
Weight, dry - kg (lb)
317 (699)
Performance Data Range
Intermittent - Rated power/Rated speed
36-43 kW (48-58 hp) @2500 rpm
Intermittent - Peak power
37-43 kW (50-58 hp) @2400-2500 rpm
Intermittent - Peak torque
189-191 N·m (139-141 ft-lb) @1000-1600 rpm
Intermittent - Torque rise
NA
