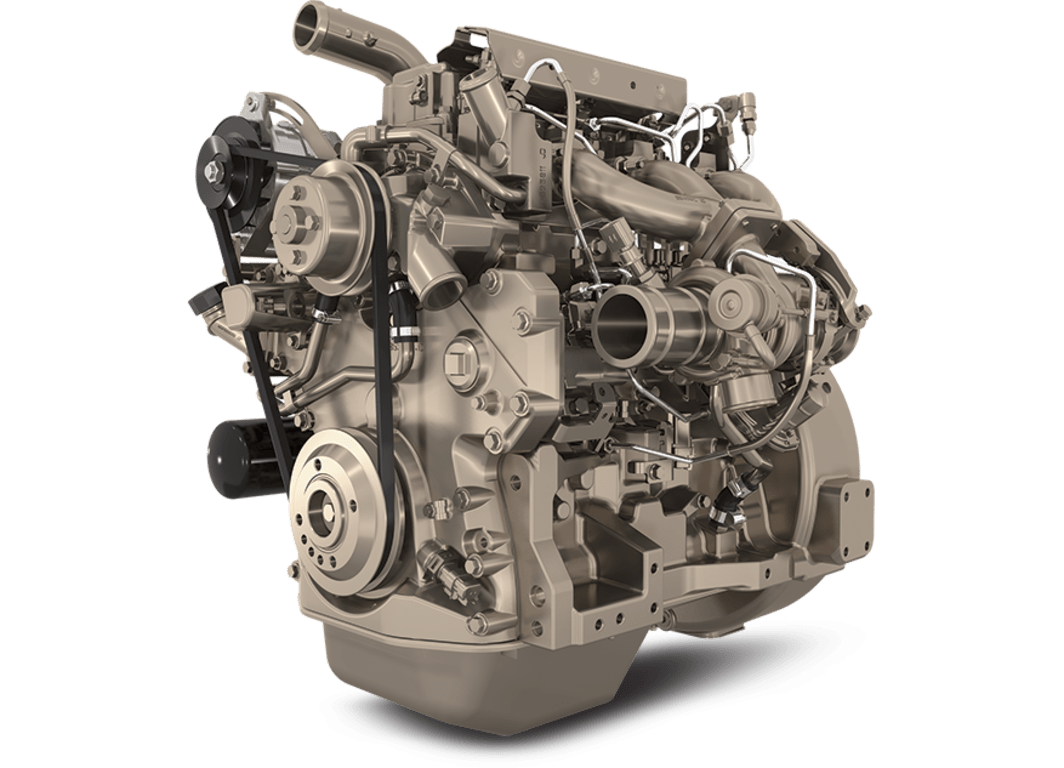

3029HFG03
2.9L Generator Drive Engine
  • PowerTech™ EWX
  • Prime: 33-50 kW (44-67 hp) @ 1800 rpm
  • Dual frequency available
Make an Enquiry on This Machine
Features
See how the powerful and cost-effective Final Tier 4 John Deere 3029HFG03 generator drive diesel engine with 36-55 kW (48-74 hp) can benefit OEM gen-set applications.
Expand All
Wastegated turbocharger
  • Wastegated turbochargers are designed to develop more airflow at lower engine speeds to improve low-speed torque. The wastegate control device bleeds off a portion of the exhaust flow at higher engine speeds. Wastegated turbos deliver improved transient response and higher peak torque without compromising engine envelope size. They also provide the lowest installed cost across a given power range.
Exhaust filters
  • This system is the Best Available Control Technology (BACT) for particulates that delivers premium block load acceptance characteristics and utilize a catalyzed exhaust filter that contains a diesel oxidation catalyst (DOC) and a diesel particulate filter (DPF). The DOC reacts with exhaust gases to reduce carbon monoxide, hydrocarbons, and some particulate matter (PM). The downstream DPF traps and holds the remaining PM. Trapped particles are oxidized within the DPF through a continuous cleaning process called passive regeneration. Passive regeneration occurs during normal operating conditions when heat from the exhaust stream and catalysts within the exhaust filter trigger the oxidation of the trapped PM. If passive regeneration cannot be achieved due to low temperature, load, or speed, then PM is removed using active regeneration — an automatic cleaning process controlled by the exhaust temperature management system.
High-pressure common-rail (HPCR) and engine control unit (ECU)
  • The HPCR fuel system provides variable common-rail pressure and higher injection pressures up to 2,500 bar (36,000 psi). It also controls fuel injection timing and provides precise control for the start, duration, and end of injection.
Air-to-air aftercooled
  • This is the most efficient method of cooling intake air to help reduce engine emissions while maintaining low-speed torque, transient response time, and peak torque. It enables an engine to meet emissions regulations with better fuel economy and the lowest installed costs.
2-valve cylinder head
  • Cross-flow head design provides excellent breathing from a lower-cost 2-valve cylinder head.
Compact size
  • Lower installed cost
  • Mounting points are the same as previous engine models
John Deere electronic engine controls
  • Faster engine control unit (ECU) manages both the engine and the exhaust filter
  • JDLink™ lets you monitor, protect, and maintain your equipment 24/7
  • Premium software option integrates with equipment or vehicles to reduce engineering and installation costs
  • Electronic engine controls can be engine or remote mounted
Additional features
  • Gear-driven auxiliary drives
  • 500-hour oil change
  • Replaceable (wet) cylinder liners
  • Oil-cooled pistons with hardened ring groove insert
  • Engine-mounted final fuel filters
  • Optional low-pressure fuel system with electrical transfer pump and "auto-prime" feature
  • Single fluid solution
  • Full flow engine mounted oil cooler
Specifications
Expand All
Emissions Certifications
CARB

EPA Tier 4

General Engine Data
Model
3029HFG03
Number of cylinders
3
Displacement-- L (cu in)
2.9 (177)
Bore and Stroke-- mm (in)
106.5 x 110 (4.19 x 4.33)
Compression Ratio
16.9
Engine Type
In-line, 4-Cycle
Aspiration
Turbocharged and air-to-air aftercooled
Length - mm (in)
715 (28.1)
Width-- mm (in)
596 (23.5)
Height-- mm (in)
956 (37.6)
Weight, dry - kg (lb)
400 (882)
Doc/Dpf Dimensions
Size 2 - Diameter - mm (in)
209 (8.2)
Size 2 - Length - mm (in)
573 (22.6)
Size 2 - Weight - kg (lb)
20 (44.1)
Performance Data Range
Hz (rpm)
60 ( 1800 )
50 ( 1500 )
Generator Efficiency %
88-92
88-92
Power Factor
0.8
0.8
Engine power - Prime kW
33-50
33-44
Engine power - Prime hp
44-67
44-59
Engine power - Standby kW
36-55
36-48
Engine power - Standby hp
48-74
48-64
Rated Fan Power - kW
1.4-2.2
1.4-1.9
Rated Fan Power - hp
1.9-3.0
1.9-2.5
Calculated generator set output - Prime kWe
28-44
28-39
Calculated generator set output - Prime kVA
35-55
35-48
Calculated generator set output - Standby kWe
30-49
30-42
Calculated generator set output - Standby kVA
38-61
38-53
