3029TFG89
2.9L Generator Drive Engine
  • PowerTech™ M
  • Standby: 31-35 kW (42-47 hp)
    @ 1500 -1800 rpm
  • Prime: 28-31 kW (38-42 hp)
    @ 1500 - 1800 rpm
  • Dual frequency available
Make an Enquiry on This Machine
Features

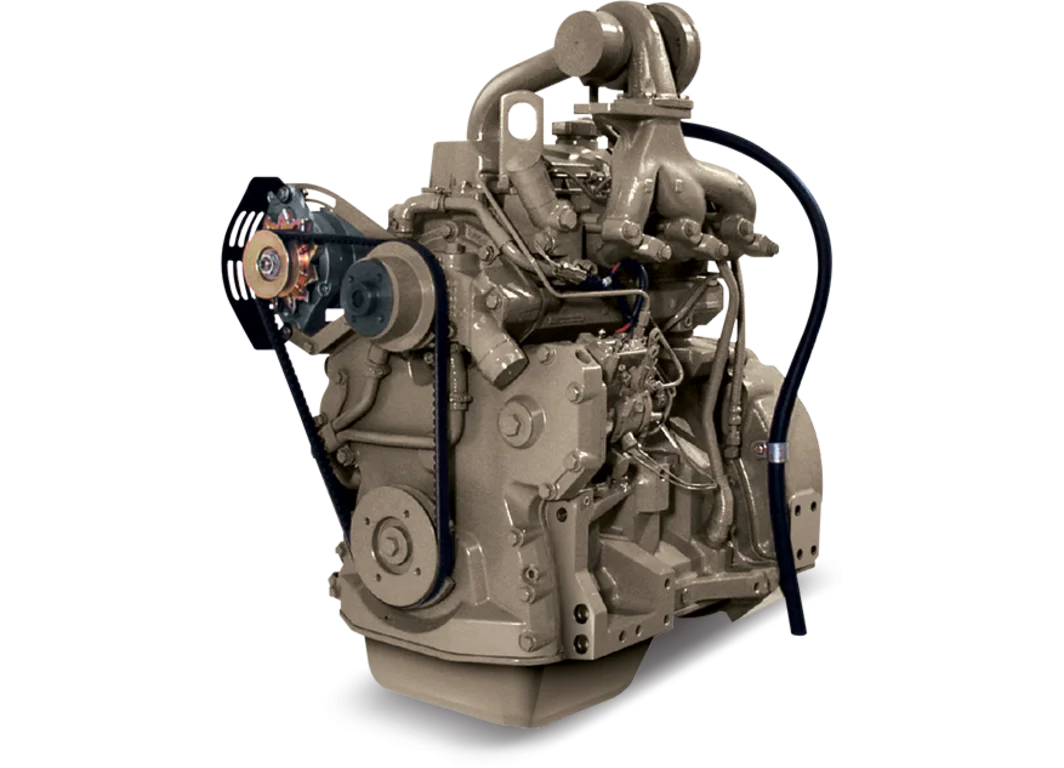

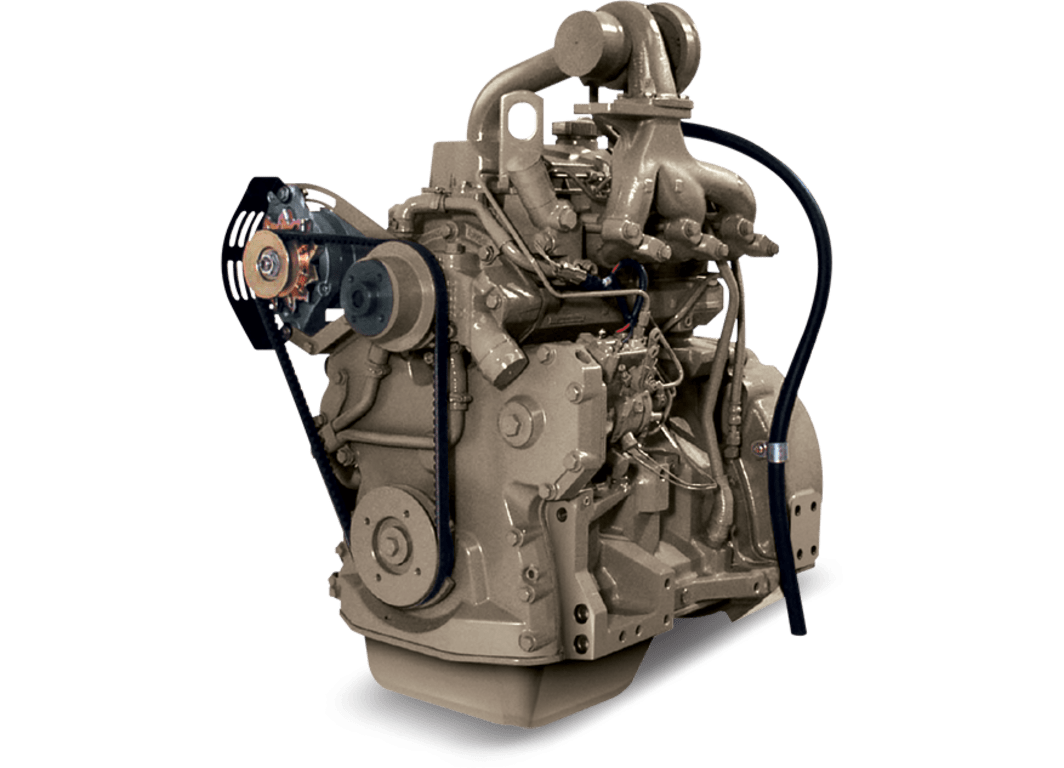

Meet emissions requirements without sacrificing performance with the 31-35 kW ( 42-47 hp) John Deere 3029TFG89 Interim Tier 4 and EU Stage III A generator drive diesel engine with mechanical fuel systems.
Expand All
Fixed geometry turbocharger
  • Fixed geometry turbochargers are sized for a specific power range and optimized to provide excellent performance across the entire torque curve. They are also designed to maximize fuel economy between the engine's rated speed and peak torque.
Mechanical rotary pump
  • The timing and fuel injection pressures are optimized to maximize performance and fuel economy at a given rated speed.
2-valve cylinder head
  • Cross-flow head design provides excellent breathing from a lower-cost 2-valve cylinder head.
Compact size
  • Horsepower/displacement ratio is best-in-class
  • Lower installed cost
  • Mounting points are the same as previous engine models
Dual frequency
  • 50 Hz/60 Hz dual frequency is available on these engines and meet EPA Interim Tier 4 and EU Stage III A emissions regulations.
Specifications
Expand All
CARB



EPA Interim Tier 4



EU Stage III A



Model
3029TFG89
Number of cylinders
3
Displacement - L (cu in)
2.9 (177)
Bore and Stroke-- mm (in)
106 x 110 (4.17 x 4.33)
Compression Ratio
17.2:1
Engine Type
In-line, 4-cycle
Aspiration
Turbocharged
Length - mm (in) to rear of block
717 (28.2)
Width - mm (in)
529 (20.8)
Height-- mm (in)
961 (37.8)
Weight, dry-- kg (lb)
316 (697)
Rated speed Hz (rpm)
60 (1800)
Engine power - Prime kW (hp)
31 (42)
Engine power - Standby kW (hp)
35 (47)
Generator efficiency
88-92%
Rated fan power kW (hp)
2.2 (3)
Power factor
0.8
Calculated generator set output - Prime kWe* (kVA)
25-27 (32-34)
Calculated generator set output - Standby kWe (kVA)
28-30 (35-37)
*Electrical power is calculated from the typical generator efficiency and fan power percentages shown. Applications may vary.
