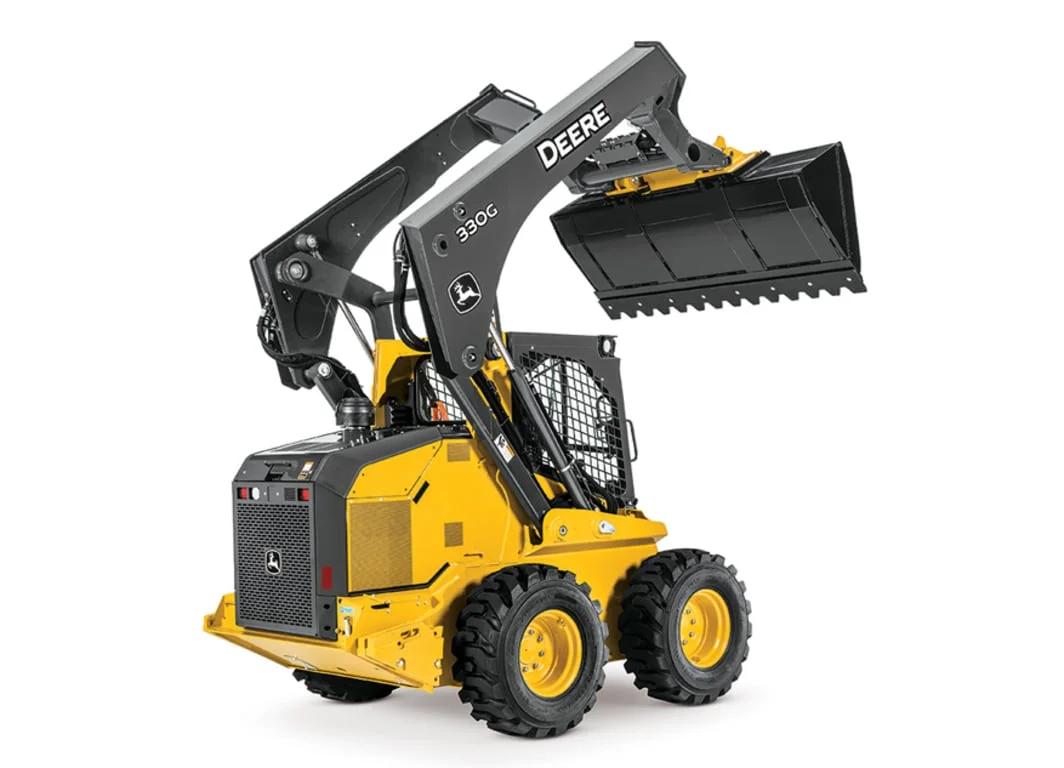

330G
Skid Steer
  • Rated Operating Capacity: 1362 kg (3,000 lb.)
  • Gross Power: 68 kW (91.2 hp) @ 2,500 rpm
  • Net Power: 66 kW (88.5 hp) @ 2,500 rpm
  • Operating Weight: 4495 kg (9,900 lb.)
Make an Enquiry on This Machine
Features
Explore the 330G large frame Skid Steer from John Deere. View features, and download specifications brochure.
Expand All
Engine

Final Tier 4 (FT4)/EU Stage IV diesel engine packs plenty of power and torque.

Unique Tri-Cool design resists debris buildup and employs large coolers for standout performance in severe, high-load conditions. Add a reversible fan in high-debris applications for quick core cleanout.

Cab & Controls

Larger entryways with swing-out doors make it easier to get in, get comfortable, and get on with it. Inside, there’s more productivity-enhancing foot- and legroom.

Three-way switchable controls between EH foot, ISO joystick, or H-pattern joystick modes. Includes switchable accelerator/decelerator with right-side foot pedal when operating in ISO or H-pattern joystick-control mode.

Productivity

Add the new 90-in. bucket, available for the 330G and watch productivity soar.

EH Boom Performance Package

Factory-installed performance package offers increased productivity and ease-of-use with the following capabilities:

  • Return to Dig allows the operator to automatically set the bucket or other attachment to his/her designated ready-to-work position.
  • Return to Carry allows the operator to use joystick detents to automatically reset the boom to a designated ready-to-carry position.
  • Boom Height Kickout allows the operator to pre-select a specific boom height based on truck/hopper height and use joystick detents to automatically stop at a specific height.
  • Electronic Self-Level allows the self-level to work on the boom up and down unlike the hydraulic self-level option that works only on boom up.
Onboard Grade Indication Option

This option, installed in-factory or in the field, provides cross-slope or roll and mainfall slope or pitch of the machine within the in-cab monitor display.

  • Easy-to-use
  • Real-time interface
  • Roll and pitch viewable as either “absolute” or “relative” values
  • Roll and pitch viewable in either degrees or percent
Vertical-Lift Boom

The vertical-lift boom offers more lift height and reach at the top of the lift path, for more stability and truck-loading ability.

Hydraulic Boost

Increased auxiliary hydraulic flow and power enable the 330G and 332G to make the most of an even broader range of attachments.

Easy Maintenance

Swing open the rear door and tilt up the hood for convenient ground-level access to dipsticks, fuel- and fluid-filler necks, and filters.
