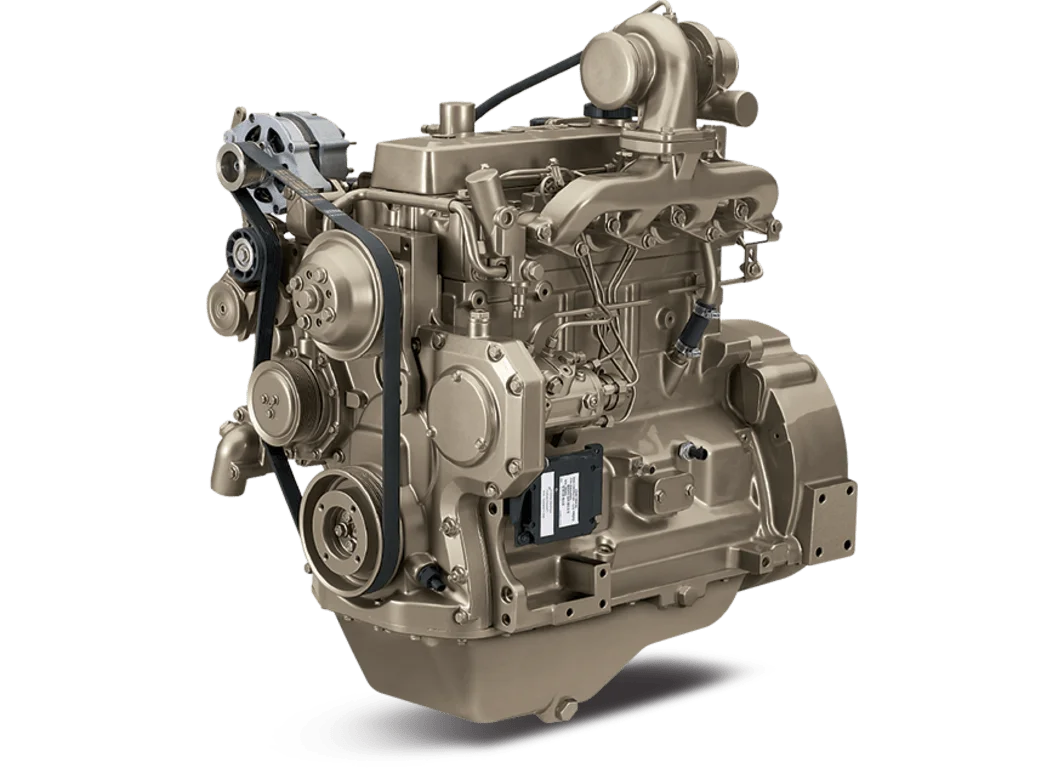

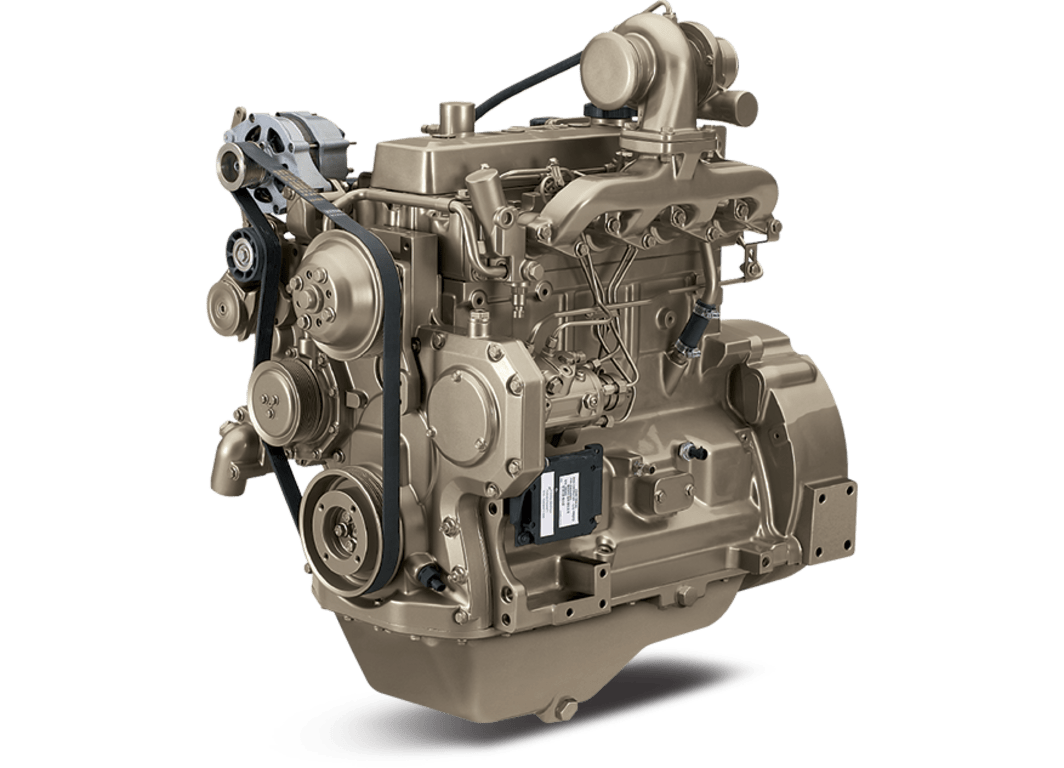

4045HF280
4.5L Industrial Diesel Engine
  • PowerTech™ M
  • 74 kW (99 hp)
Make an Enquiry on This Machine
Features
Get details on 99 hp, 74 kW John Deere 4045HF280 industrial diesel engines for OEM equipment, including features, specs, and integrated support.
Expand All
2-valve cylinder head
  • Cross flow head design that provides excellent breathing from a lower cost two-valve cylinder head
Mechanical rotary fuel pump
  • The timing and fuel injection pressures are optimized to maximize performance and fuel economy at a given rated speed
Fixed geometry turbocharger
  • Fixed geometry turbochargers are precisely matched to the power level and application
Air-to-air aftercooled
  • This is the most efficient method of cooling intake air to help reduce engine emissions while maintaining low-speed torque, transient response time, and peak torque. It enables an engine to meet emissions regulations with better fuel economy and the lowest installed costs
Compact size
  • Mounting points are the same as Tier 2/Stage II engine models
Engine performance
  • New power bulge feature
  • New higher-peak torque speed
  • Lower-rated speeds available for reduced noise and improved fuel economy
Additional features
  • Self-adjusting poly-vee fan drive
  • Forged-steel connecting rods
  • Replaceable wet-type cylinder liners
  • Either-side service
  • 500-hour oil change
  • Optional final fuel filter with water separator and water-in-fuel sensor
  • Optional balancer shafts
Specifications
Expand All
Emissions Certifications
CARB
EPA Tier 3
EU Stage III A
MSHA
General Engine Data
Model
4045HF280
Number of cylinders
4
Displacement-- L (cu in)
4.5 (275)
Bore and Stroke-- mm (in)
106 x 127 (4.17 x 5.00)
Compression Ratio
19.0:1
Engine Type
In-line, 4-Cycle
Aspiration
Turbocharged and air-to-air aftercooled
Length - mm (in)
860 (33.9)
Width-- mm (in)
612 (24.1)
Height-- mm (in)
994 (39.1)
Weight, dry - kg (lb)
396 (873)
Performance Data Range
Intermittent - Rated power/Rated speed
60-74 kW (80-99 hp) @2200-2400 rpm
Intermittent - Peak power
75 kW (101 hp) @2000-2200 rpm
Intermittent - Peak torque
366-383 N·m (270-282 ft-lb) @1600 rpm
Intermittent - Torque rise
NA
