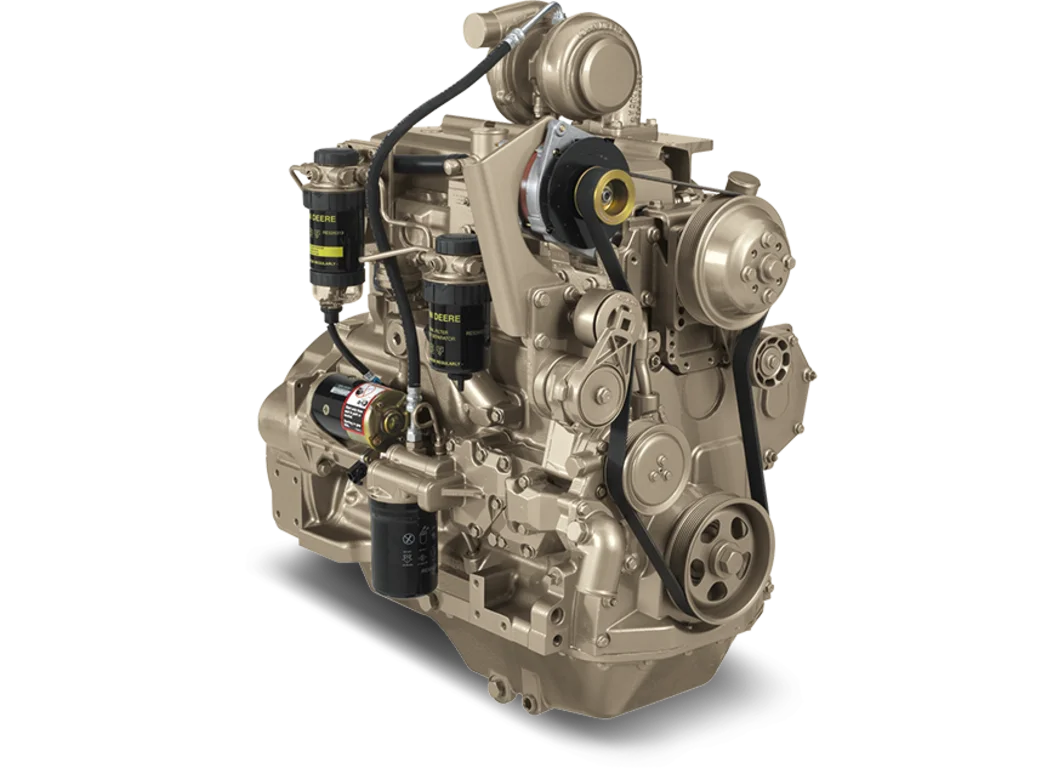

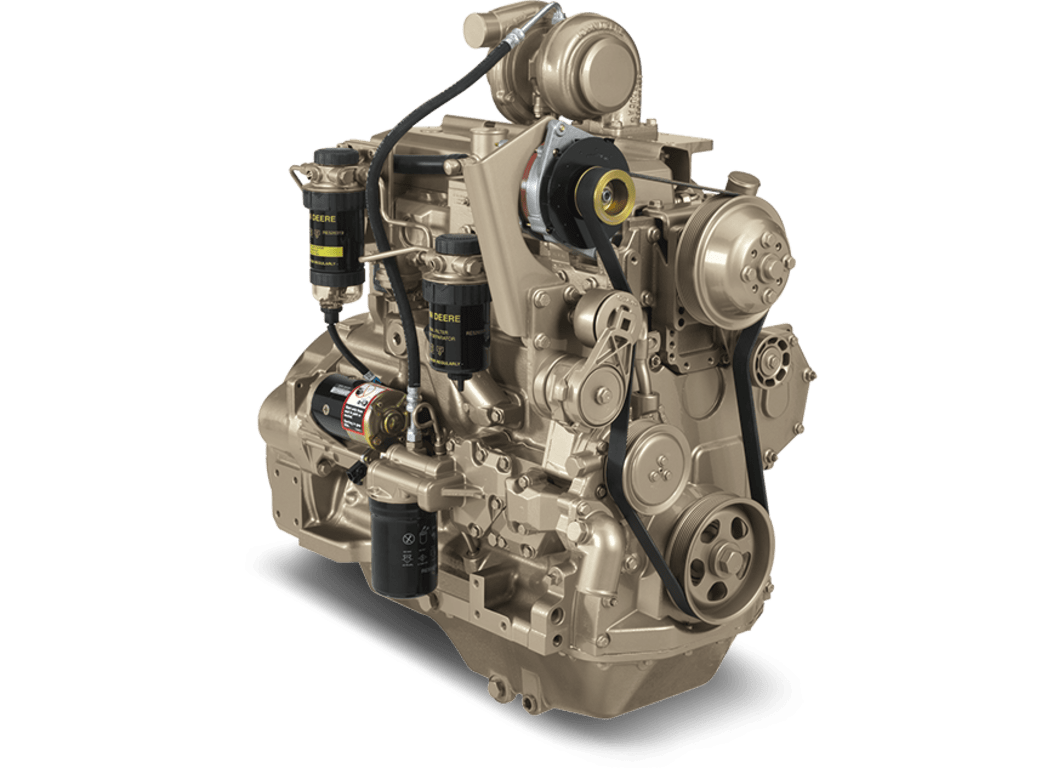

4045HF285 Constant Speed
Industrial Marine Engine
- 4.5L PowerTech™
- 117 kW (157 hp)
X
Select Your Closest Emmetts Branch and Ask About This Machine Today!
Features
Run pumps, winches, deck cranes, hydraulics, and generators with a Tier 3 John Deere constant speed industrial auxiliary engine.
Expand All
2-valve cylinder head
- Cross flow head design that provides excellent breathing from a lower cost two-valve cylinder head
High-pressure common-rail (HPCR) and engine control unit (ECU)
- The HPCR fuel system provides variable common-rail pressure, multiple injections, and higher injection pressures, up to 1600 bar (23,000 psi). It also controls fuel injection timing and provides precise control for the start, duration, and end of the injection.
Fixed geometry turbocharger
- Fixed geometry turbochargers are sized for a specific power range and optimized to provide excellent performance across the entire torque curve. They are also designed to maximize fuel economy between the engine's rated speed and peak torque.
Air-to-air aftercooled
- An efficient method of cooling intake air to help reduce engine emissions while maintaining low-speed torque, transient response time, and peak torque. It enables an engine to meet emissions regulations with better fuel economy and the lowest installed costs.
Multiple injection strategy
- The HPCR fuel system and engine control unit (ECU) allow for multiple fuel injections. The number of fuel injections, based on speed and load, help contribute to lower combustion temperatures, which reduce the formation of NOx and particulates. The multiple injection strategy also provides an added benefit of noise reduction.
John Deere electronic engine controls
- PowerTech E engines offer electronically controlled fuel systems with improved cold-start performance, precise engine speed control, torque curve shaping and more. Because these systems have less need for redundant sensors, add-on electronic governors, and shutdown devices - they result in a lower total installed cost.
Additional features
- Self-adjusting poly-vee fan drive
- Forged-steel connecting rods
- Replaceable wet-type cylinder liners
- Either-side service
- Standard gear auxiliary drive
Specifications
Expand All
Emissions Certifications
- IMO Tier 2
- EPA Tier 3
General Engine Data
- Model
- 4045HF285
- Number of cylinders
- 4
- Displacement-- L (cu in)
- 4.5 (275)
- Bore and Stroke-- mm (in)
- 106 x 127 (4.17 x 5.00)
- Compression Ratio
- 19.0:1
- Engine Type
- In-line, 4-cycle
- Aspiration
- Turbocharged and air-to-air aftercooled
- Length - mm (in)
- 860 (33.9)
- Width-- mm (in)
- 612 (24.1)
- Height-- mm (in)
- 1039 (40.9)
- Weight, dry - kg (lb)
- 491 (1082)
Performance Data Range
- Heavy Duty - Rated power/Rated speed
- 86 kW (115 hp) @2200 rpm
- Heavy Duty - Peak power
- 90 kW (121 hp) @ 2000 rpm
- Heavy Duty - Power bulge
- 5% @ 2000 rpm
- Heavy Duty - Peak torque
- 480 N·m (354 ft-lb) @1500 rpm
- Heavy Duty - Torque rise
- 29%
