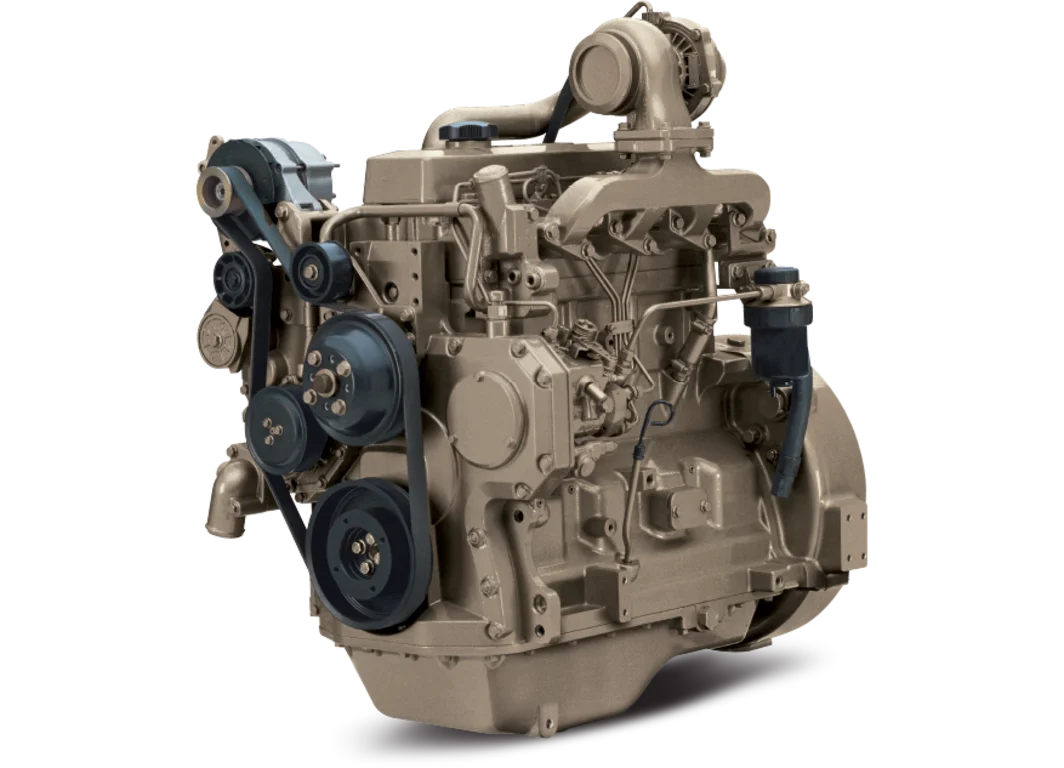

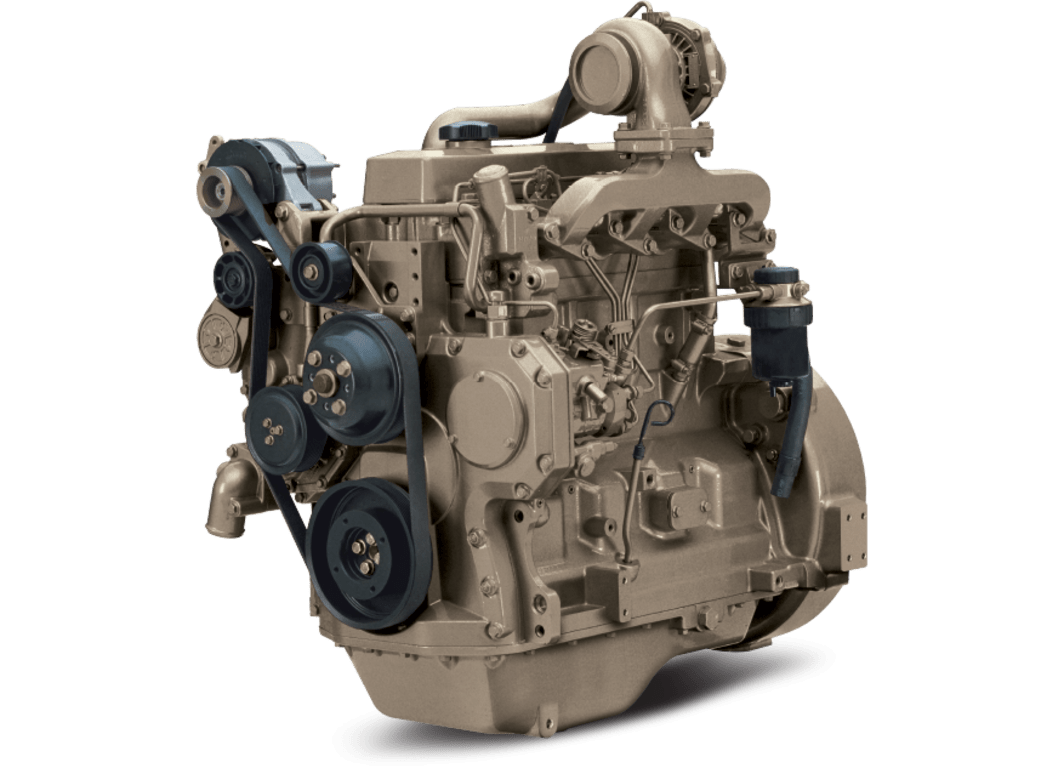

4045HF475
4.5L Generator Drive Engine
- PowerTech™ E
- Standby: 143 kW (192 hp) @ 1800 rpm
- Prime: 130 kW (174 hp) @ 1800 rpm
X
Select Your Closest Emmetts Branch and Ask About This Machine Today!
Features
See how the 143 kW (192 hp) Tier 2 John Deere 4045HF475 generator drive diesel engine advances the standard of excellence with an electronically controlled or mechanical fuel system in OEM gen-set applications.
Expand All
Dynamically balanced crankshaft
- Induction-hardened journals for long hours of reliable service
- Robust design to drive machinery from the front of the crankshaft
- Supported by five main bearings
Forged-steel connecting rods
- 45-degree connecting rod/cap-joint design allows the use of large connecting rod bearings for increased durability
Replaceable wet-type cylinder liners
- Provide excellent heat dissipation
- Precision machined for long life
- Rebuild to original specifications
Easy to apply, easy to install
- Front and rear engine mounting pads on the side of the block facilitates installation
- Either-side service for filters and service points simplify installation and packaging
- All connection points in common locations make it easy to install or package
Smooth operation
- Smooth vibration with full length engine balancers
Compact size
- Short length is ideal for both skid and packaged installations
- High mount or low mount turbocharger position to meet packaging requirements
World-class performance
- Excellent fuel economy and low oil consumption
Fuel system controls
- Electronically controlled rotary fuel injection pump with variable timing resulting in excellent fuel economy and excellent performance
- Proven and Reliable Mechanical Governo>
- 3-5% Droop Governing
- 12V or 24V Electric Shutoff
Specifications
Expand All
Emissions Certifications
- CARB
- EPA Tier 2
General Engine Data
- Model
- 4045HF475
- Number of cylinders
- 4
- Displacement-- L (cu in)
- 4.5 (275)
- Bore and Stroke-- mm (in)
- 106 x 127 (4.17 x 5.00)
- Compression Ratio
- 17.0:1
- Engine Type
- In-line, 4-Cycle
- Aspiration
- Turbocharged and air-to-air aftercooled
- Length - mm (in)
- 862 (33.9)
- Width-- mm (in)
- 605 (23.8)
- Height-- mm (in)
- 1025 (40.4)
- Weight, dry - kg (lb)
- 451 (994)
Performance Data Range
- Hz (rpm)
- 60 ( 1800 )
- Generator Efficiency %
- 88-92
- Power Factor
- 0.8
- Engine power - Prime kW
- 130
- Engine power - Prime hp
- 174
- Engine power - Standby kW
- 143
- Engine power - Standby hp
- 192
- Rated Fan Power - kW
- 7.2
- Rated Fan Power - hp
- 9.7
- Calculated generator set output - Prime kWe
- 107-112
- Calculated generator set output - Prime kVA
- 134-141
- Calculated generator set output - Standby kWe
- 119-124
- Calculated generator set output - Standby kVA
- 148-156
