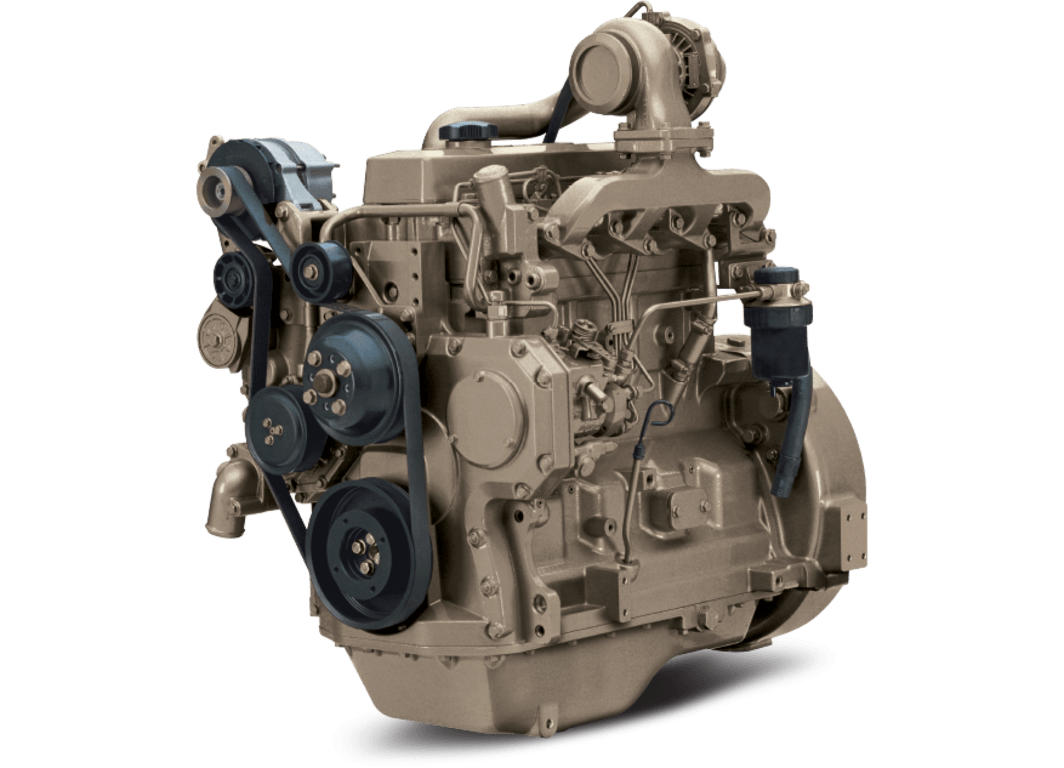

4.5L Industrial Diesel Engine
  • PowerTech ™
  • 86 - 93 kW (115 - 125 HP)
Make an Enquiry on This Machine
Get details on 115 to 125 hp, 86 to 93 kW John Deere 4045TF250 industrial diesel engines for OEM equipment, including features, specs, and integrated support.
Expand All
Dynamically balanced crankshaft
  • Crankshafts are formed from nodular iron
Forged-steel connecting rods
  • Unique 45-degree design permits use of larger crankshaft connecting-rod bearings for increased durability
Self-adjusting poly-vee fan drive
  • Self-adjusting, eight-groove, poly-vee fan drive provides multiple fan drive ratios and fan heights that can be matched to specific application requirements
  • Poly-vee design provides more than twice the drive capacity of comparable vee-belts
Replaceable wet-type cylinder liners
  • Provides excellent heat dissipation
  • Precision machined for long life
Either-side service
  • Engine installation and maintenance simplified and convenient by providing dipstick and oil filter options on both sides of the engine
Standard gear auxiliary drive
  • Standard gear auxiliary drive produces up to 50 hp (37 kW) for gear-driven accessories
Mounting points
  • Standard front and side mounting points provide easy installation and application flexibility
Optional engine-balancer shafts
  • Provides smooth engine operation
Expand All
General Engine Data
Number of cylinders
Displacement-- L (cu in)
4.5 (275)
Bore and Stroke-- mm (in)
106 x 127 (4.17 x 5.00)
Compression Ratio
Engine Type
In-line, 4-Cycle
Length - mm (in)
860 (33.9)
Width-- mm (in)
612 (24.1)
Height-- mm (in)
994 (39.1)
Weight, dry - kg (lb)
396 (873)
Performance Data Range
Intermittent - Rated power/Rated speed
85-93 kW (114-125 hp) @2200-2400 rpm
Intermittent - Peak power
85-93 kW (114-125 hp) @2200-2400 rpm
Intermittent - Peak torque
445-446 N·m (328-329 ft-lb) @1400-1500 rpm
Intermittent - Torque rise
Emissions Certifications
Non-Emissions Certified
