4045TF280

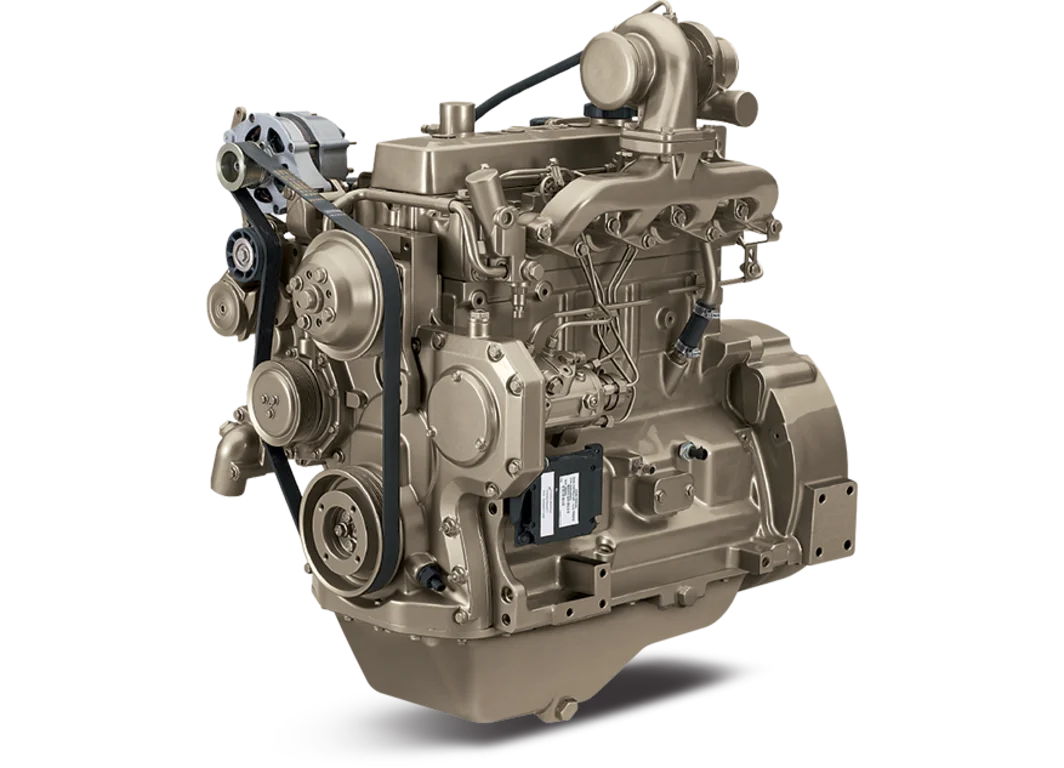

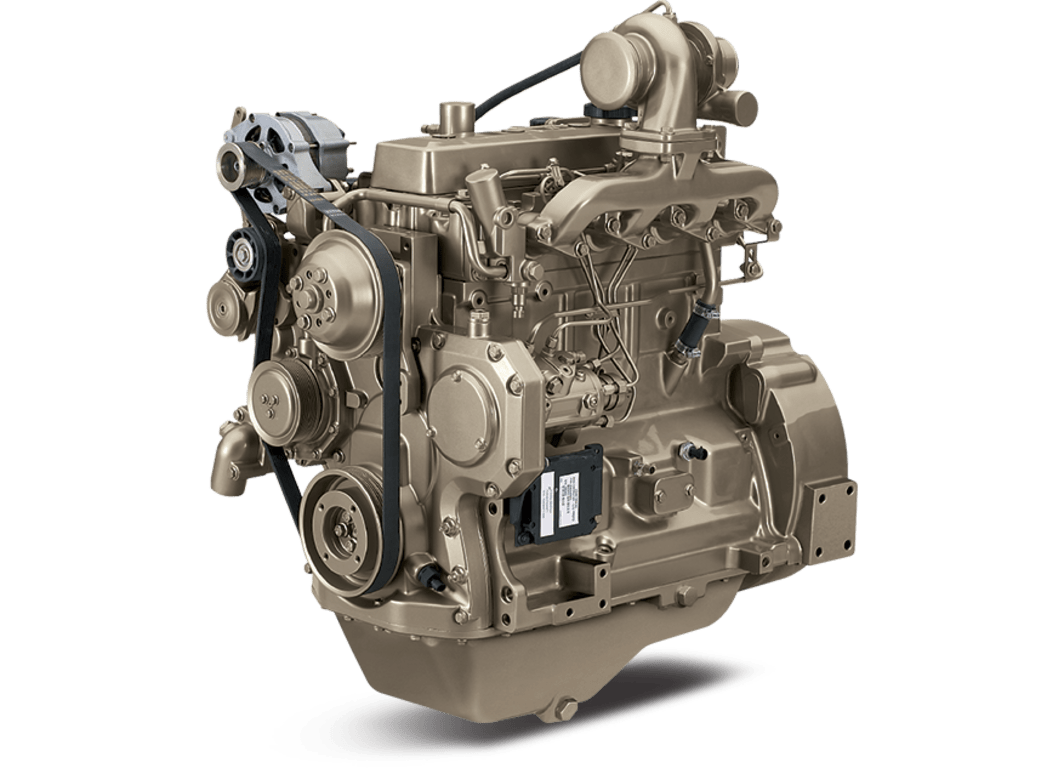

4.5L Generator Drive Engine
  • PowerTech™ M
  • Standby: 56-63 kW (75-84 hp) @ 1800 rpm
  • Prime: 51-57 kW (68-76 hp) @ 1800 rpm
Make an Enquiry on This Machine
Features
See how the 56-63 kW (75-84 hp) Tier 3 John Deere 4045TF280 generator drive diesel engine with fixed geometry turbocharger provides excellent breathing from a lower-cost 2-valve cylinder head for OEM gen-set applications.
Expand All
Jet fuel capable
  • The John Deere jet fuel capable engines run on military, arctic, and aviation fuel, including Jet A, Jet A-1, JP-5, and JP-8. If you need to switch back to diesel fuel, just fill up the tank and go.
2-valve cylinder head
  • Cross-flow head design provides excellent breathing from a lower-cost 2-valve cylinder head
Mechanical rotary fuel pump
  • The timing and fuel injection pressures are optimized to maximize performance and fuel economy at a given rated speed
Fixed geometry turbocharger
  • Fixed geometry turbochargers are precisely matched to the power level and application
Turbocharged
  • In turbocharged engines, the air is pre-compressed. Due to the higher pressure, more air is supplied into the combustion chamber allowing a corresponding increase in fuel injection which results in greater engine output
Compact size
  • Mounting points are the same as Tier 2/Stage II engine models
Engine performance
  • Excellent block loading capability
Additional features
  • Self-adjusting poly-vee fan drive
  • Forged-steel connecting rods
  • Replaceable wet-type cylinder liners
  • Either-side service
  • Optional final fuel filter with water separator and water-in-fuel sensor
  • Optional balancer shafts
Specifications
Expand All
Emissions Certifications
CARB
EPA Tier 3
General Engine Data
Model
4045TF280
Number of cylinders
4
Displacement-- L (cu in)
4.5 (275)
Bore and Stroke-- mm (in)
106 x 127 (4.17 x 5.00)
Compression Ratio
19.0:1
Engine Type
In-line, 4-Cycle
Aspiration
Turbocharged
Length - mm (in)
860 (33.9)
Width-- mm (in)
612 (24.1)
Height-- mm (in)
994 (39.1)
Weight, dry - kg (lb)
396 (873)
Performance Data Range
Hz (rpm)
60 ( 1800 )
Generator Efficiency %
88-92
Power Factor
0.8
Engine power - Prime kW
51-57
Engine power - Prime hp
68-76
Engine power - Standby kW
56-63
Engine power - Standby hp
75-84
Rated Fan Power - kW
1.9
Rated Fan Power - hp
2.5
Calculated generator set output - Prime kWe
43-51
Calculated generator set output - Prime kVA
54-64
Calculated generator set output - Standby kWe
48-56
Calculated generator set output - Standby kVA
60-70
