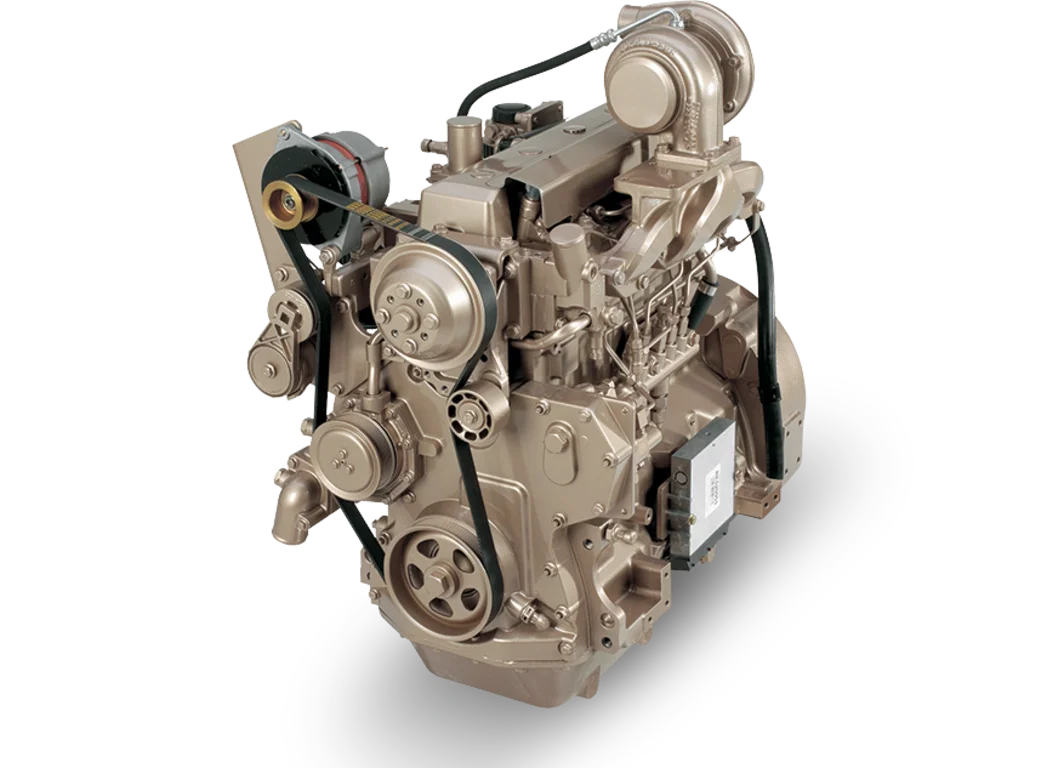

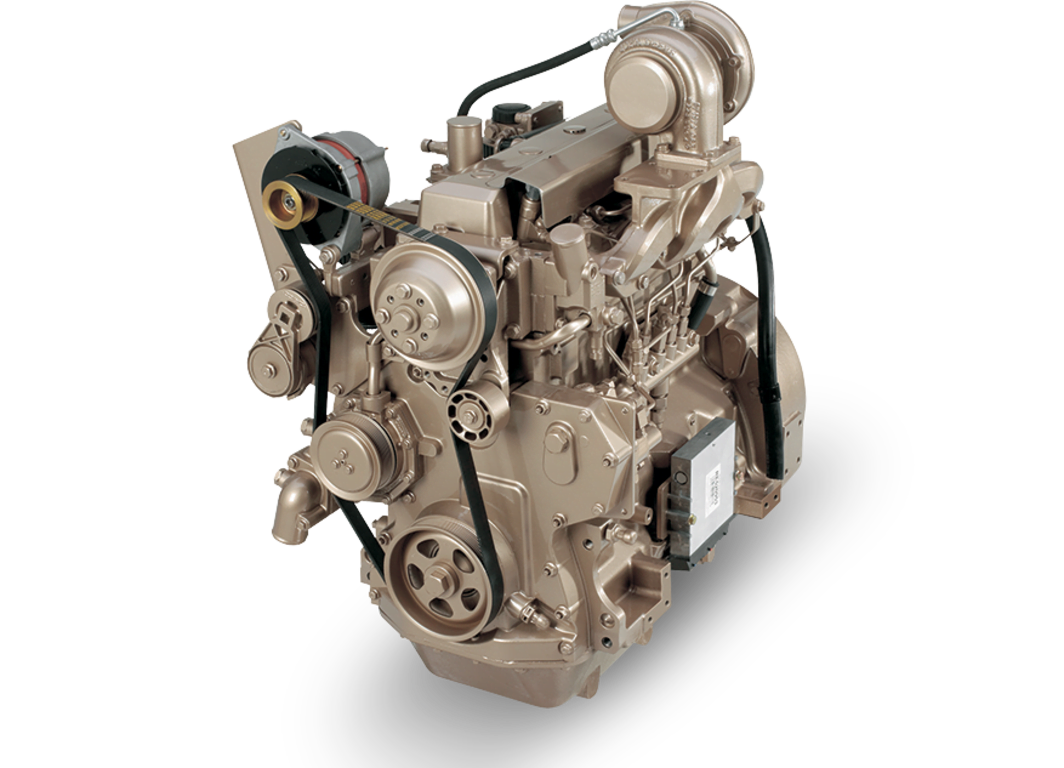

4045TF285 Variable Speed
Industrial Marine Engine
• 4.5L PowerTech™
• 74 kW (99 hp)
Make an Enquiry on This Machine• 74 kW (99 hp)
X
Select Your Closest Emmetts Branch and Ask About This Machine Today!
Features
Run pumps, winches, deck cranes, hydraulics, and generators with a Tier 3 John Deere variable speed Industrial auxiliary engine.
Expand All
2-valve cylinder head
- Cross flow head design that provides excellent breathing from a lower cost two-valve cylinder head
High-pressure common-rail (HPCR) and engine control unit (ECU)
- The HPCR fuel system provides variable common-rail pressure, multiple injections, and higher injection pressures, up to 1600 bar (23,000 psi). It also controls fuel injection timing and provides precise control for the start, duration, and end of the injection.
Fixed geometry turbocharger
- Fixed geometry turbochargers are sized for a specific power range and optimized to provide excellent performance across the entire torque curve. They are also designed to maximize fuel economy between the engine's rated speed and peak torque.
Turbocharged
- In turbocharged engines, the air is pre-compressed. Due to the higher pressure, more air is supplied into the combustion chamber allowing a corresponding increase in fuel injection which results in greater engine output.
Multiple injection strategy
- The HPCR fuel system and engine control unit (ECU) allow for multiple fuel injections. The number of fuel injections, based on speed and load, help contribute to lower combustion temperatures, which reduce the formation of NOx and particulates. The multiple injection strategy also provides an added benefit of noise reduction.
John Deere electronic engine controls
- PowerTech E engines offer electronically controlled fuel systems with improved cold-start performance, precise engine speed control, torque curve shaping and more. Because these systems have less need for redundant sensors, add-on electronic governors, and shutdown devices - they result in a lower total installed cost.
Additional features
- Self-adjusting poly-vee fan drive
- Forged-steel connecting rods
- Replaceable wet-type cylinder liners
- Either-side service
- 500-hour oil change
- Standard gear auxiliary drive
Specifications
Expand All
Emissions Certifications
- IMO Tier 2
- EPA Tier 3
General Engine Data
- Model
- 4045TF285
- Number of cylinders
- 4
- Displacement-- L (cu in)
- 4.5 (275)
- Bore and Stroke-- mm (in)
- 106 x 127 (4.17 x 5.00)
- Compression Ratio
- 19.0:1
- Engine Type
- In-line, 4-Cycle
- Aspiration
- Turbocharged
- Length - mm (in)
- 867 (34.1)
- Width-- mm (in)
- 680 (26.8)
- Height-- mm (in)
- 1055 (41.5)
- Weight, dry - kg (lb)
- 491 (1082)
Performance Data Range
- Heavy Duty - Rated power/Rated speed
- 63.6 kW (85 hp) @2200 rpm
- Heavy Duty - Peak power
- 65 kW (87 hp) @2000 rpm
- Heavy Duty - Power bulge
- 3 % @1900 rpm
- Heavy Duty - Peak torque
- 354 N·m (261 ft-lb) @1600 rpm
- Heavy Duty - Torque rise
- 29%
