Features

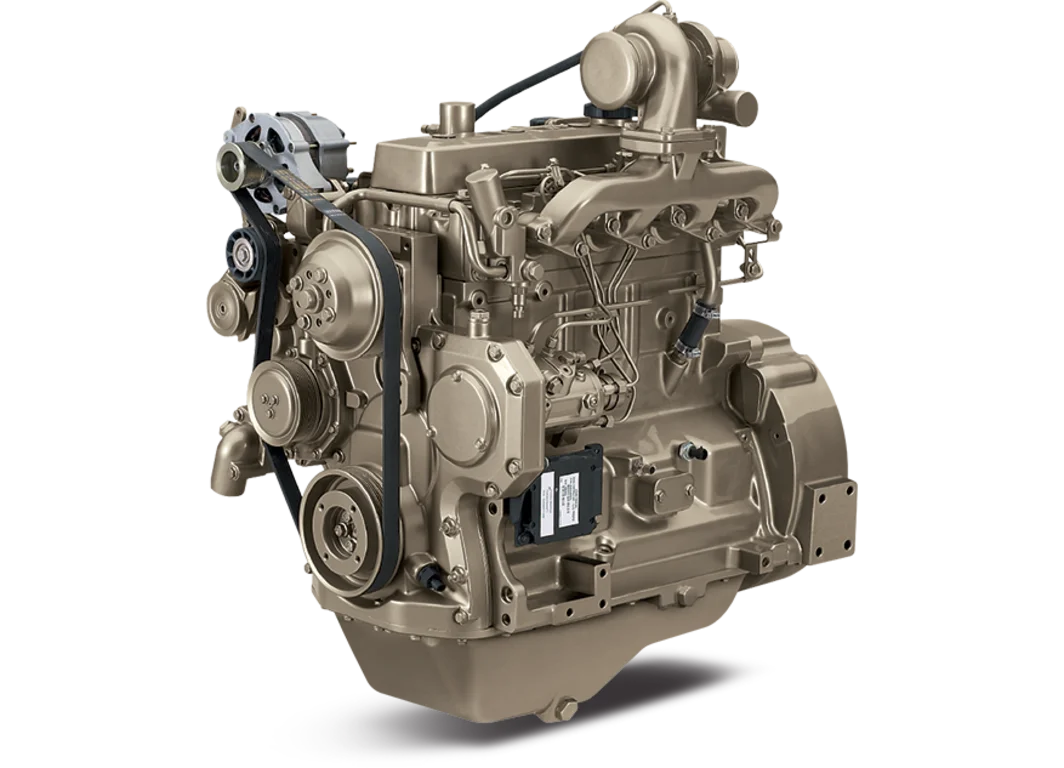

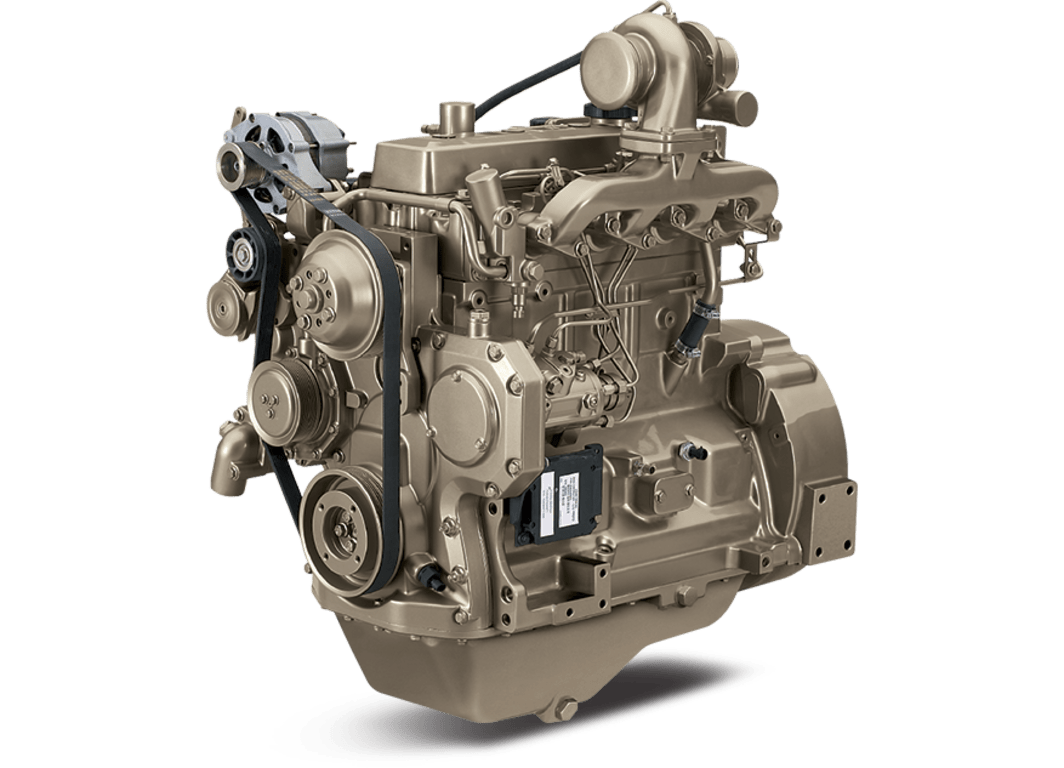

Get details on 74 hp, 55 kW John Deere 4045TF290 industrial diesel engines for OEM equipment, including features, specs, and integrated support.
Expand All
2-valve cylinder head
- flow head design that provides excellent breathing from a lower cost two-valve cylinder head
Mechanical rotary fuel pump
- The timing and fuel injection pressures are optimized to maximize performance and fuel economy at a given rated speed
Fixed geometry turbocharger
- Fixed geometry turbochargers are sized for a specific power range and optimized to provide excellent performance across the entire torque curve. They are also designed to maximize fuel economy between the engine's rated speed and peak torque.
Compact size
- Mounting points are the same as Tier 3/Stage III A engine models
Engine performance
- Meets emissions regulations without the addition of cooled EGR or an exhaust filter
- Jet fuel capable in 24V configuration
Additional features
- Self-adjusting poly-vee fan drive
- Forged-steel connecting rods
- Replaceable wet-type cylinder liners
- Either-side service
- 500-hour oil change
- Optional balancer shafts
Specifications
Expand All
General Engine Data
- Model
- 4045TF290
- Number of cylinders
- 4
- Displacement-- L (cu in)
- 4.5 (275)
- Bore and Stroke-- mm (in)
- 106 x 127 (4.17 x 5.00)
- Compression Ratio
- 19.0:1
- Engine Type
- In-line, 4-Cycle
- Aspiration
- Turbocharged
- Length - mm (in)
- 860 (33.9)
- Width-- mm (in)
- 612 (24.1)
- Height-- mm (in)
- 994 (39.1)
- Weight, dry - kg (lb)
- 396 (873)
Performance Data Range
- Continuous - Rated power/Rated speed
- 55 kW (74 hp) @2400 rpm
- Continuous - Peak power
- 55 kW (74 hp) @2400 rpm
- Continuous - Peak torque
- 265 N·m (195 ft-lb) @1700 rpm
- Continuous - Torque rise
- NA
Emissions Certifications
- EPA Interim Tier 4
