4045TF290

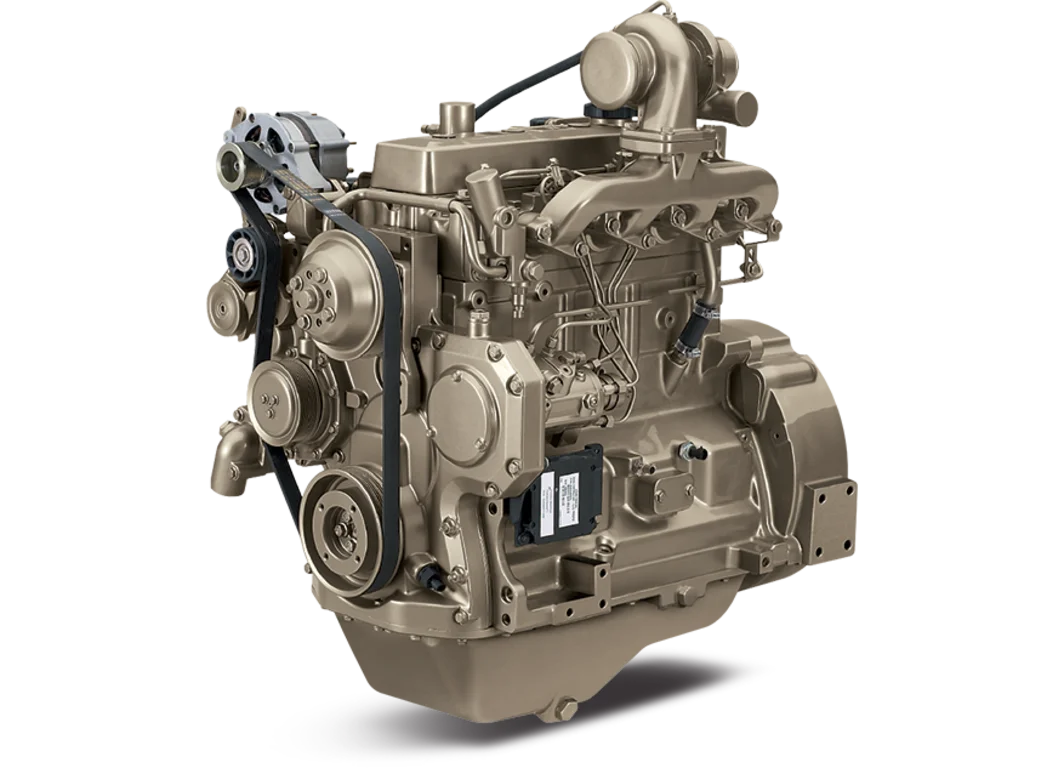

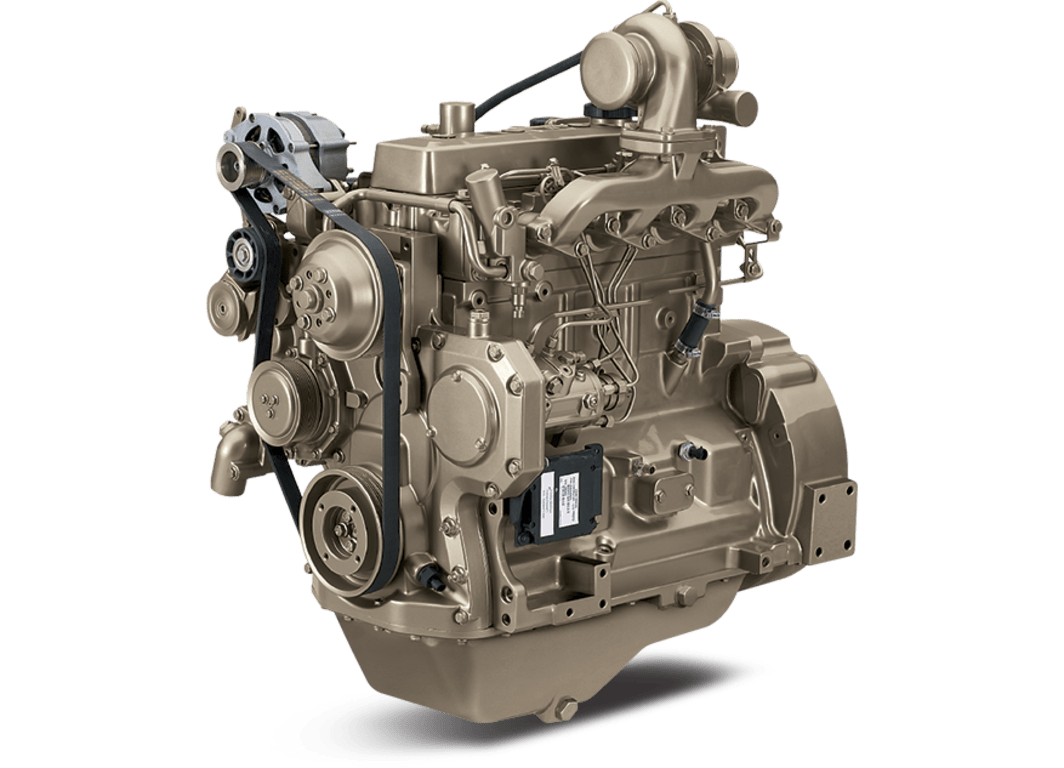

4.5L Generator Drive Engine
- PowerTech™ M
- Standby: 55 kW (74 hp) @ 1800 rpm
- Prime: 50 kW (67 hp) @ 1800 rpm
X
Select Your Closest Emmetts Branch and Ask About This Machine Today!
Features
Meet emissions requirements without sacrificing performance with the 55 kW (74 hp) John Deere 4045TF290 Interim Tier 4 generator drive diesel engine with mechanical fuel systems.
Expand All
Fixed geometry turbocharger
- Fixed geometry turbochargers are sized for a specific power range and optimized to provide excellent performance across the entire torque curve. They are also designed to maximize fuel economy between the engine's rated speed and peak torque.
Turbocharged
- In turbocharged engines, the air is pre-compressed. Due to the higher pressure, more air is supplied into the combustion chamber, allowing a corresponding increase in fuel injection, which results in greater engine output.
Mechanical rotary pump
- The timing and fuel injection pressures are optimized to maximize performance and fuel economy at a given rated speed.
2-valve cylinder head
- Cross-flow head design provides excellent breathing from a lower-cost 2-valve cylinder head.
Specifications
Expand All
Emissions Certifications
- CARB
- EPA Interim Tier 4
General Engine Data
- Model
- 4045TF290
- Number of cylinders
- 4
- Displacement-- L (cu in)
- 4.5 (275)
- Bore and Stroke-- mm (in)
- 106 x 127 (4.17 x 5.00)
- Compression Ratio
- 19.0:1
- Engine Type
- In-line, 4-Cycle
- Aspiration
- Turbocharged
- Length - mm (in)
- 860 (33.9)
- Width-- mm (in)
- 612 (24.1)
- Height-- mm (in)
- 994 (39.1)
- Weight, dry - kg (lb)
- 396 (873)
Performance Data Range
- Hz (rpm)
- 60 ( 1800 )
- Generator Efficiency %
- 88-92
- Power Factor
- 0.8
- Engine power - Prime kW
- 50
- Engine power - Prime hp
- 67
- Engine power - Standby kW
- 55
- Engine power - Standby hp
- 74
- Rated Fan Power - kW
- 1.9
- Rated Fan Power - hp
- 2.5
- Calculated generator set output - Prime kWe
- 42-44
- Calculated generator set output - Prime kVA
- 53-55
- Calculated generator set output - Standby kWe
- 47-49
- Calculated generator set output - Standby kVA
- 59-62
