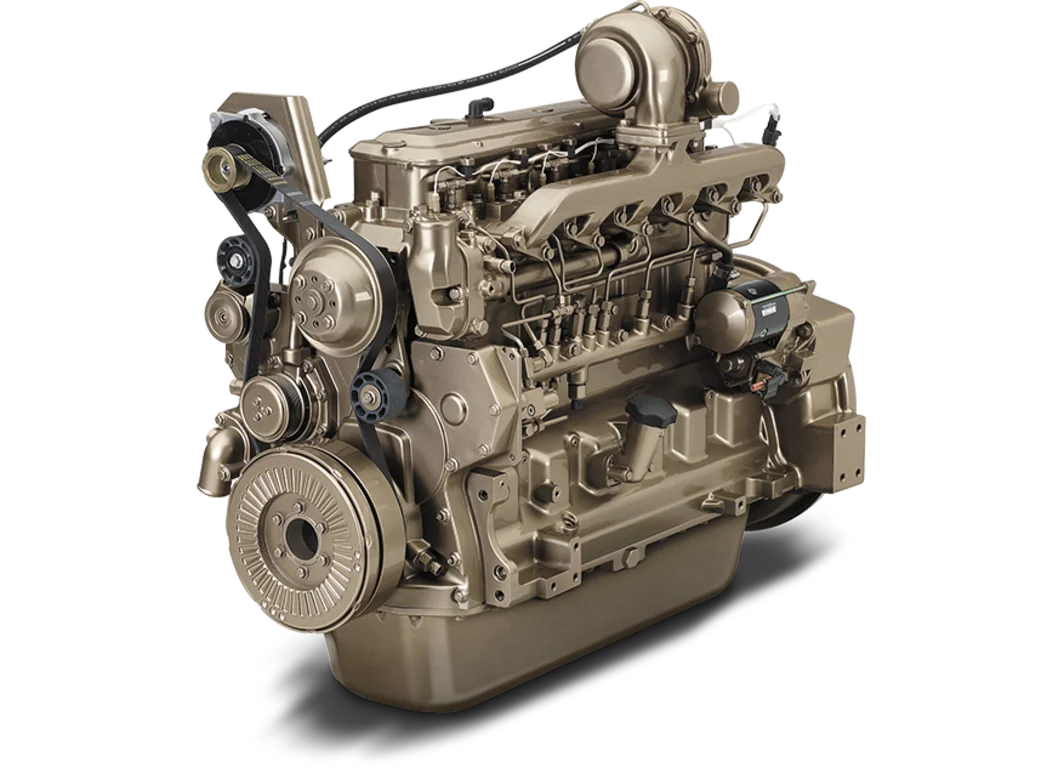

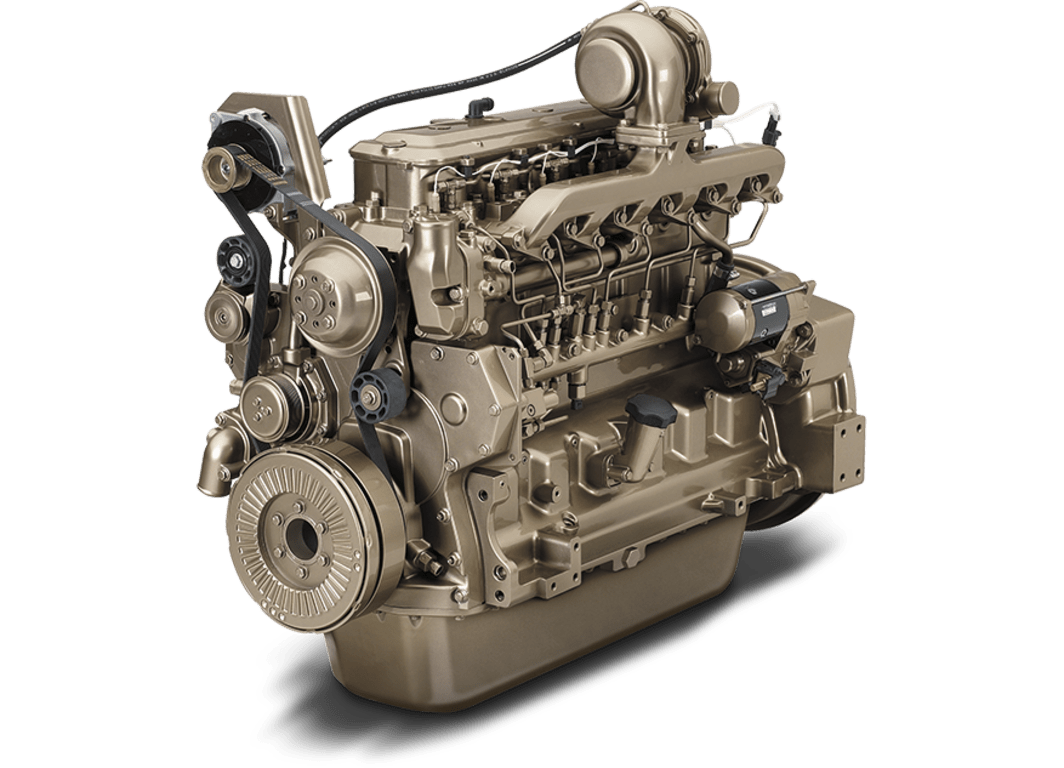

6068HF150
6.8L Generator Drive Engine
- PowerTech™ M
- Standby: 187-210 kW (251-281 hp)
@ 1800 rpm - Prime: 168-189 kW (225-253 hp)
@ 1800 rpm
X
Select Your Closest Emmetts Branch and Ask About This Machine Today!
Features
See how the 187-210 kW (251-281 hp) John Deere 6068HF150 generator drive diesel engine advances the standard of excellence with an electronically controlled or mechanical fuel system in OEM gen-set applications.
Expand All
Dynamically balanced crankshaft
- Induction-hardened journals for long hours of reliable service
- Robust design to drive machinery from the front of the crankshaft
- Supported by seven main bearings
Forged-steel connecting rods
- 45-degree connecting rod/cap-joint design allows the use of large connecting rod bearings for increased durability
Replaceable wet-type cylinder liners
- Provide excellent heat dissipation
- Precision machined for long life
- Rebuild to original specifications
Easy to apply, easy to install
- Front and rear engine mounting pads on the side of the block facilitates installations
- Auxiliary drive rated to 50 hp (37 kW) intermittent for powering ancillary equipment
- Either-side service for filters and service points facilitates packaging
- All connection points in common locations make it easy to install or package
Compact size
- High mount or low mount turbocharger position to meet packaging requirements
World-class performance
- Excellent fuel economy and low oil consumption
Fuel system controls
- Proven and Reliable Mechanical Governor
- 3-5% Droop Governing
- 12V or 24V Electric Shutoff
Specifications
Expand All
Emissions Certifications
- CARB
- EPA Tier 1
General Engine Data
- Model
- 6068HF150
- Number of cylinders
- 6
- Displacement-- L (cu in)
- 6.8 (415)
- Bore and Stroke-- mm (in)
- 106 x 127 (4.17 x 5.00)
- Compression Ratio
- 17.0:1
- Engine Type
- In-line, 4-Cycle
- Aspiration
- Turbocharged and air-to-air aftercooled
- Length - mm (in)
- 1141 (44.9)
- Width-- mm (in)
- 623 (24.5)
- Height-- mm (in)
- 1009 (39.7)
- Weight, dry - kg (lb)
- 569 (1254)
Performance Data Range
- Hz (rpm)
- 60 ( 1800 )
- Generator Efficiency %
- 88-92
- Power Factor
- 0.8
- Engine power - Prime kW
- 168-189
- Engine power - Prime hp
- 225-253
- Engine power - Standby kW
- 187-210
- Engine power - Standby hp
- 251-282
- Rated Fan Power - kW
- 9.3-10.4
- Rated Fan Power - hp
- 12.5-13.9
- Calculated generator set output - Prime kWe
- 139-164
- Calculated generator set output - Prime kVA
- 174-205
- Calculated generator set output - Standby kWe
- 156-184
- Calculated generator set output - Standby kVA
- 195-230
