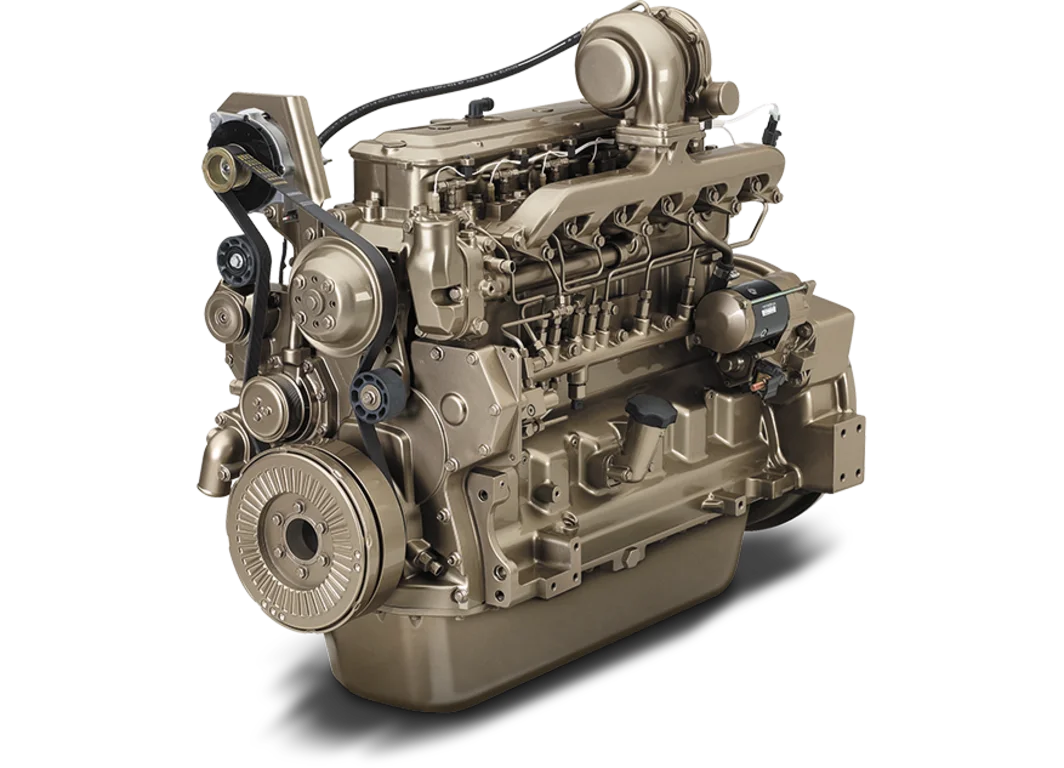

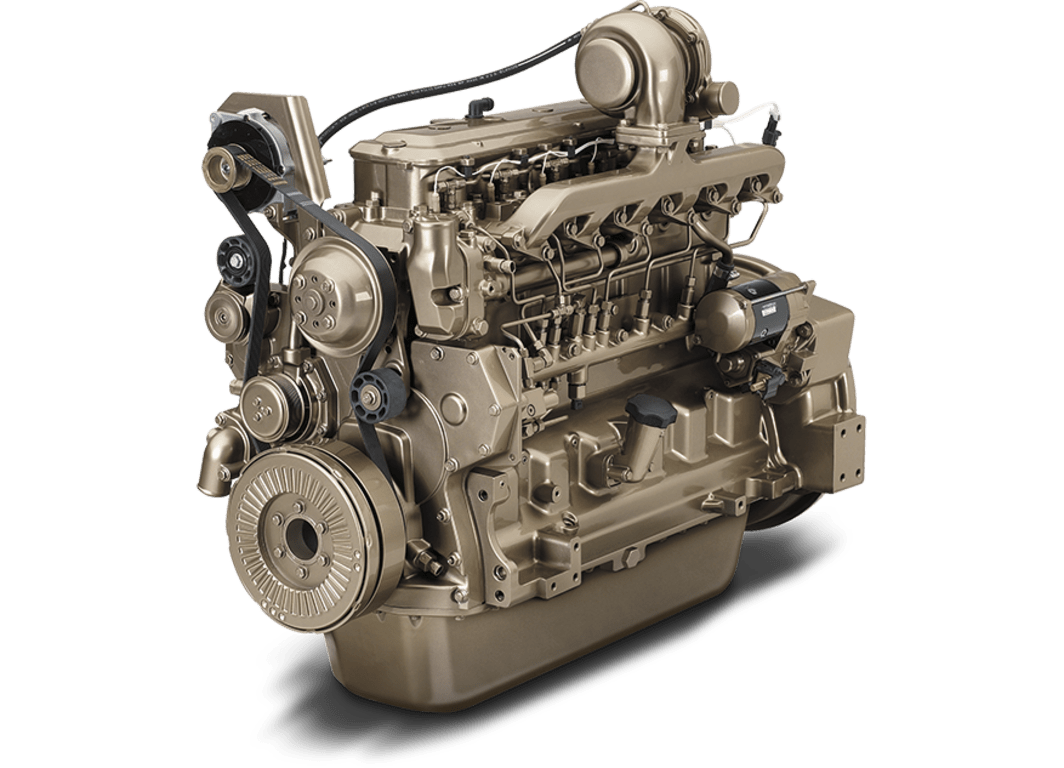

6068HF275
6.8L Generator Drive Engine
- PowerTech™ M
- Standby: 164-210 kW (220-281 hp) @ 1800 rpm
- Prime: 149-180 kW (200-241 hp) @ 1800 rpm
X
Select Your Closest Emmetts Branch and Ask About This Machine Today!
Features
See how the 164-210 kW (220-281 hp) Tier 2 John Deere 6068HF275 generator drive diesel engine advances the standard of excellence with an electronically controlled or mechanical fuel system in OEM gen-set applications.
Expand All
Dynamically balanced crankshaft
- Induction-hardened journals for long hours of reliable service
- Robust design to drive machinery from the front of the crankshaft
- Supported by seven main bearings
Forged-steel connecting rods
- 45-degree connecting rod/cap-joint design allows the use of large connecting rod bearings for increased durability
Replaceable wet-type cylinder liners
- Provide excellent heat dissipation
- Precision machined for long life
- Rebuild to original specifications
Easy to apply, easy to install
- Front and rear engine mounting pads on the side of the block facilitates installation
- Auxiliary drive rated to 50 hp (37 kW) intermittent for powering ancillary equipment
- Either-side service for filters and service points facilitates packaging
- All connection points in common locations make it easy to install or package
Compact size
- Short length is ideal for both skid and packaged installations
- High mount or low mount turbocharger position to meet packaging requirements
World-class performance
- Excellent fuel economy and low oil consumption
Fuel system controls
- Electronically controlled rotary fuel injection pump with variable timing resulting in excellent fuel economy and excellent performance
- Self diagnostics and protection
- 3-5% Droop Governing
- 12V or 24V Electric Shutoff
Specifications
Expand All
Emissions Certifications
- CARB
- EPA Tier 2
General Engine Data
- Model
- 6068HF275
- Number of cylinders
- 6
- Displacement-- L (cu in)
- 6.8 (415)
- Bore and Stroke-- mm (in)
- 106 x 127 (4.17 x 5.00)
- Compression Ratio
- 17.0:1
- Engine Type
- In-line, 4-Cycle
- Aspiration
- Turbocharged and air-to-air aftercooled
- Length - mm (in)
- 1116 (43.9)
- Width-- mm (in)
- 623 (24.5)
- Height-- mm (in)
- 1012 (39.8)
- Weight, dry - kg (lb)
- 587 (1294)
Performance Data Range
- Hz (rpm)
- 60 ( 1800 )
- Generator Efficiency %
- 88-92
- Power Factor
- 0.8
- Engine power - Prime kW
- 149-191
- Engine power - Prime hp
- 200-256
- Engine power - Standby kW
- 164-210
- Engine power - Standby hp
- 220-282
- Rated Fan Power - kW
- 8.2-10.5
- Rated Fan Power - hp
- 11.0-14.1
- Calculated generator set output - Prime kWe
- 124-166
- Calculated generator set output - Prime kVA
- 155-207
- Calculated generator set output - Standby kWe
- 137-184
- Calculated generator set output - Standby kVA
- 171-229
