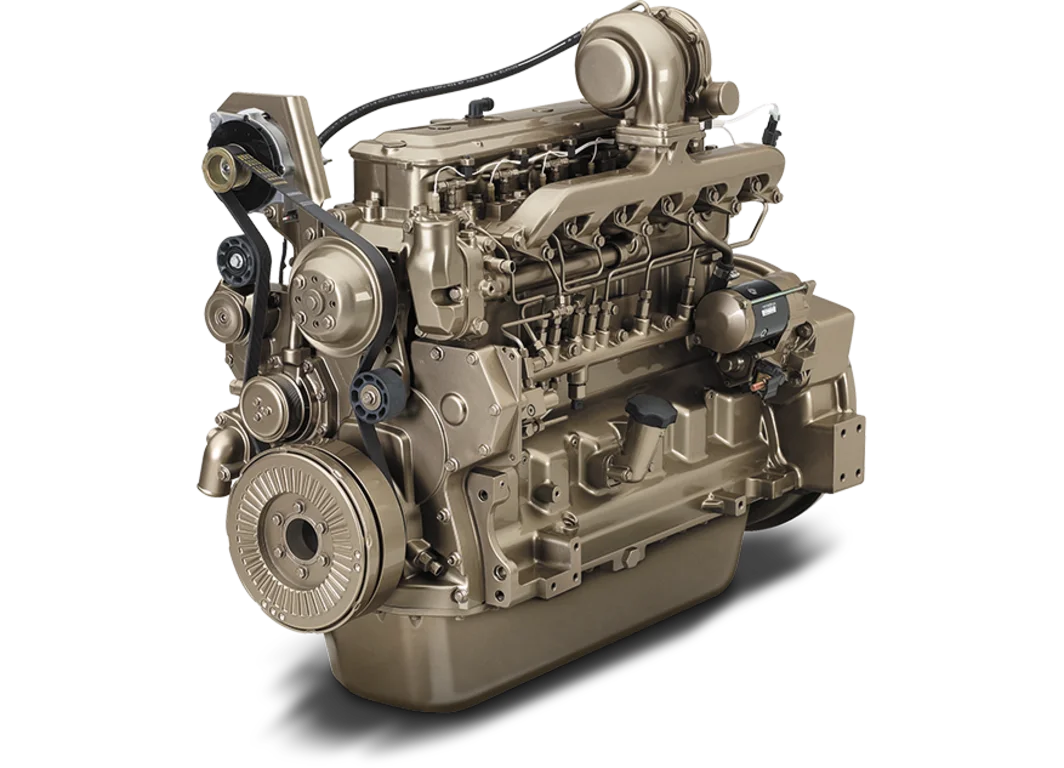

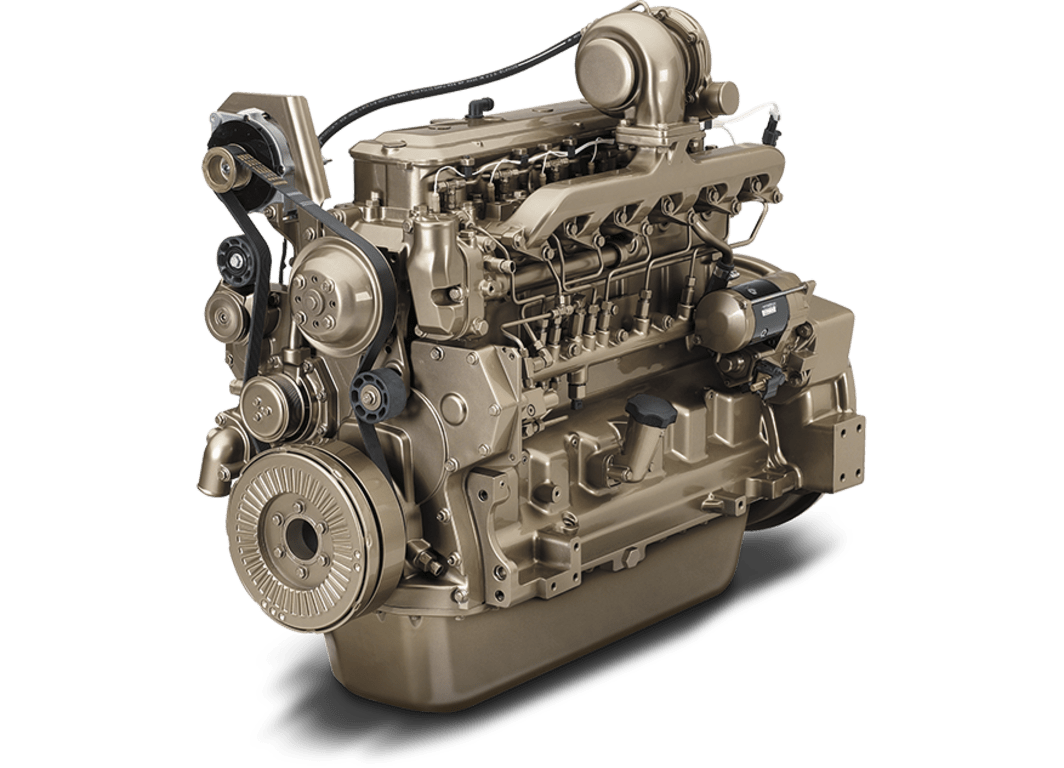

6068HF275
6.8L Generator Drive Engine
- PowerTech™ M
- Standby: 123 kW (165 hp) @1500 rpm
- Prime: 111 kW (149 hp) @1500 rpm
X
Select Your Closest Emmetts Branch and Ask About This Machine Today!
Features
See how the 123 kW (165 hp) EU Stage II John Deere 6068HF275 generator drive diesel engine advances the standard of excellence with an electronically controlled or mechanical fuel system in OEM gen-set applications.
Expand All
Dynamically balanced crankshaft
- Induction-hardened journals for long hours of reliable service
- Robust design to drive machinery from the front of the crankshaft
- Supported by seven main bearings
Forged-steel connecting rods
- 45-degree connecting rod/cap-joint design allows the use of large connecting rod bearings for increased durability
Replaceable wet-type cylinder liners
- Provide excellent heat dissipation
- Precision machined for long life
- Rebuild to original specifications
Easy to apply, easy to install
- Front and rear engine mounting pads on the side of the block facilitates installations
- Either-side service for filters and service points facilitates packaging
- All connection points in common locations make it easy to install or package
Compact size
- High mount or low mount turbocharger position to meet packaging requirements
World-class performance
- Excellent fuel economy and low oil consumption
Fuel system controls
- Proven and Reliable Mechanical Governor
- 12V or 24V Electric Shutoff
Specifications
Expand All
General Engine Data
- Model
- 6068HF275
- Number of cylinders
- 6
- Displacement-- L (cu in)
- 6.8 (415)
- Bore and Stroke-- mm (in)
- 106 x 127 (4.17 x 5.00)
- Compression Ratio
- 17.0:1
- Engine Type
- In-line, 4-Cycle
- Aspiration
- Turbocharged and air-to-air aftercooled
- Length - mm (in)
- 1116 (43.9)
- Width-- mm (in)
- 623 (24.5)
- Height-- mm (in)
- 1012 (39.8)
- Weight, dry - kg (lb)
- 587 (1294)
Performance Data Range
- Hz (rpm)
- 50 ( 1500 )
- Generator Efficiency %
- 88-92
- Power Factor
- 0.8
- Engine power - Prime kW
- 111
- Engine power - Prime hp
- 149
- Engine power - Standby kW
- 123
- Engine power - Standby hp
- 165
- Rated Fan Power - kW
- 4.5
- Rated Fan Power - hp
- 6
- Calculated generator set output - Prime kWe
- 95-99
- Calculated generator set output - Prime kVA
- 118-124
- Calculated generator set output - Standby kWe
- 105-110
- Calculated generator set output - Standby kVA
- 132-138
Emissions Certifications
- EU Stage II
