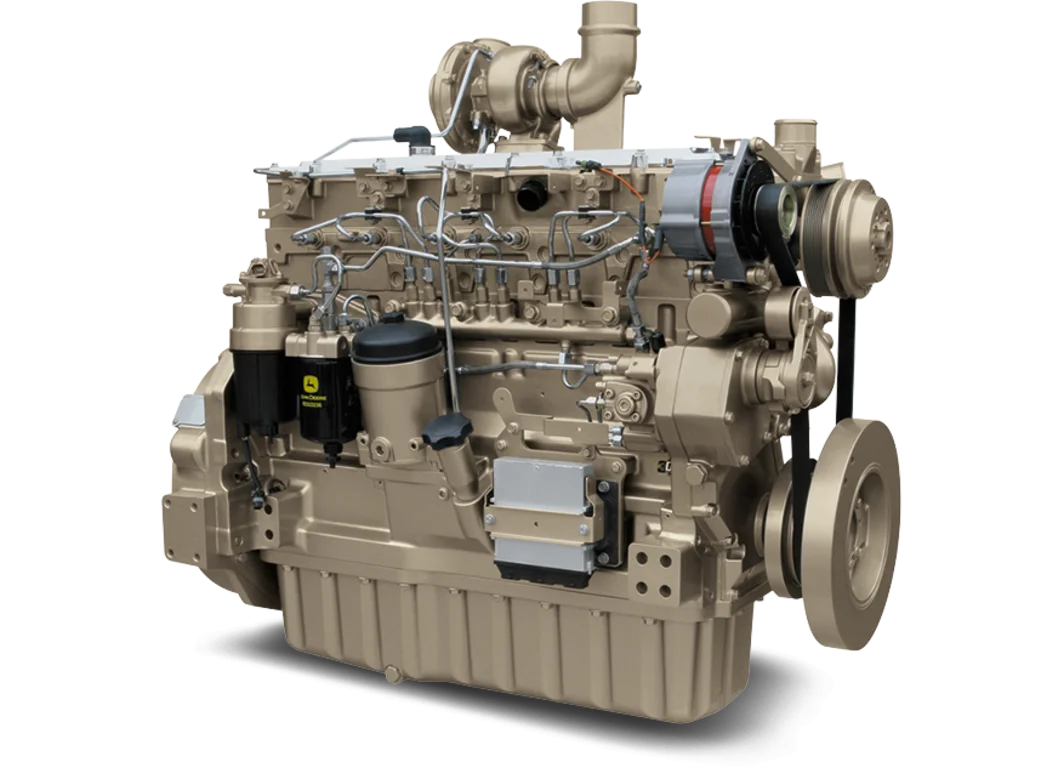

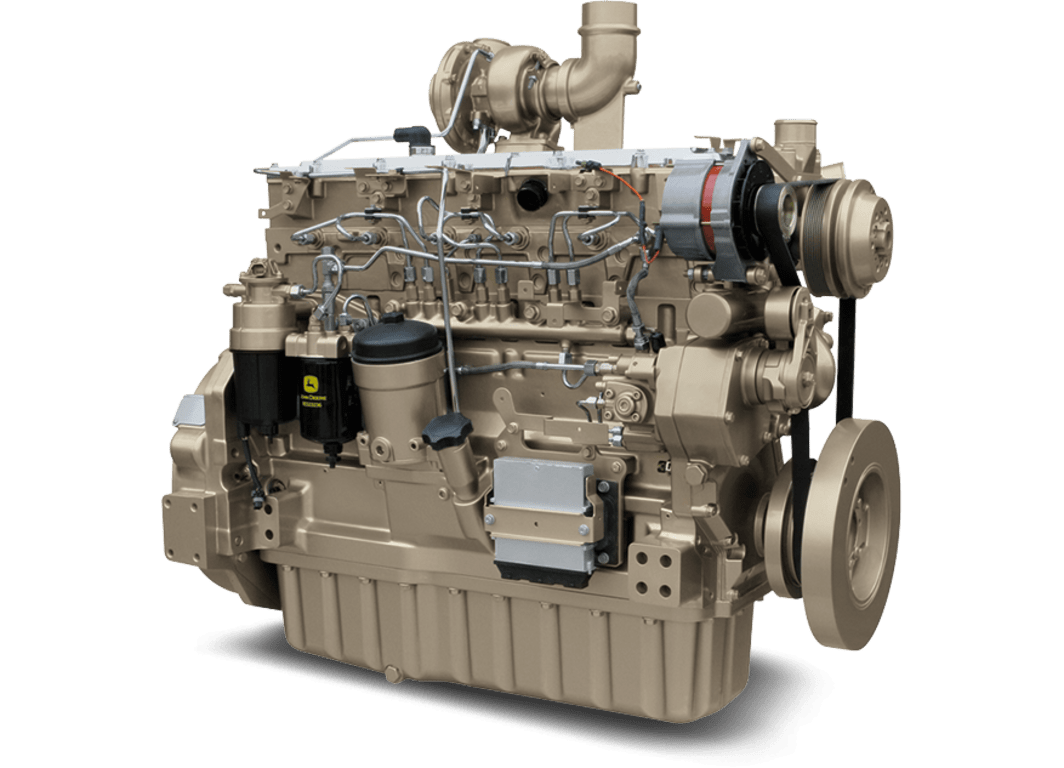

6090HF484
9.0L Generator Drive Engine
- PowerTech™ E
- Standby: 229-315 kW (307-422 hp) @ 1800 rpm
- Prime: 208-287 kW (279-385 hp) @ 1800 rpm
X
Select Your Closest Emmetts Branch and Ask About This Machine Today!
Features
See how the 229-315 kW (346-422 hp) Tier 3 John Deere 6090HF484 generator drive diesel engine with fixed geometry turbocharger provides excellent breathing from a lower-cost 2-valve cylinder head for OEM gen-set applications.
Expand All
Fixed geometry turbocharger
- Fixed geometry turbochargers are precisely matched to the power level and application
4-valve cylinder head
- Provides excellent airflow resulting in better transient response
- U-flow design
Air-to-air aftercooled
- Most efficient method of cooling intake air to help reduce engine emissions while improving transient response time
- Enables an engine to meet emissions with better fuel economy and the lowest installed costs
High pressure common rail fuel system
- HPCR: Higher injection pressures, up to 1600 bar (23,500 PSI) variable injection pressure, variable timing control, multiple injections and controls the duration of injection
Compact size
- Mounting points for Tier 3/Stage III A engine models same as Tier 2/Stage 2 engine models
Engine performance
- Block loading capability provided with standard electronic governor control
John Deere electronic controls
- Electronic engine controls monitor critical engine functions, providing warning and/or shutdown to prevent costly repairs and eliminate the need for add-on governing components, all lowering total installed costs.
Additional features
- Single-piece low friction piston; directed top-liner cooling; gear-driven auxiliary drive; optional 500-hour oil change; self-adjusting poly-vee fan-drive; optional rear PTO; engine mounted ECU
Specifications
Expand All
Emissions Certifications
- CARB
- EPA Tier 3
General Engine Data
- Model
- 6090HF484
- Number of cylinders
- 6
- Displacement-- L (cu in)
- 9.0 (549)
- Bore and Stroke-- mm (in)
- 118.4 x 136.0 (4.66 x 5.35)
- Compression Ratio
- 16.0 : 1
- Engine Type
- In-line, 4-Cycle
- Aspiration
- Turbocharged and air-to-air aftercooled
- Length - mm (in)
- 1208 (47.6)
- Width-- mm (in)
- 630 (24.8)
- Height-- mm (in)
- 1113 (43.8)
- Weight, dry - kg (lb)
- 901 (1986)
Performance Data Range
- Hz (rpm)
- 60 ( 1800 )
- Generator Efficiency %
- 90-94
- Power Factor
- 0.8
- Engine power - Prime kW
- 206-284
- Engine power - Prime hp
- 276-381
- Engine power - Standby kW
- 229-315
- Engine power - Standby hp
- 307-422
- Rated Fan Power - kW
- 13.74-25.3
- Rated Fan Power - hp
- 18.4-33.9
- Calculated generator set output - Prime kWe
- 176-253
- Calculated generator set output - Prime kVA
- 220-316
- Calculated generator set output - Standby kWe
- 194-278
- Calculated generator set output - Standby kVA
- 242-348
