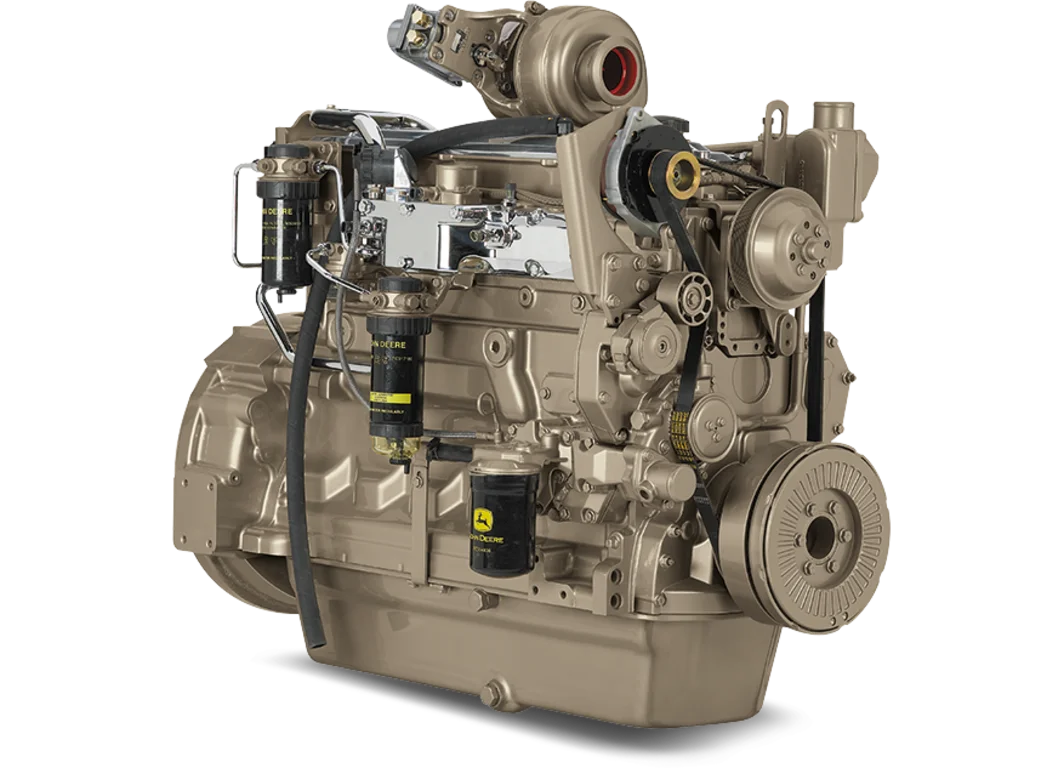

6090HFG86
9.0L Generator Drive Engine
- PowerTech™ E
- Standby: 345 kW (462 hp) @ 1800 rpm
- Emergency stationary applications only
X
Select Your Closest Emmetts Branch and Ask About This Machine Today!
Features
See how the 345 kW (462 hp) Tier 3 John Deere 6090HFG86 generator drive diesel engine with fixed geometry turbocharger provides excellent breathing from a lower-cost 2-valve cylinder head for OEM gen-set applications.
Expand All
Fixed geometry turbocharger
- Fixed geometry turbochargers are precisely matched to the power level and application
4-valve cylinder head
- Provides excellent airflow resulting in better transient response
- U-flow design
Air-to-air aftercooled
- Most efficient method of cooling intake air to help reduce engine emissions while improving transient response time
- Enables an engine to meet emissions with better fuel economy and the lowest installed costs
High pressure common rail fuel system
- HPCR: Higher injection pressures, up to 1600 bar (23,500 PSI) variable injection pressure, variable timing control, multiple injections and controls the duration of injection
Compact size
- Mounting points for Tier 3/Stage III A engine models same as Tier 2/Stage 2 engine models
John Deere electronic controls
- Electronic engine controls monitor critical engine functions, providing warning and/or shutdown to prevent costly repairs and eliminate the need for add-on governing components, all lowering total installed costs.
Additional features
- Single-piece low friction piston
- Directed top-liner cooling
- Gear-driven auxiliary drive
- Optional 500-hour oil change
- Self-adjusting poly-vee fan-drive
- Optional rear PTO
- Engine mounted ECU
Specifications
Expand All
Emissions Certifications
General Engine Data
- Model
- 6090HFG86
- Number of cylinders
- 6
- Displacement-- L (cu in)
- 9.0 (549)
- Bore and Stroke-- mm (in)
- 118.4 x 136 (4.66 x 5.35)
- Compression Ratio
- 16.0 : 1
- Engine Type
- In-line, 4-cycle
- Aspiration
- Turbocharged and air-to-air aftercooled
- Length - mm (in)
- 1208 (47.6)
- Width-- mm (in)
- 635 (25.0)
- Height-- mm (in)
- 1132 (44.6)
- Weight, dry - kg (lb)
- 841 (1854)
Performance Data Range
- Hz (rpm)
- 60 ( 1800 )
- Generator Efficiency %
- 90-94
- Power Factor
- 0.8
- Engine power - Prime kW
- 0
- Engine power - Prime hp
- 0
- Engine power - Standby kW
- 345
- Engine power - Standby hp
- 463
- Rated Fan Power - kW
- 13.8
- Rated Fan Power - hp
- 18.5
- Calculated generator set output - Prime kWe
- 0
- Calculated generator set output - Prime kVA
- 0
- Calculated generator set output - Standby kWe
- 298-311
- Calculated generator set output - Standby kVA
- 373-389
