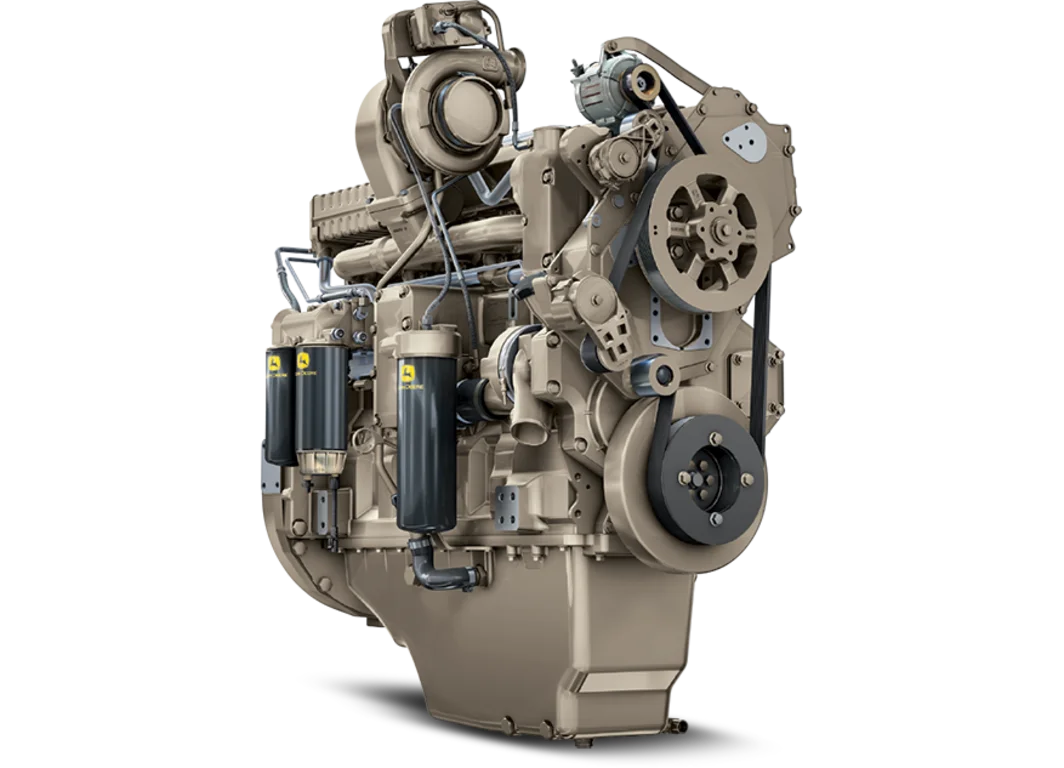

6135HF485
13.5L Generator Drive Engine
  • PowerTech™ Plus
  • Standby: 345-460 kW (462-616 hp) @ 1800 rpm
  • Prime: 311-419 kW (417-561 hp) @ 1800 rpm
Make an Enquiry on This Machine
Features
See how the Tier 3 345-460 kW (462-616 hp) John Deere 6135HF485 generator drive diesel engine with fixed geometry turbocharger provides excellent breathing from a lower-cost 2-valve cylinder head for OEM gen-set applications.
Expand All
Jet fuel capable
  • The John Deere jet fuel capable engines run on military, arctic, and aviation fuel, including Jet A, Jet A-1, JP-5, and JP-8. If you need to switch back to diesel fuel, just fill up the tank and go.
4-valve cylinder head
  • The 4-valve cylinder head provides excellent airflow
  • Cross flow design
Electronic unit injectors (EUI) and engine control unit (ECU)
  • The HPCR fuel system provides variable common rail pressure, multiple injections, and higher injection pressures, up to 1,600 bar (23,000 psi). It also controls fuel injection timing and provides precise control for the start, duration, and end of injection.
Cooled exhaust gas recirculation (EGR)
  • Cools and mixes measured amounts of cooled exhaust gas with incoming fresh air to lower peak combustion temperatures, thereby reducing NOx
Variable geometry turbocharger-VGT
  • Varies exhaust pressure based on load and speed to insure proper EGR flow, quicker transient response for exceptional block-loading, and best-in-class fuel economy
Air-to-air aftercooled
  • This is the most efficient method of cooling intake air to help reduce engine emissions while maintaining low-speed torque, transient response time, and peak torque. It enables an engine to meet emissions regulations with better fuel economy and the lowest installed costs
Compact size
  • Horsepower/displacement ratio is best-in-class
  • Lower installed cost
  • Mounting points are the same as Tier 2/Stage II engine models
John Deere electronic engine controls
  • Monitors critical engine functions providing warning and/or shutdown to prevent costly engine repairs;eliminates need for add-on governing components; all lowering total installed costs. Snapshot diagnostic data that can be retrieved using commonly available diagnostic service tools
  • New common wiring interface connector for vehicles or available OEM instrumentation packages; new solid conduit and "T" connectors to reduce wiring stress, greater durability and improved appearance
  • Factory installed engine mounted ECU or remote mounted ECU, wiring harness and associated components
  • Industry standard SAE J1939 interface which communicates with other vehicle systems, eliminating redundant sensors and reducing vehicle installed cost
Additional features
  • Self adjusting poly-vee fan drive
  • Either-side service
  • Low-pressure fuel system with "auto-prime" feature
  • Directed top-liner cooling
  • 500-hour oil change
Specifications
Expand All
Emissions Certifications
CARB
EPA Tier 3
General Engine Data
Model
6135HF485
Number of cylinders
6
Displacement-- L (cu in)
13.5 (824)
Bore and Stroke-- mm (in)
132 x 165 (5.20 x 6.50)
Compression Ratio
16.0:1
Engine Type
In-line, 4-Cycle
Aspiration
Turbocharged and air-to-air aftercooled
Length - mm (in)
1334 (52.5)
Width-- mm (in)
855 (33.7)
Height-- mm (in)
1512 (59.5)
Weight, dry - kg (lb)
1493 (3291)
Performance Data Range
Hz (rpm)
60 ( 1800 )
Generator Efficiency %
90-94
Power Factor
0.8
Engine power - Prime kW
311-419
Engine power - Prime hp
417-562
Engine power - Standby kW
345-460
Engine power - Standby hp
463-617
Rated Fan Power - kW
18.98-25.3
Rated Fan Power - hp
25.5-33.9
Calculated generator set output - Prime kWe
264-372
Calculated generator set output - Prime kVA
330-465
Calculated generator set output - Standby kWe
293-409
Calculated generator set output - Standby kVA
367-511
