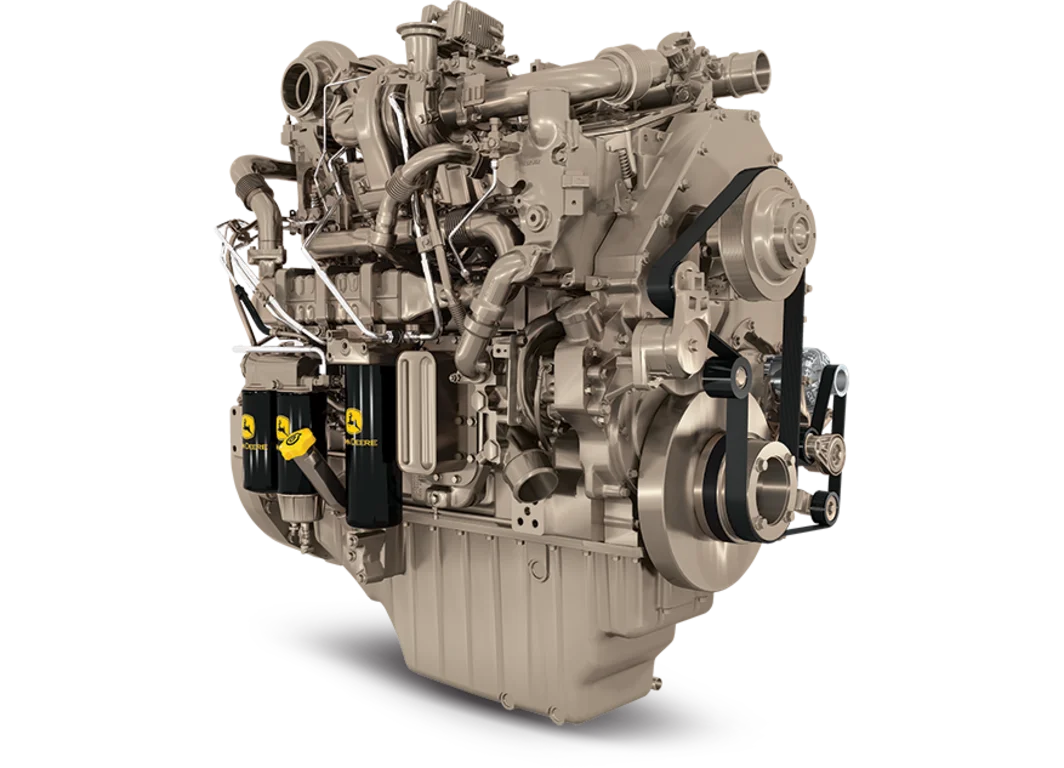

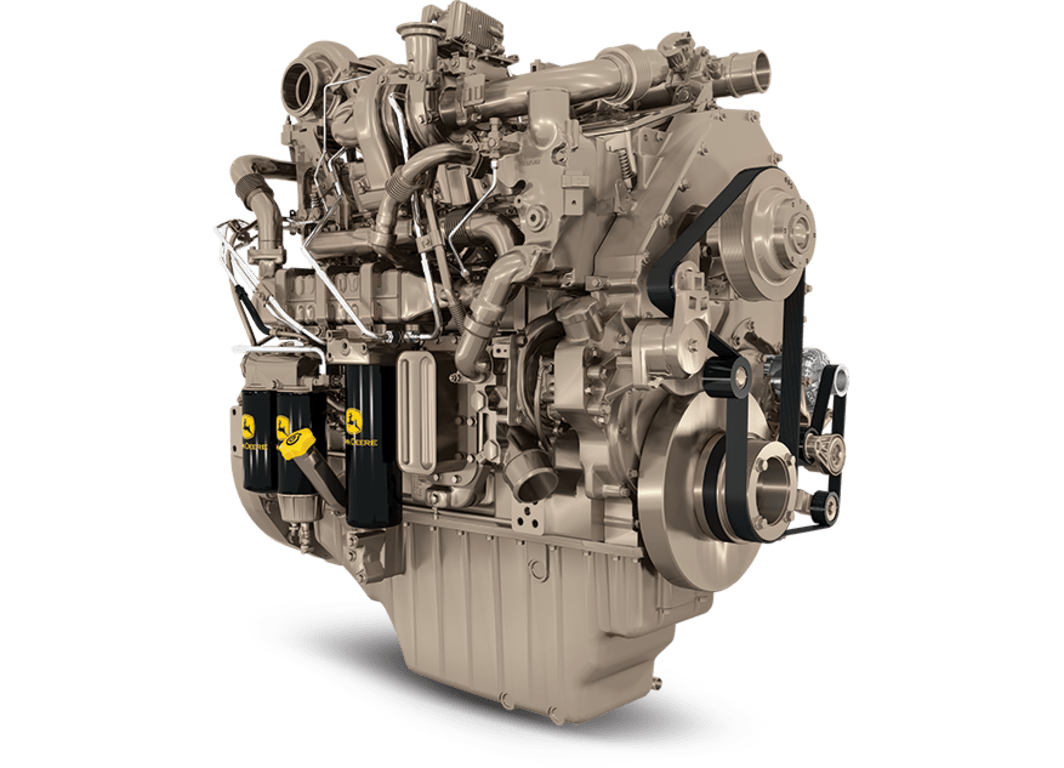

6135HFG09
13.5L Generator Drive Engine
- PowerTech™ PSS
- Standby: 356-473 kW (477-634 hp) @ 1800 rpm
- Prime: 326-433 kW (437-580 hp) @ 1800 rpm
X
Select Your Closest Emmetts Branch and Ask About This Machine Today!
Features
See how the powerful and cost-effective Final Tier 4 John Deere 6135HFG09 generator drive diesel engine with 356-473 kW (477-634 hp) can benefit OEM gen-set applications.
Expand All
Series turbocharger
- Fresh air is first drawn into the low-pressure turbocharger (fixed geometry) and compressed to a higher pressure. The compressed air is then drawn into the high-pressure turbocharger (VGT), where the air is further compressed. The high-pressure air is then routed through a charge air cooler and into the engine's intake manifold. By splitting the work between two turbochargers, both can operate at peak efficiency and at slower rotating speeds — lowering stress on turbocharger components and improving reliability. Series turbocharging delivers more boost pressure than single turbocharger configurations which results in higher power density, improved low-speed torque, and improved high altitude operation.
Cooled exhaust gas recirculation (EGR)
- EGR cools and mixes measured amounts of cooled exhaust gas with incoming fresh air to lower peak combustion temperatures, thereby reducing NOx.
Exhaust filters
- This system is the Best Available Control Technology (BACT) for particulates that delivers premium block load acceptance characteristics and utilize a catalyzed exhaust filter that contains a diesel oxidation catalyst (DOC) and a diesel particulate filter (DPF). The DOC reacts with exhaust gases to reduce carbon monoxide, hydrocarbons, and some particulate matter (PM). The downstream DPF traps and holds the remaining PM. Trapped particles are oxidized within the DPF through a continuous cleaning process called passive regeneration. Passive regeneration occurs during normal operating conditions when heat from the exhaust stream and catalysts within the exhaust filter trigger the oxidation of the trapped PM. If passive regeneration cannot be achieved due to low temperature, load, or speed, then PM is removed using active regeneration — an automatic cleaning process controlled by the exhaust temperature management system.
Selective catalytic reduction (SCR)
- John Deere engines feature an SCR system that utilizes a urea-based additive, sometimes referred to as diesel exhaust fluid (DEF). The ammonia in the urea reacts with engine exhaust gases in the SCR catalyst to reduce NOx — converting it to nitrogen and water vapor.
Electronic unit injectors (EUI) and engine control unit (ECU)
- The EUI fuel system provides higher injection pressures up to 2,350 bar (34,000 psi). It also controls fuel injection timing and provides precise control for start, duration, and end of injection.
4-valve cylinder head
- The 4-valve cylinder head provides excellent airflow resulting in greater low-speed torque and better transient response time by utilizing a cross-flow design.
Air-to-air aftercooled
- This is the most efficient method of cooling intake air to help reduce engine emissions while maintaining low-speed torque, transient response time, and peak torque. It enables an engine to meet emissions regulations with better fuel economy and the lowest installed costs.
Compact size
- Lower installed cost
- Mounting points are the same as previous engine models
John Deere electronic engine controls
- Faster engine control unit (ECU) manages both the engine and the aftertreatment
- Premium software option integrates with equipment or vehicles to reduce engineering and installation costs
- Electronic engine controls can be engine or remote mounted
Additional features
- Gear-driven auxiliary drives and water pump
- 500-hour oil change
- Self-adjusting poly-vee fan drive
- Optional factory installed variable-speed fan drive improves fuel economy and reduces noise levels
- RH and LH engine mounted final fuel filters
- Single piece low-friction steel pistons with integrated oil cooled gallery
- Directed top-liner cooling Low-pressure fuel system with electrical transfer pump and "auto-prime" feature
- Optional Rear PTO
Specifications
Expand All
Emissions Certifications
- CARB
- EPA Tier 4
General Engine Data
- Model
- 6135HFG09
- Number of cylinders
- 6
- Displacement-- L (cu in)
- 13.5 (824)
- Bore and Stroke-- mm (in)
- 132 x 165 (5.20 x 6.50)
- Compression Ratio
- 15.3 : 1
- Engine Type
- In-line, 4 Cycle
- Aspiration
- Turbocharged and air-to-air aftercooled
- Length - mm (in)
- 1501 (59.1)
- Width-- mm (in)
- 955 (37.6)
- Height-- mm (in)
- 1551 (61.1)
- Weight, dry - kg (lb)
- 1500 (3307)
Doc/Dpf Dimensions
- Size 7 - Diameter - mm (in)
- 331.7 (13.1)
- Size 7 - Length - mm (in)
- 838 (33.0)
- Size 7 - Weight - kg (lb)
- 66.4 (146.4)
Scr Catalyst Dimensions
- Size 7 - Diameter -mm(in)
- 380.8 (15.0)
- Size 7 - Weight -kg(lb)
- 67.5 (148.8)
- Size 7 - Length -mm(in)
- 860.1 (33.9)
Performance Data Range
- Hz (rpm)
- 60 ( 1800 )
- Generator Efficiency %
- 90-95
- Power Factor
- 0.8
- Engine power - Prime kW
- 326-433
- Engine power - Prime hp
- 437-580
- Engine power - Standby kW
- 356-473
- Engine power - Standby hp
- 477-634
- Rated Fan Power - kW
- 21.4-28.4
- Rated Fan Power - hp
- 28.7-38.1
- Calculated generator set output - Prime kWe
- 274-384
- Calculated generator set output - Prime kVA
- 342-480
- Calculated generator set output - Standby kWe
- 301-422
- Calculated generator set output - Standby kVA
- 376-528
