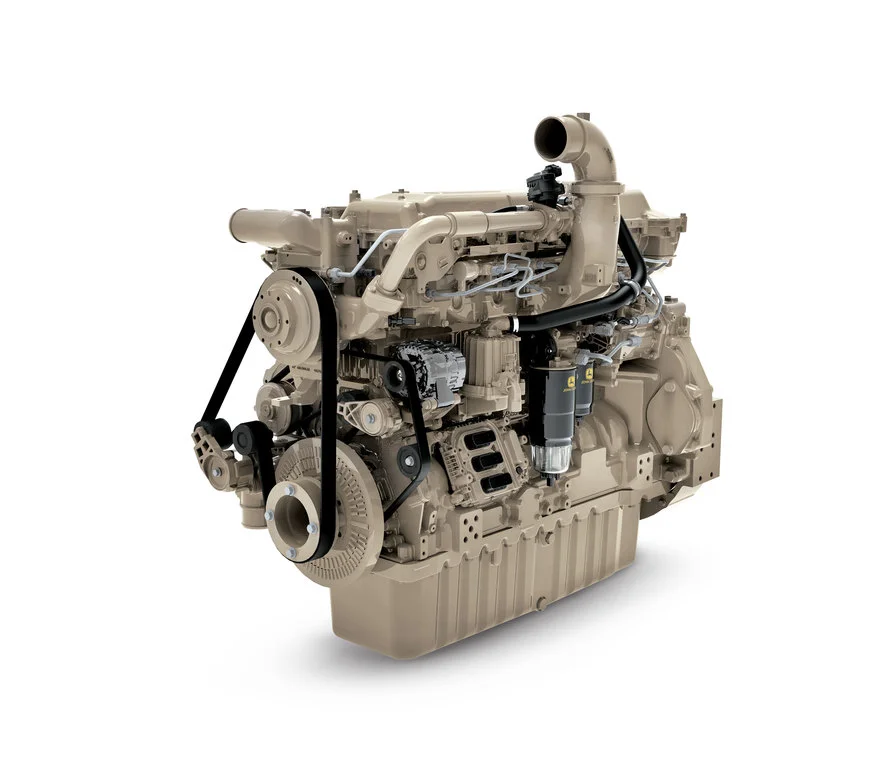

JD14X (6136CG440)
Generator Drive Engine
- Standby: 505 kW @ 1500 rpm / 505 kW @ 1800 rpm (Dual Frequency)
- Prime: 505 kW @ 1500 rpm / 505 kW @ 1800 rpm (Dual Frequency)
X
Select Your Closest Emmetts Branch and Ask About This Machine Today!
Features
Get details on 505 kW John Deere JD14X (6136CG440) generator drive engines for OEM equipment, including features, specs, and integrated support
Expand All
Cooled exhaust gas recirculation (EGR)
- EGR cools and mixes measured amounts of cooled exhaust gas with incoming fresh air to lower peak combustion temperatures, thereby reducing Nox.
Selective catalytic reduction (SCR)
- John Deere engines feature an SCR system that utilizes a urea-based additive, sometimes referred to as diesel exhaust fluid (DEF). A chemical reaction in the SCR catalyst converts urea and NOx emissions into nitrogen and water vapor.
High-pressure common-rail (HPCR)
- The HPCR fuel system provides variable common-rail pressure and high injection pressures. It also controls fuel injection timing and provides precise control for the start, duration, and end of injection.
Air-to-air aftercooled
- This is the most efficient method of cooling intake air to help reduce engine emissions while maintaining low-speed torque, transient response time, and peak torque. It enables an engine to meet emissions regulations with better fuel economy and the lowest installed costs.
4-valve cylinder head
- The 4-valve cylinder head provides excellent airflow resulting in excellent low-speed torque and transient response.
EUI fuel system
- Electronic unit injector (EUI) fuel system provides variable common rail pressure, multiple injections, and higher injection pressures up to 2,000 bar (29,000 psi). It also controls fuel injection timing and provides precise control for start, duration, and end of injection
John Deere electronic engine controls
- Faster engine control unit (ECU) manages both the engine and the exhaust filter
- Premium software integrates with equipment or vehicles to reduce engineering and installation costs
Big-engine durability
- Replaceable (wet) cylinder liners
- Single-piece steel piston with oil-cooling gallery
- Full flow engine-mounted oil cooler
- Up to 500-hour oil change
Additional features
- Meets a key power node of 500 kVa and 400 kWe prime power
Specifications
Expand All
Emissions Certifications
- CARB
- EPA Tier 4
General Engine Data
- Model
- 6136CG440
- Number of cylinders
- 6
- Displacement-- L (cu in)
- 13.55 (827)
- Bore and Stroke-- mm (in)
- 132 x 165 (5.2 x 6.5)
- Compression Ratio
- 15.9:1
- Engine Type
- In-line, 6-cycle
- Aspiration
- Turbocharged and air-to-air aftercooled
- Length - mm (in)
- 1498 (59)
- Width-- mm (in)
- 890 (35)
- Height-- mm (in)
- 1367 (53.8)
- Weight, dry - kg (lb)
- 1521 (3353) Dual Turbo
*With oil, no coolants (includes engine, flywheel housing, flywheel, and electronics)
