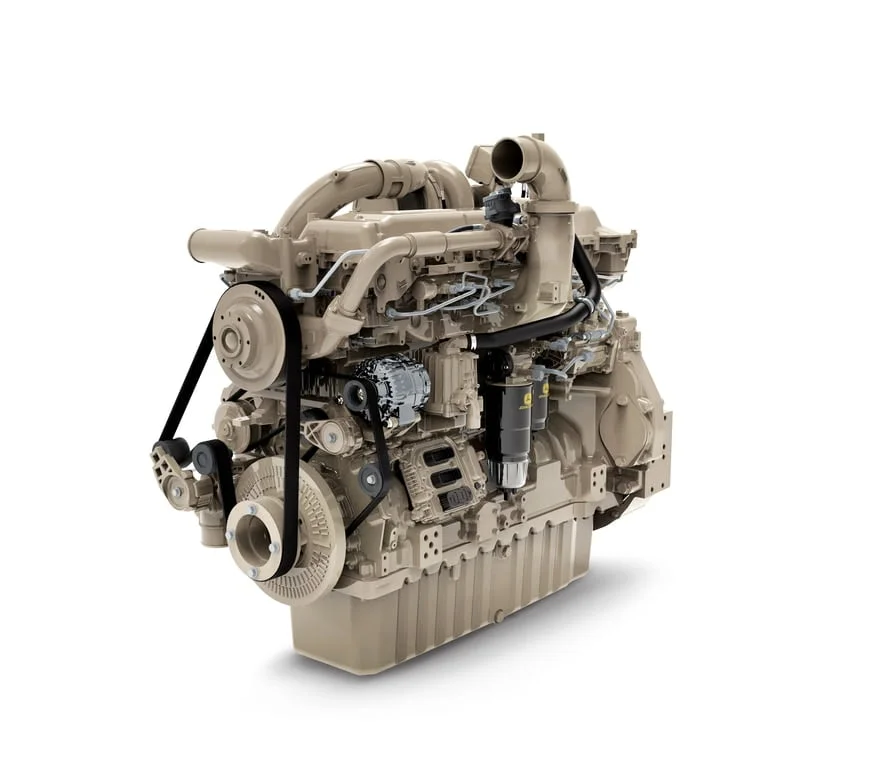

JD14X (6136CI440)
Industrial Diesel Engine
  • 391-510 kW (524-684 hp)
  • Continuous, Heavy-duty, Intermittent
Make an Enquiry on This Machine
Features
Get details on 524 to 684 hp, 391 to 510 kW John Deere 6136CI440 industrial diesel engines for OEM equipment, including features, specs, and integrated support
Expand All
Series turbocharger
  • Air is first drawn into the low-pressure turbocharger and compressed to a higher pressure. The compressed air is then drawn into the high-pressure turbocharger, where the air is further compressed. The high-pressure air is then routed through a charge air cooler and into the engine's intake manifold. By splitting the work between two turbochargers, both can operate at peak efficiency and at slower rotating speeds — lowering stress on turbocharger components and improving reliability. Series turbocharging delivers more boost pressure than single turbocharger configurations, which results in higher power density, improved low-speed torque, and improved high altitude operation.
Cooled exhaust gas recirculation (EGR)
  • EGR cools and mixes measured amounts of cooled exhaust gas with incoming fresh air to lower peak combustion temperatures, thereby reducing Nox.
Selective catalytic reduction (SCR)
  • John Deere engines feature an SCR system that utilizes a urea-based additive, sometimes referred to as diesel exhaust fluid (DEF) to meet Stage IV emission standards. A chemical reaction in the SCR catalyst converts urea and NOx emissions into nitrogen and water vapor.
High-pressure common-rail (HPCR)
  • The HPCR fuel system provides variable common-rail pressure and high injection pressures. It also controls fuel injection timing and provides precise control for the start, duration, and end of injection.
Air-to-air aftercooled
  • This is the most efficient method of cooling intake air to help reduce engine emissions while maintaining low-speed torque, transient response time, and peak torque. It enables an engine to meet emissions regulations with better fuel economy and the lowest installed costs.
4-valve cylinder head
  • The 4-valve cylinder head provides excellent airflow resulting in excellent low-speed torque and transient response.
Compact size
  • Lower installed cost
  • Engine mounting strategy consistent with previous engine models
John Deere electronic engine controls
  • Faster engine control unit (ECU) manages both the engine and the exhaust filter
  • Premium software integrates with equipment or vehicles to reduce engineering and installation costs
Specifications
Expand All
Emissions Certifications
CARB
EPA Tier 4
General Engine Data
Model
6136CI440
Number of cylinders
6
Displacement-- L (cu in)
13.6 (827)
Bore and Stroke-- mm (in)
132 x 165 (5.2 x 6.5)
Compression Ratio
15.9:1
Engine Type
In-line, 6-cycle
Aspiration
Turbocharged
Length - mm (in)
1498 (58)*
Width-- mm (in)
890 (35)
Height-- mm (in)
1367 (54)
Weight, dry - kg (lb)
1521 (3353)
