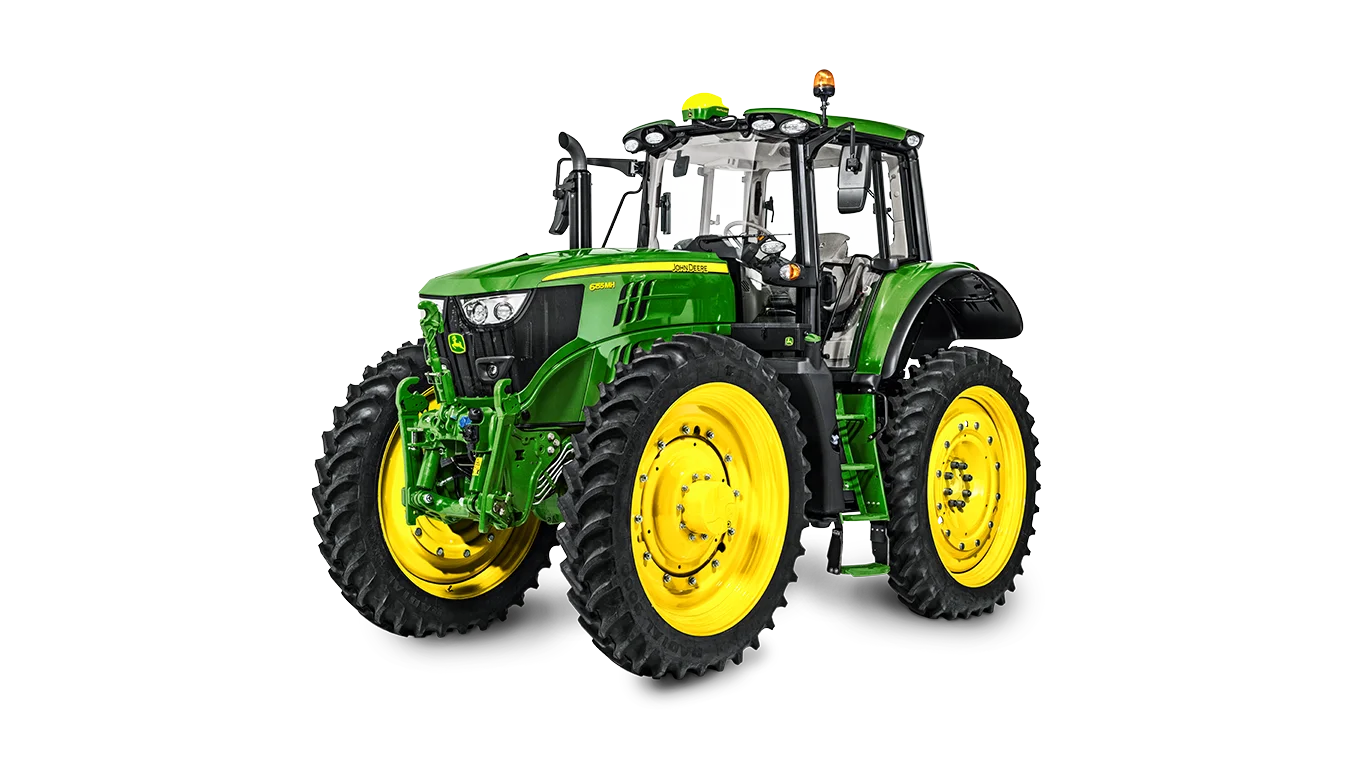

6155MH
High-Crop Tractor
- 172 hp (126 kW) max power (ECE-R120)
- 6.8 l engine with 6 cylinders
- Exceptionally high ground clearance of 680 mm1
1 With 320/90R50 tires
X
Select Your Closest Emmetts Branch and Ask About This Machine Today!
Features
Featuring extra high ground clearance, a creeper option, and full precision ag capabilities, the 6155MH is perfect for high-value crop producers.
Specifications
Expand All
Key Specs
- Engine description
- John Deere PowerTech™ PVS
- Engine displacement
- 6.8 L
415 cu in.
- Rated engine power
- 114 kW
155 hp
- Maximum engine power
- 126 kW
172 hp
- Rated PTO power (hp SAE)
- 92 kW
125 hp
- Maximum PTO power
- At 1000 PTO rpm: 100 kW
136 hp
- Transmission type
- Standard: John Deere 16-speed PowrQuad™ PLUS 30 km/h
18.6 mph
Optional: John Deere 20-speed AutoQuad™ PLUS 30 km/h
John Deere 20-speed CommandQuad™ PLUS 30 km/h
Creeper (PowrQuad PLUS and AutoQuad PLUS)
- Hydraulic pump rated output
- Standard: 45-cc pump: 114 L/min
30 gpm
- Rear hitch category (SAE designation)
- 3N/3
- Base machine weight
- 6700 kg
14,770 lb
- Maximum engine power PS (hp ISO) at max engine speed (EU 2016/1628)
- Rated engine power PS (hp ISO) at rated engine speed (EU 2016/1628)
Engine Specifications
- Description
- John Deere PowerTech PVS
- Engine type
- 6068HL555
- Engine family
- JDXL06.8324
- Rated speed
- 2100 rpm
- Aspiration
- Variable geometry turbocharger
- Cylinders liners
- Emission level
- Stage V
- After treatment type
- Lifetime diesel particle filter (DPF), diesel oxidation catalyst (DOC), and selective catalytic reduction (SCR) using diesel exhuast fluid (DEF)
- Displacement
- 6.8 L
415 cu in.
Engine Performance
- Rated power
- 114 kW
155 hp
- Rated PTO power (hp SAE)
- 92 kW
125 hp
- Maximum PTO power
- At 1000 PTO rpm: 100 kW
136 hp
- Intelligent Power Management (IPM)
- Power boost
- 10 percent
- Maximum engine power
- 126 kW
172 hp
- Engine peak torque
- At 1600 rpm: 726 Nm
535.47 lb-ft
- Drawbar power
- PTO torque rise
- 40 percent
- Fuel injection system and control
- Air cleaner type
- Maximum engine power PS (hp ISO) at max engine speed (EU 2016/1628)
- Rated engine power PS (hp ISO) at rated engine speed (EU 2016/1628)
Transmission
- Type
- Standard: John Deere 16-speed PowrQuad PLUS 30 km/h
18.6 mph
Optional: John Deere 20-speed AutoQuad PLUS 30 km/h
John Deere 20-speed CommandQuad PLUS 30 km/h
Creeper (PowrQuad PLUS and AutoQuad PLUS)
- Reverser
- Electronic left-hand reverser
- Clutch; wet/dry
- Creeper
- Optional
Hydraulic System
- Type
- Standard: Pressure-and-flow compensated (PFC) system with Load Sensing function
- Pump rated output
- Standard: 45-cc pump: 114 L/min
30 gpm
- Available flow at a single rear SCV
- Available flow at front SCVs
- Number of rear selective control valves (SCVs)
- Standard: Two ISO couplers
Optional: Two to four ISO couplers
- Number of mid selective control valves (SCVs)
- Number of front selective control valves (SCVs)
- Joystick SCV control
- Auxiliary hydraulic features
- SCV control
Rear Hitch
- Hitch draft control load sense type
- Remote control valves available
- Standard
- Hitch category (SAE designation)
- 3N/3
- Maximum lift capacity behind lift points
- Standard: 6800 kg
14,991.4 lb
- Lift capacity at standard frame
- Sensing type
- Electronic lower link
- Rear axle differential lock
- Electrohydraulically with oil-cooled clutch
Drawbar
- Drawbar category
- Category 2
- Maximum vertical load
- Road/field use (250-mm [9.8-in.] extended): 1000 kg
2204.6 lb
Field use (350-mm [13.8-in.] extended): 1000 kg
Field use (400-mm [15.7-in.] extended): 1000 kg
Rear Power Take Off (Pto)
- Type
- Electrohydraulically operated, oil-cooled, multi-disc design
Standard: 540, 1000 reversible shaft: 38 mm 1.496 in.
- Engine rpm (at rated PTO speeds)
- 540: 1997 rpm
1000: 2010 rpm
- Economy PTO speeds
- Reverse PTO speeds
- Multispeed PTO option availability
- Ground speed PTO option availability
- PTO actuation
- In-cab switch
Front Hitch
- Category
- 3N
- Electric power
- Seven-pin electrical socket
- Standard lift capacity
- 4400 kg
9700.3 lb
- Front power take-off (PTO)
- PTO speed
Rear Axle
- Type
- Final drive type
- Differential controls
- Axle type
- Brakes, type and control
- Primary brake (footbrake): Oil cooled, self-equalizing, self-adjusting, hydraulically actuated
Secondary brake: Hydraulically actuated, integrated into primary brake (lever on left-hand side of operator seat)
Park lock: Mechanical transmission park lock
Mechanical front-wheel drive (MFWD) braking: Automatic MFWD engagement (MFWD engaged for braking at speeds less than 5 km/h [3.1 mph])
Front axle brakes (optional): TLS™ with front axle brakes (oil cooled, self-equalizing, self-adjusting, hydraulically actuated)
- Rear differential lock
- Electrohydraulically with oil-cooled clutch
- Load rating
Front Axle
- Type
- Standard: MFWD
- Front axle differential lock
- Self-locking differential
- Load rating
Tires
- Rear
- 320/90R50 or 480/80R38
- Wheel tread range
- Turning radius with brakes
- Turning radius without brakes
- Central Tire Inflation System (CTIS)
- Front
Tracks
- Tread spacing
- Drive type
- Track width
- Mid-rollers
Brakes
- Primary brake (foot brake)
- Secondary brake
- Park lock
- MFWD braking
- Front axle brakes
- Auxiliary brakes
- Hydraulic trailer brakes
- Pneumatic trailer brakes
Electrical System
- Alternator size
- Standard: 14 V/120 amp
Optional: 14 V/150 amp 14 V/200 amp
- Battery options
- Standard: 12 V/154 amp-hr
Optional: 12 V/174 amp-hr
- Working lights
- Type of bulb in headlight (Halogen, Zenon, LED)
- Type of bulb in beacon (Halogen, Zenon, LED)
- dB(A) rating for backup alarm
- Total cold cranking amps
Operator Station
- Rollover protective structure, OOS
- Seat
- Standard: Economy seat with mechanical suspension
Optional: Standard seat with air suspension
- Cab suspension
- Instructional seat
- Optional
- Display
- Cornerpost dispay (right-hand A-post)
Functionalty: Performance monitor and individual settings
- Radio
- Optional integrated
- Inner cab volume
- 2.73 m3
96.41 cu ft
- dB(A) rating
- 70 dBA
- Cab glass area
- Without roof hatch or panoramic roof: 4.85 m2
52.2 sq ft
- Safety glass rating
- Front visibility
Dimensions
- Wheelbase
- 2765 mm
108.9 in.
- Overall width
- 2490 mm
98.03 in.
- Overall length
- 4730 mm
186.2 in.
- Overall height
- 3280 mm
129.13 in.
- Drawbar clearance
- Front axle center
- 740 mm
29.13 in.
- Approximate shipping weight, Open;Cab
- Cab: 7500 kg
16,534 lb
Weight
- Base machine weight
- Front axle
5150 kg
11,353 lb
Rear axle
5150 kg
11,353 lb
7000 kg
15,432 lb
- Maximum ballast level
- Maximum permissible weight
- 10,300 kg
22,707 lb
Capacities
- Crankcase oil volume
- 23.5 L
6.2 U.S. gal.
- Fuel tank
- 270 L
71.3 U.S. gal.
- Diesel exhaust fluid (DEF) tank
- 16 L
4.2 U.S. gal.
- Cooling system
- 27 L
7.1 U.S. gal.
- Transmission-hydraulic system
- PowrQuad PLUS/AutoQuad PLUS: 76 L
20.1 U.S. gal.
Serviceability
- Interval for engine oil change
- 750 hours
- Interval for hydraulic/transmission oil change
- 1500 hours
- Interval for engine coolant change
- 6000 hours
Loaders
- Loader
- Lift capacity at full height
- Maximum lift height
- Leveling type
Precision Ag
- Guidance
- Optional: AutoTrac™ on cornerpost display (straight track only), AutoTrac with 4240/4640 Universal Display
- Telematic
- Optional: JDLink™
- Remote diagnostics
- Optional: JDLink
Miscellaneous
- AutoTrac ready
- ISOBUS ready
- CommandCenter video inputs
- Immobilizer
- Side slope rating
- Uphill/downhill slope rating
- Country of manufacture
- Germany
Steering
- Type
- Dynamic load sensing, hydrostatic, flow metering
- Date collected
- 2-Aug-21
