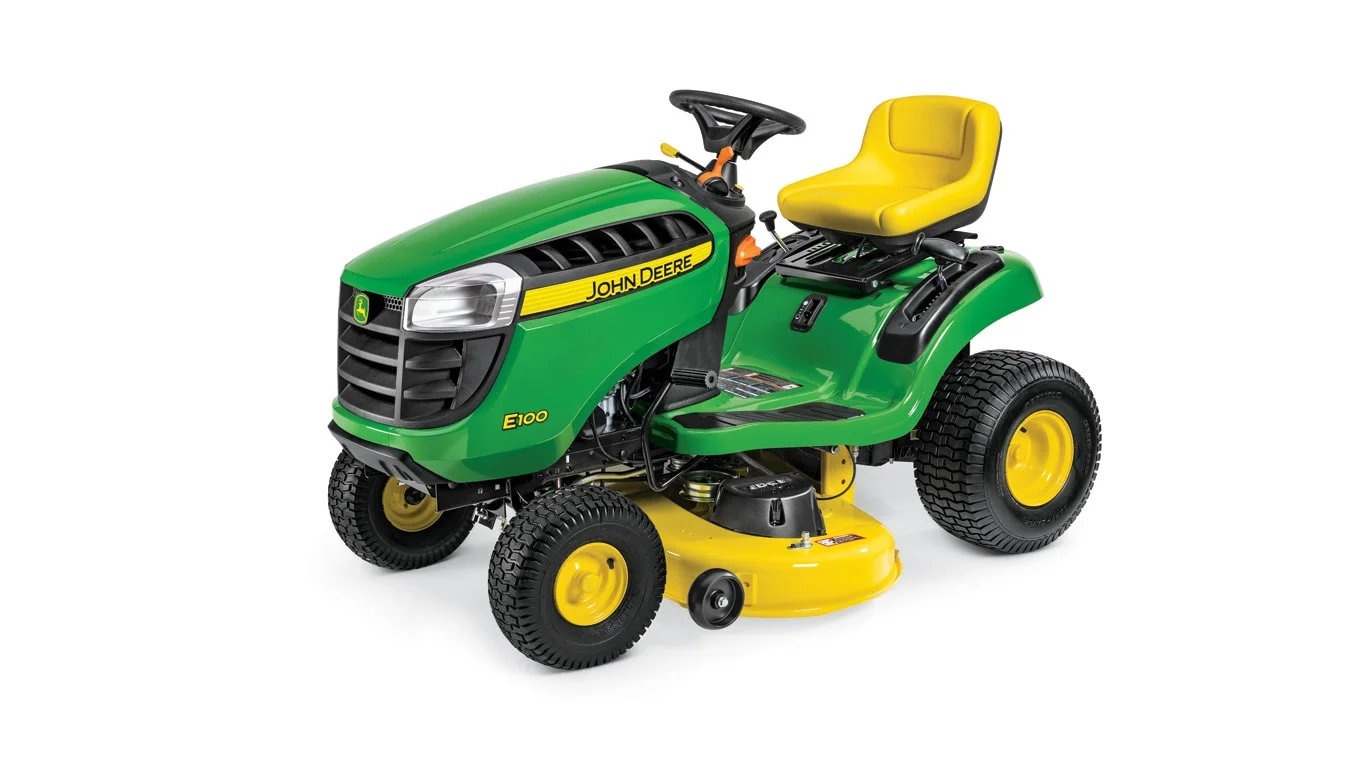

E100
Ride-on Mower
  • Single-cylinder 13 kW (18 hp) engine
  • 107 cm (42 in.) Edge™ Cutting System
  • CVT/Automatic Transmission
  • Mows up to 8000 m²
Make an Enquiry on This Machine
Features
The E100 combines dependability, durability and power in every aspect of its construction, including a fully welded steel frame and a cast-iron front axle.
Expand All
Powerful engine features full-pressure lubrication for long life
13-kW (17.5-hp) engine 13-kW (17.5-hp) engine
Engine oil filter and fuel filter Engine oil filter and fuel filter

A 13-kW (17.5-hp), single-cylinder engine has plenty of power and torque to handle tough mowing, mulching, and bagging conditions:

  • Electronic ignition for fast starts
  • Spring-return feature to ensure the operator will not mistakenly leave the throttle lever in the choke position
  • Cast-iron cylinder liner for long engine life
  • Overhead valves for excellent power and fuel economy
  • Anti-vibration system
  • Full-pressure lubrication and oil filter for cleaner oil, prolonging engine life, and extending the time between oil changes
    • More effective when operating the tractor on an incline
  • Large fuel filter for trouble-free operation
No-tools oil drain valve No-tools oil drain valve

The no-tools oil drain valve is easy to access when changing engine oil.

Fuel tank has gauge to show fuel level from the operator's seat
Fuel tank gauge Fuel tank gauge
Convenient fuel-filler opening Convenient fuel-filler opening

The fuel tank gauge shows how much fuel is in the tank and can be seen without leaving the operator's seat:

  • Easy to check fuel level
  • Convenient location

Fuel tank:

  • The capacity is 9.1 L (2.4 U.S. gal.)
  • The fuel-filler opening is conveniently located under the seat.
    • Filling the tank without spilling is easy.
    • A tethered fuel tank cap is more convenient.
    • The sealed fuel cap helps keep vapors inside the tank.
    • The tractor has a California Air Resources Board (CARB) certified engine for reduced air pollution.
Frame made of full-length welded steel for reliability
Solid one-piece frame Solid one-piece frame
Solid one-piece frame Solid one-piece frame

The solid one-piece frame is constructed of 12-gauge, 2.66-mm (0.105-in.) steel:

  • Full-length, robotically-welded frame design has high-strength steel rails for added strength and long life.
  • One-piece, steel fender deck is bolted to the frame.
Cast-iron front axle will not bend
Front axle and wheel spindle Front axle and wheel spindle

The front axle is constructed of solid cast iron that will not bend:

  • Automotive-like steering system with sector and pinion steering gears and single drag link with a tie rod provides a very strong, low-effort, and tight-turning system.
  • Three grease fittings, on both steering spindles and center pivot, allow for regular lubrication to help maintain easy steering and minimize wear.
  • Large, 1.9-cm (0.75-in.) diameter wheel spindles provide excellent durability.
CargO Mount™ system makes installation of rear bagger and other attachments easy
Rear CargO Mount points Rear CargO Mount points
Front CargO Mount points Front CargO Mount points
Rear bagger is mounted with CargO Mount points Rear bagger is mounted with CargO Mount points
Rear bagger is mounted with CargO Mount points Rear bagger is mounted with CargO Mount points

The CargO Mount system is a combination of front- and rear-mounting points providing convenient and easy installation of the sun canopy, rear bagger, and other attachments.

Automatic transmission makes it easy to choose the exact travel speed for each operating condition
E100 Tractor E100 Tractor

The automatic transmission allows the operator to easily choose the desired forward or reverse travel speed by simply depressing a single foot pedal; this is similar to the way the driver of an automobile with automatic transmission changes speed when depressing the accelerator.

Whether a slow speed for trimming or faster speed for open-area mowing is desired, the operator can easily adjust by how far the foot pedal is depressed.

Brake pedal Brake pedal
Automatic transmission forward/reverse shift lever Automatic transmission forward/reverse shift lever

With the brake pedal depressed and the forward/reverse lever in the center position, the engine can be started. Once the engine is started, it is not necessary to use the brake pedal when selecting forward or reverse. Simply move the forward/reverse lever to select travel direction, and then press the automatic foot pedal to choose from an infinite number of travel speeds.

Speed control pedal Speed control pedal
Operator foot depressing speed control pedal Operator foot depressing speed control pedal

With the automatic speed control pedal, the operator can choose from an infinite number of speeds forward or reverse:

  • Forward: 0 to 8.9 km/h (0 to 5.5 mph)
  • Reverse: 0 to 5.1 km/h (0 to 3.2 mph)
Operator station designed for comfortable operation
Comfortable operator station, right side Comfortable operator station, right side
Comfortable operator station, left side Comfortable operator station, left side

The operator station is designed for operator comfort and easy operation:

  • Controls are positioned where they are easy to reach and easy to use to control the tractor.
  • Steering wheel is positioned and angled to give the operator plenty of room and steering comfort.
  • Seat is tilted back at the optimum angle to provide the most comfortable operator position.
Steering wheel and dash Steering wheel and dash
Wide footrest with debris channels Wide footrest with debris channels

Controls are easy to see and use:

  • Large, three-spoke steering wheel for greater operator comfort and control
  • Ignition switch is on the dash for starting ease

Wide footrest areas with non-slip, anti-vibration floor mats are provided for operator comfort:

  • Footrest area is designed for optimum operator comfort
  • Debris-removing channels help keep the footrest area clean and dry
Comfortable seat Comfortable seat
Easily-adjusted seat and beverage holder Easily-adjusted seat and beverage holder

The operator station is designed for operator comfort and easy operation:

  • Controls are positioned where they are easy to reach and easy to use to control the tractor.
  • Steering wheel is positioned and angled to give the operator plenty of room and steering comfort.
  • Seat is tilted back at the optimum angle to provide the most comfortable operator position.
Seat springs give a smoother ride Seat springs give a smoother ride

Two long seat springs give plenty of seat travel to smooth out the ride, keeping the operator comfortable while operating the tractor.

Seat can be tilted forward for protection from the elements and to provide easy access to the fuel tank.

Instruments and controls are easy to find and convenient to use
E100 Tractor mowing E100 Tractor mowing
Steering wheel and controls Steering wheel and controls
Instruments and controls

The contoured dash has clean, attractive styling:

  • Controls are color coded and labeled for easy identification by the operator.
  • Controls are logically placed and easy to reach.
  • The hourmeter makes it easy to tell when oil changes and other maintenance should be performed.
    • The service reminder feature will indicate that a general lubrication or mower/engine service interval has been reached.
    • When service is required, arrows will periodically flash for two hours.
  • Functional design of the controls provides good appearance and a comfortable feel.
Mower deck height adjustment
Mower deck height adjustment lever Mower deck height adjustment lever

A spring-assisted, low-effort lift lever simplifies setting and adjusting the mower cut height:

  • Increments of 0.64-cm (0.25-in.) allow for fine-tuning the cut height
  • Cut height is adjustable from 2.5 cm (1 in.) to 10.2 cm (4 in.).
Parking brake control
Parking brake lever Parking brake lever
Brake/parking brake pedal Brake/parking brake pedal

The parking brake control is conveniently located on the tractor pedestal for easy access. It holds the brake pedal securely in the locked position.

Manual power take-off (PTO)
PTO engagement lever PTO engagement lever

The mower deck is engaged with the easy-to-see and easy-to-use yellow lever above the dashboard. Its placement on the right side leaves a lot of room on the left, the entry side of the tractor, for the operator to get on and off the tractor.

Reverse implement option (RIO)
RIO switch RIO switch

Mowing while backing up is strongly discouraged.

The operator who deems it necessary to keep the mower (or other implement) engaged while backing up should first bring the tractor to a stop and look behind the tractor to be sure there are no bystanders. Then actuate (push in) the RIO button. The RIO button must be held down in the reverse implement position as the shift lever is moved into reverse (reverse foot pedal is depressed on models with a hydrostatic transmission).

The operator may then release the button and the mower will continue to operate while backing up and also when resuming forward operation. This procedure must be repeated the next time the operator chooses to keep the mower engaged while backing up. If the mower power take-off (PTO) is engaged and the operator shifts into reverse or depresses the reverse pedal prior to pressing the RIO button, ignition to the engine will be shut off. The engine will stop unless the operator either pushes on the RIO switch or shifts out of reverse.

If the engine does stop, the operator must return the mower engagement (PTO) switch or lever to the off position, depress the brake pedal, and then turn the ignition switch to restart the engine.

Serviceability is convenient with an easy-open hood
One-piece hood is easy to open One-piece hood is easy to open
Service interval decal located under hood Service interval decal located under hood

The one-piece hood opens easily to permit checking and servicing the engine:

  • Important service points are located within easy reach.
  • A service interval decal is provided inside the tractor hood for convenience when servicing the tractor.
  • Hourmeter includes a service reminder feature that flashes for two hours when a lubrication or mower/engine service interval has been reached.
Easy-to-service engine fuel and oil filters Easy-to-service engine fuel and oil filters
Seat tilted up for easy access to fuel-fill opening Seat tilted up for easy access to fuel-fill opening

The engine fuel and oil filters, the oil check/fill tube, and the oil drain tube are exposed for serviceability when the hood is opened.

The seat tilts up and out of the way to make adding fuel easy.

The 100 Series Tractors are covered by a 2-year/120-hour bumper-to-bumper warranty*:

  • Premium features of 100 Series Tractors allow for this long warranty period.

*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.

Hood will not dent or rust and includes quality headlights for good visibility
One-piece hood opens for service access One-piece hood opens for service access
Quality headlights for good visibility Quality headlights for good visibility

The hood is made of molded-in color material:

  • Reduces sound
  • Will not rust or dent
  • Openings on the side of the hood let in plenty of cooling air while keeping the sound level low.
  • Two headlights provide good lighting for nighttime operation.
The Edge™ cutting system gives superior performance
Mowing with 107-cm (42-in.) mower deck Mowing with 107-cm (42-in.) mower deck
107-cm (42-in.) mower deck 107-cm (42-in.) mower deck

The Edge cutting system has been trademarked to emphasize the advantages of the John Deere mower deck designs. They give the mower superior convenience, performance, and reliability.

The 107-cm (42-in.) two-spindle, three-in-one mower is constructed of 13-gauge, 2.3-mm (0.090-in.) steel for long life:

  • The mower deck has a rolled lip to provide greater strength and protection.
  • The deep-deck mower design lifts grass for a clean, even cut.
  • The smooth underside of the mower prevents grass buildup and evenly disperses grass clippings.
  • The rolled outer edge of the deck provides extra strength and protection.
  • Dual-stage E-coat and powder paint coatings provide extra protection from rust.
  • No tools are required to go from mulching to side discharge to rear bagging.
  • The blade-to-spindle design provides a unique mounting system for the mower blade that provides extra safety and convenience.
  • A mulch cover is an optional attachment that can be installed without tools to allow mulching with the standard mower blades.
  • A high-performance mulch plug is an optional attachment that includes a mulch plug and special mulching blades for excellent performance.
  • cut-and-throw, 229-L (6.5-bu) rear bagger is sold separately.
Mower wash port
Mower wash port Mower wash port
Mower wash port with hose connector Mower wash port with hose connector

A wash port is provided to make cleaning the underside of the mower deck easy:

  • A hose connector is included with mower deck.
StarLock™ blade design
StarLock blade design StarLock blade design

The StarLock blade design keeps the blade bolt at the correct torque for easy removal.

Optional blades for difficult mulching or bagging conditions are available.

Mower deck height adjustment
Mower deck height adjustment lever Mower deck height adjustment lever

A spring-assisted, low-effort, ergonomically-designed lift lever simplifies setting and adjusting the mower cut height:

  • Increments of 0.64 cm (0.25 in.) allow the operator to fine-tune the cut height from 2.5 cm (1 in.) to 10.2 cm (4 in.).
  • The lift handle is shaped and located for easy use, and is out of the way of entering or exiting operators.
Two-year or 120-hour bumper-to-bumper warranty is standard

An exclusive 2-year or 120-hour (whichever comes first), single-source, bumper-to-bumper warranty* is standard for all John Deere 100 Series Tractors.

  • The warranty is hassle free, with one company handling all of the paperwork.
  • Premium features of 100 Series Tractors allow for this longer warranty period, with more coverage than comparable tractors.

*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.

Specifications
Expand All
Key Specs
Engine power
17.5 hp
13 kW
Engine manufacturer/model
31R977 (M31)
Transaxle type
Automatic, continuously variable transmission (CVT)
Transaxle control
Foot
Rear tires
20x8-8
Steering type
Sector and pinion with single drag link and tie rod
Lift system type
Lever on fender deck
Cutting width
Edge™ mower deck, 42 in.
107 cm
U.S. warranty
2 year/120 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Engine
Power
17.5 hp
13 kW
Displacement
30.5 cu in.
500 cc
Manufacturer/model
31R977 (M31)
Type
Overhead valve, full-pressure lube, oil filter
Cylinders
One
Governor
Mechanical
Choke/speed control
One lever
Cooling method
Air
Air cleaner
Cartridge
Oil drain
No tools
Fuel System
Type
Gasoline
Fuel delivery
Pulse pump and carburetor
Fuel gauge
Mechanical, viewable from seat
Fuel tank location
Rear
Fuel fill opening
Center, 1.75 in.
4.45 cm
Fuel tank capacity
2.4 U.S. gal.
9.1 L
Electrical System
Battery
12 V
300 CCA
Charging system
Regulated, 9 amp
Engine starter
Bendix type
Hourmeter
Yes, with service reminder
Headlights
Two standard, incandescent
Taillights or reflector
No
Backup lights
No
Rear work lights
No
12-V outlet
No
Transaxle
Type
Automatic, continuously variable transmission (CVT)
Control
Foot
Cruise control
No
Oil cooler
No
Oil filter
Not applicable
Differential lock
No
Forward speed
0-5.5 mph
0-8.9 km/h
Reverse speed
0-3.2 mph
0-5.1 km/h
Brakes
Cone clutch
Chassis
Frame
Full-length welded steel
Primer/paint
E-coat/powder
Weight bracket
Optional rear
Receiver hitch
No
Front axle
Cast-iron front axle, powdered-metal front wheel bushings
Spindle bushings
No
Front tires
15x6-6
Rear tires
20x8-8
Hood material
JD Loy, UV resistant
Fender deck material
Stamped steel
Floor mats
Yes, with debris removing channels
Storage
No
Service interval decal
Yes
Fender handles/grips
No
Cup holder
Yes
Equipment mounting
CargO Mount™ system
Steering
Type
Sector and pinion with single drag link and tie rod
Four-wheel steer
Not available on this model
Steering wheel
Standard, diameter - 12 in.
30.5 cm
Tilt steering wheel
No
Turning radius
18 in.
45.7 cm
Uncut circle radius
25 in.
63.5 cm
Seat
Type
One piece
Seat back height
11 in.
27.9 cm
Armrests
No
Fore-aft adjustment
While seated, 5.5 in.
14 cm
Seat suspension
Tilt, two coil springs
Lift System
Type
Lever on fender deck
Hydraulic outlets
No
Mower cut height
13 positions, 1-4 in.
2.5-10.2 cm
Cut height increments
0.25 in.
0.64 cm
Preset cut height
No
Mower Deck
Type
Side discharge
Cutting width
Edge™ mower deck, 42 in.
107 cm
Construction
Stamped steel deck shell
Mower deck material
Steel, 13 gauge
0.09 in.
2.3 mm
Mower wash port
Yes
Mower drive system
Manual power take-off (PTO)
Mower wheels
Two
Mower wheel adjustment
One bolt
Mower level adjustment
Easy-level deck
Mower Attachability
Type
Slide under tractor
Front draft arms
One spring clip
Rear draft arms
Two spring clips
Mower wheels rotate
No
Drive system
Single belt
Safety
Meets ANSI standard
Yes
Meets OPEI standard
Yes
Backup protection
Reverse Implement Option (RIO)
Safety video
Yes
Buyer's Notes
Notes
JD Loy hood resists fading, won't rust or dent
Durable primer and powder paint finish
Full-length welded steel frame
Warranty
2 year/120 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Optional Equipment
Mowers
Standard, 42 in.
107 cm
Rear bagger
2-bag, 6.5 bu
229 L
Powered material collection
Mulching system
Mulch cover or high-performance plug
Front thatcher
Front blade
46 in.
116.8 cm
Mid-mount blade
Snow blower
Two-stage, 44 in.
111.8 cm
Rotary broom
Rotary tiller
Sleeve hitch
3-point hitch
Rear power take-off (PTO)
Plow, moldboard
Box scraper
Cultivator
Rear blade
Disk harrow
Landscape rake
Sprayer
Tow-behind, 15 U.S. gal.
56.8 L
Mounted, 15 U.S. gal.
Tow-behind only, 25 U.S. gal.
94.6 L
Spreader
Tow-behind only, 125-175 lb
57.7-80 kg
Front bumper
Two-bar styled front bumper
Brush guard
Weather protection
Snow cab
Sun canopy
Yes
Rear receiver hitch
Bucket holder
Yes, single bucket
Grass striping
Lawn striping kit
Tractor shovel
Front loader
Other equipment
Tow-behind tools
16
Dimensions
Height
40.2 in.
102 cm
Overall length
69.7 in.
177 cm
Wheelbase
48.9 in.
124.2 cm
Width with mower
55.2 in.
140.2 cm
Width with mower (deflector raised for storage)
46.5 in.
118.1 cm
Width without mower
Weight
Mower, no fuel, 418 lb
190 kg
Additional Information
Date collected
25-June-2019
We want to make owning and operating your equipment simple and affordable.
We have a range of finance options to suit any customer.  Contact your local Emmetts branch, or visit these sites for more information and a free quote.
John Deere FinancialEmmetts Finance
linkedin facebook pinterest youtube rss twitter instagram facebook-blank rss-blank linkedin-blank pinterest youtube twitter instagram
