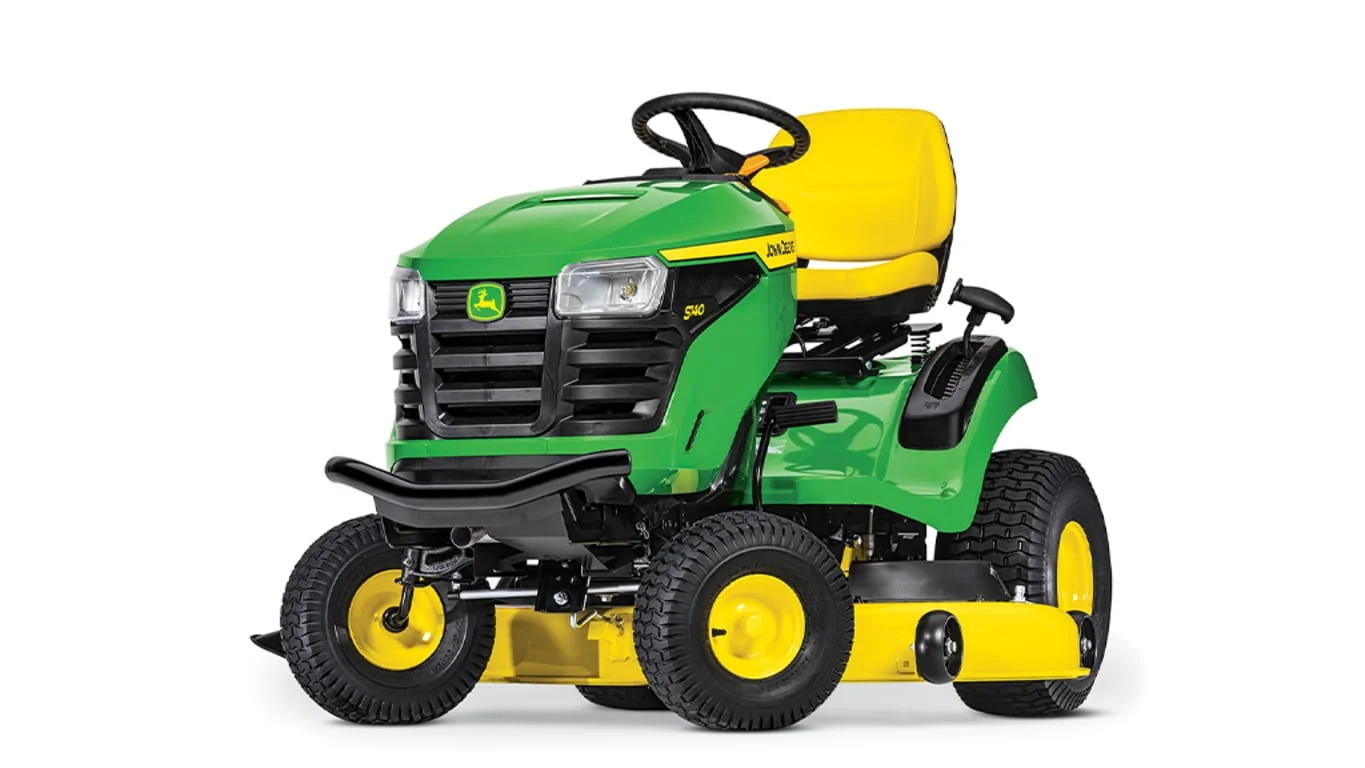

16.4-kW (22-hp) engine

Oil filter and fuel filter

A 16.4-kW (22-hp) V-twin engine provides plenty of power and torque to handle tough mowing, mulching, and bagging:

• V-twin cylinder design for greater torque, lower vibration, and improved sound quality
• Electronic ignition for fast starts
• Spring-return feature to ensure the operator will not mistakenly leave the throttle lever in the choke position
• Cast-iron cylinder liners for longer engine life
• Overhead valves for excellent power and fuel economy
• Full-pressure lubrication and oil filter for cleaner oil, prolonging engine life and extending the time between oil changes
  • More effective when operating the tractor on an incline
• No-tools oil drain system for servicing convenience




Fuel tank

Convenient fuel filler opening

• The capacity is 9.1 L (2.4 U.S. gal.).
• The fuel filler opening is conveniently located under the seat.
  • Filling the tank without spilling is easy.
  • A tethered fuel tank cap is more convenient.
  • The sealed fuel cap helps keep vapors inside the tank.

Solid one-piece frame

Solid one-piece frame

The solid one-piece frame is constructed of 12-gauge, 2.66-mm (0.105-in.) steel:

• Full-length, robotically welded frame design has high-strength steel rails for added strength and long life.
• One-piece, steel fender deck is bolted to the frame.

Cast-iron front axle will not bend

Front axle and wheel spindle

The front axle is constructed of solid cast iron that will not bend:

• Automotive-like steering system with sector and pinion steering gears and single drag link with a tie rod provides a very strong, low-effort, and tight-turning system.
• Three grease fittings, on both steering spindles and center pivot, allow for regular lubrication to help maintain easy steering and minimize wear.
• Large, 1.9-cm (0.75-in.) diameter wheel spindles provide excellent durability.

Front bumper protects the tractor

Front bumper

Front bumper

The front bumper is included on the S130 and S140. It is available as an optional attachment for the S100, S110, and S120.

• Additional front-end protection
• Attractive, bold style

CargO Mount™ system makes installation of rear bagger and other attachments easy

Rear CargO Mount points

Front CargO Mount points at the top of the dashboard

Rear bagger is mounted with CargO Mount points

Rear bagger is mounted with CargO Mount points

The CargO Mount system is a combination of front- and rear-mounting points providing convenient and easy installation of the sun canopy, rear bagger, and other attachments.

Two-pedal speed/direction controls

Forward speed control pedal in use

A Kanzaki® Tuff Torq® hydrostatic transmission gives an infinite choice of speeds and makes changing the direction of travel easy. Side-by-side foot pedals control the speed and direction of travel:

• Automotive-type accelerator controls ensure easy operation.
• Operator can change direction without lifting foot off the platform.
• Large pedal surface gives superior operator comfort.

Hydrostatic transmission

Appropriate transmissions are used in each model, depending on rear tire size and tractor performance requirements, to ensure excellent performance and reliability:

• Tuff Torq TLT200 – S100, S110, S120, S130 and S140

Kanzaki and Tuff Torq are trademarks of Kanzaki Kokyukoki Mfg. Co., Ltd.

Comfortable operator station (S130 shown)

Comfortable operator station (S130 shown)

The operator station is designed for operator comfort and easy operation:

• Controls are positioned where they are easy to reach and use to control the tractor.
• The steering wheel is positioned and angled to give the operator plenty of room and steering comfort.
• The seat is positioned to provide the most comfortable operator position.

Steering wheel and dash (S130 shown)

Wide footrest with debris-removal channels

Controls are easy to see and use:

• Large, three-spoke steering wheel for greater operator comfort and control
• Ignition switch is on the dash for starting ease

Wide footrest areas with non-slip, anti-vibration floor mats are provided for operator comfort:

• The wide footrest makes it easier to step over the mower deck while entering or exiting the seat.
• Debris-removing channels help keep the footrest area clean and dry.

Comfortable seat

Easily adjusted seat

Operator comfort is enhanced with a 38-cm (15-in.) high-back, two-piece seat with an open back:

• The open-back seat design keeps the operator cooler
• Especially helpful when operating the tractor for extended periods of time
• Easily adjusted forward or rearward while in the seat
• Seat travel of 14 cm (5.5 in.) and 10 different positions to adjust for operator height

Seat springs give a smoother ride

Seat tilted forward

Two long seat springs give plenty of seat travel to smooth out the ride, keeping the operator comfortable while operating the tractor.

The seat can be tilted forward for protection from the elements and to provide easy access to the fuel tank.

Storage compartment

Beverage holder (shown with optional storage compartment cover)

Storage compartment and beverage holder, located on the right-side fender, are conveniently located and easy to use.

NOTE: A storage compartment cover is standard on S120 and S130 Tractors and optional on the S100, S110, and S140.

Fender flares

Fender flares included on the S130 Tractor cover the tires more completely and add style to the tractor.

S170 Tractor mowing

Steering wheel and controls on S140

Instruments and controls

The contoured dash has clean, attractive styling:

• Controls are color-coded and labeled for easy identification.
• Controls are logically placed and easy to reach.
• The hour meter makes it easy to tell when oil changes and other maintenance should be performed.
• Functional design of the controls provides good appearance and a comfortable feel.

Side-by-side transmission control pedals

Two-pedal speed/direction controls

Side-by-side foot pedals

Side-by-side foot pedals control the speed and direction of travel:

• Automotive-type accelerator controls ensure easy operation.
• Operator can change direction without lifting foot off the platform.
• Large pedal surface gives superior operator comfort.

Cruise control (S120 and S130)

Cruise control lever

Cruise control is available on the S120 and the S130:

• To engage, lift the cruise lever and hold until the foot is removed from the forward pedal.
• The cruise control can be released by pushing on the brake pedal or the forward pedal.

Mower deck height adjustment

Mower deck height adjustment lever

Mower deck height adjustment lever

A spring-assisted, ergonomically designed lift lever simplifies adjusting the mower cut height:

• Increments of 0.64 cm (1/4 in.) allow fine-tuning the cut height.
• Cut height is adjustable from 2.5 to 10.2 cm (1 to 4 in.).
• The lift handle is shaped for easy use and is out of the way of entering or exiting operators.

Parking brake control

Brake/parking brake pedal

Parking brake lever

The parking brake control is conveniently located for easy access. It holds the brake pedal securely in the locked position.

Electric power take-off (PTO) clutch is easy and convenient

Electric PTO engagement switch

The heavy-duty electric PTO clutch is operated with a convenient dash-mounted switch.

Reverse implement option (RIO)

RIO switch

Using RIO

CAUTION: Children or bystanders may be injured by rotating blades. Before traveling forward or rearward:

• Carefully check the area around the machine.
• Disengage the mower before backing up.

NOTE: Backing up while the mower is engaged is strongly discouraged. RIO should be used only when operating another attachment or when the operator deems it necessary to reposition the machine with the mower engaged.

1. Stop forward travel.
2. Look behind the machine to be sure there are no bystanders.
3. Push and hold in the RIO switch while depressing the reverse pedal slightly for a hydrostatic transmission or moving the transmission shift lever to the rear slot (reverse) for a continuously variable transmission (CVT)/automatic transmission.

NOTE: If the engine and mower or other attachment stops while repositioning the machine, return the attachment engagement lever/switch to the off position. Start the engine and engage mower or other attachment. Begin again with step 2.

4. Release the RIO switch and reposition the machine as the machine begins to move rearward.
5. Resume forward travel. The mower or other attachment should continue operating.
6. Repeat procedure to position the machine again.

Fuel tank gauge shows fuel level from the operator's seat

Fuel tank gauge

Convenient fuel- filler opening

The fuel tank gauge shows how much fuel is in the tank and can be seen without leaving the operator's seat:

• Easy to check fuel level
• Convenient location

One-piece hood is easy to open

Service interval decal located under hood

The one-piece hood opens easily to permit checking and servicing the engine:

• Important service points are located within easy reach.
• A service interval decal is provided inside the tractor hood for convenience when servicing the tractor.

Easy-to-service engine fuel and oil filters

Seat tilted up for easy access to fuel-fill opening

The engine fuel and oil filters, the oil check/fill tube, and the oil drain tube are exposed for serviceability when the hood is opened.

The seat tilts up and out of the way to make adding fuel easy.

Hood will not rust or dent, and includes quality headlights

One-piece hood opens for service access

Quality headlights for good visibility

• Molded-in color material reduces sound and will not rust or dent.
• Same quality hood material as on larger John Deere tractors provides good resilience and UV resistance for an extended time
• Openings on the side let in plenty of cooling air while keeping the sound level low.
• Two headlights provide good lighting for nighttime operation.

122-cm (48-in) Edge cutting system

The Edge cutting system has been trademarked to emphasize the advantages of the John Deere mower deck designs. They give superior mowing performance, convenience, and reliability:

• The deep deck design lifts grass for a clean, even cut.
• The smooth underside has no nooks and crannies, preventing grass buildup and evenly dispersing grass clippings.
• The rolled outer edge of the deck provides extra strength and protection.
• Dual-stage E-coat and powder paint coatings provide extra protection from rust.
• Flexible discharge chute minimizes property and mower deck damage.

The 122-cm (48-in) Edge Mower Deck is a three-spindle design with heavy-duty characteristics:

• The 12-gauge, 2.7-mm (0.105-in.) steel deck provides years of dependable mowing.
• Included three-in-one blades work well for side-discharge, mulching, or bagging.
• The blade-to-spindle design provides a unique mounting system for the mower blade that gives extra safety and convenience.
• Four mower deck wheels are standard equipment for a smooth mowing job in rolling terrain.
• No tools are required to switch from mulching to side discharge to rear bagging.
• A mulching cover is an optional attachment that can be installed without the use of tools.
• High-performance mulching blades are available to enhance mulching performance.

Mower wash port

Mower wash port

Mower wash port with hose connector

A wash port is provided to make cleaning the underside of the mower deck easy:

• A hose connector is included with mower deck.

StarLock™ blade design

StarLock blade design

The StarLock blade design keeps the blade bolt at the correct torque for easy removal.

Optional blades for difficult mulching or bagging conditions are available.

Optional bagger

229-L (6.5-bu) hopper and chute on an S140

A cut-and-throw, 229-L (6.5-bu) bagger is sold separately and comes with bagging blades. Special bagging blades are not required but they can enhance performance.

The bagger kit provides an efficient means of collecting grass clippings and leaves. It can be set up without tools in minutes and has easy-to-empty bags.

An exclusive 2-year or 120-hour single-source, bumper-to-bumper warranty* is included for all John Deere 100 Series Tractors.

• The warranty is hassle free, with John Deere handling the service and paperwork.

*Term limited to years or hours used, whichever comes first, and varies by model. See Agriculture and Turf equipment Warranty Statement.at JohnDeere.com.au for details.

Engine power

22 hp
16.4 kW

Oil change

No-tools oil drain with replaceable filter

Engine manufacturer/model

44N677 (M44)

Transaxle type

TLT200 hydrostatic, two-wheel drive

Transaxle control

Side-by-side pedals

Rear tires

20x8-8

Lift system type

Spring-assisted hand-grip lever

Cutting width

Edge™ mower deck, 48 in.
122 cm

U.S. warranty

2 year/120 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)

Power

22 hp
16.4 kW

Displacement

44.2 cu in.
724 cc

Manufacturer/model

44N677 (M44)

Type

Overhead valve, full-pressure lube, oil filter

Cylinders

V-twin

Governor

Mechanical

Choke/speed control

Single lever with spring-return on choke

Cooling method

Air

Air cleaner

Cartridge

Oil change

No-tools oil drain with replaceable filter

Type

Gasoline

Fuel delivery

Pulse pump and carburetor

Fuel gauge

Mechanical, viewable from seat

Fuel tank location

Rear

Fuel fill opening

Center, 1.75 in.
4.45 cm

Fuel tank capacity

2.4 U.S. gal.
9.1 L

Battery

12 V
300 CCA

Charging system

Regulated, 8 amp

Engine starter

Bendix type

Hour meter

Yes

Headlights

Two standard, incandescent

Taillights or reflector

No

Backup lights

No

Rear work lights

No

12-V outlet

No

Type

Hydrostatic, 2-wheel drive

Control

Side-by-side pedals

Cruise control

No

Oil cooler

Fins and fan on transaxle

Oil filter

Yes, not serviceable

Differential lock

No

Forward speed

0-5.5 mph
0-8.9 km/h

Reverse speed

0-3.2 mph
0-5.2 km/h

Brakes

Internal wet disk

Frame

Full-length welded steel

Primer/paint

E-coat/powder

Weight bracket

Optional rear

Receiver hitch

No

Front axle

Cast-iron front axle, powdered-metal front wheel bushings

Spindle bushings

No

Front tires

15x6-6

Rear tires

20x8-8

Hood material

Molded-in color material reduces sound, will not rust or dent

Fender deck material

Stamped steel

Floor mats

Yes, with debris removing channels

Storage

Storage tray with optional cover

Service interval decal

Yes

Fender handles/grips

No

Cup holder

Yes

Equipment mounting

CargO Mount™ system

Maximum towing capacity

Type

Sector and pinion with single drag link and tie rod

Four-wheel steer

Not available on this model

Steering wheel

Standard, diameter - 12 in.
30.5 cm

Tilt steering wheel

No

Turning radius

18 in.
45.7 cm

Uncut circle radius

20 in.
50.8 cm

Type

Two piece with open-back

Seat back height

15 in.
38 cm

Armrests

No

Fore-aft adjustment

While seated, 5.5 in.
14 cm

Seat suspension

Tilt, two coil springs

Type

Spring-assisted hand-grip lever

Hydraulic outlets

No

Mower cut height

13 positions, 1-4 in.
2.5-10.2 cm

Cut height increments

0.25 in.
0.64 cm

Preset cut height

No

Type

Side discharge

Cutting width

Edge™ mower deck, 48 in.
122 cm

Construction

Stamped steel deck shell

Mower deck material

Steel, 12 gauge
0.105 in.
2.7 mm

Mower wash port

Yes

Mower drive system

Electric power take-off (PTO) clutch

Mower wheels

Four

Mower wheel adjustment

One bolt

Mower level adjustment

Easy-level deck

Type

Slide under tractor

Front draft arms

One spring clip

Rear draft arms

Two spring clips

Mower wheels rotate

No

Drive system

Single belt

Meets ANSI standard

Yes

Meets OPEI standard

Yes

Backup protection

Reverse Implement Option (RIO)

Safety video

Yes

Notes

Molded-in color material reduces sound, will not rust or dent
Durable primer and powder paint finish
Full-length welded steel frame

Warranty

2 year/120 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)

Mowers

Rear bagger

2-bag, 6.5 bu
229 L

Powered material collection

Mulching system

Mulch cover

Front thatcher

Front blade

46 in.
116.8 cm

Mid-mount blade

Snow blower

Two-stage, 44 in.
111.8 cm

Rotary broom

Rotary tiller

Sleeve hitch

3-point hitch

Rear power take-off (PTO)

Plow, moldboard

Box scraper

Cultivator

Rear blade

Disk harrow

Landscape rake

Sprayer

Tow-behind, 15 U.S. gal.
56.8 L
Mounted, 15 U.S. gal.
Tow-behind only, 25 U.S. gal.
94.6 L

Spreader

Tow-behind only, 125-175 lb
57.7-80 kg

Front bumper

Included

Brush guard

Weather protection

Weather enclosure

Sun canopy

Sun canopy

Rear receiver hitch

Bucket holder

Yes, single bucket

Grass striping

Lawn striping kit

Tractor shovel

Front loader

Other equipment

Tow-behind tools

16

Height

44 in.
112 cm

Overall length

69.7 in.
177 cm

Wheelbase

48.9 in.
124.2 cm

Width with mower

60.8 in.
154 cm

Width with mower (deflector raised for storage)

51.7 in.
131.3 cm

Width without mower

Weight

Mower, no fuel, 468 lb
212 kg

Manufacturing location

Greeneville, Tennessee, USA

Date collected

24-Jul-2020
