• John Deere PowerTech™ diesel engine 69 kW (92 hp)
  • Category 2/1/1N universal 3-point hitch that adapts to a wide variety of implements
  • 4WD front axle as standard. Adjustable 2WD front axle is optional.
  • Available in open station and cab options both designed to accommodate narrow tractor dimensions and maintain operator comfort
Make an Enquiry on This Machine

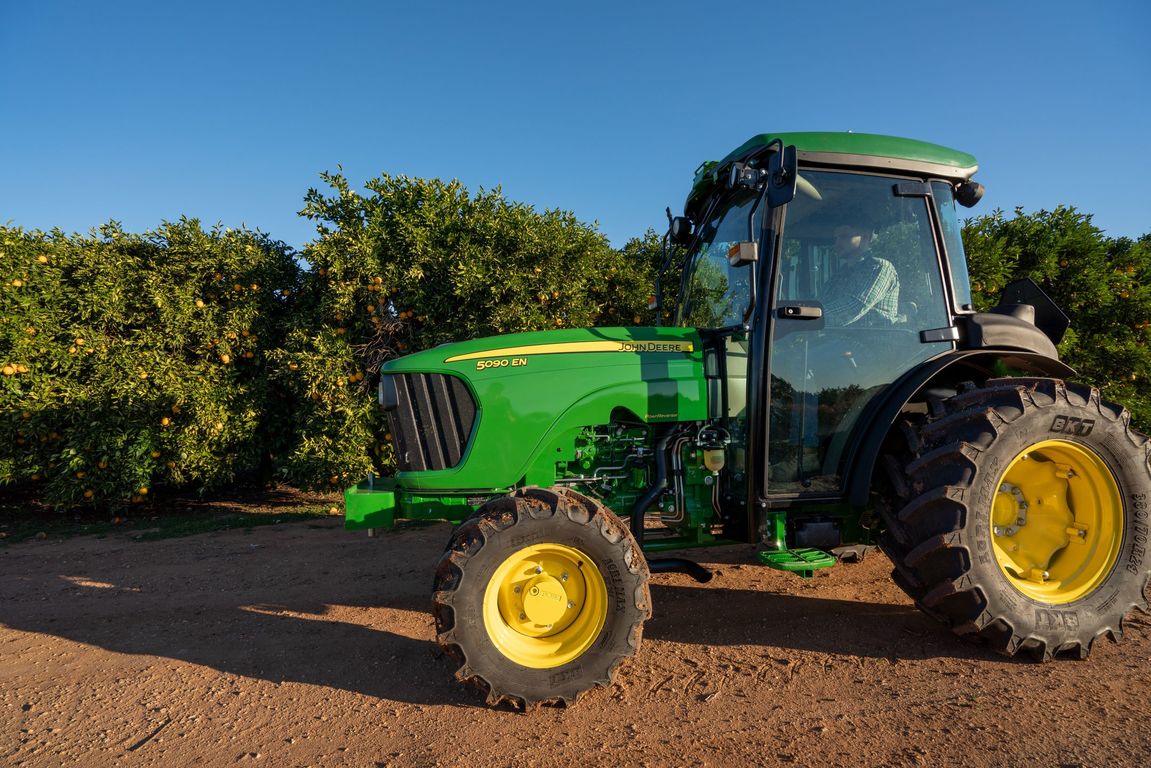

5090EN Narrow Tractor for John Deere
Expand All
Get dependable performance with high-torque, low-emission PowerTech™ diesel engines
Ready-to-work, PowerTech engines Ready-to-work, PowerTech engines

Owners of 5EN Narrow Series Tractors can claim bragging rights to operating the most dependable engine on the market with John Deere's extensive track record for building high-performance engines. Both tractors use John Deere designed and manufactured diesel engines and provide excellent torque, fuel efficiency, and durability. These turbocharged engines comply with Tier 2 emission standards.



Engine displacement

Engine hp*

Engine kW

PTO hp

Rated rpm




4.5 L (1.19 gal.)



64 (47.7 kW)





4.5 L (1.19 gal.)



75 (55.9 kW)




*ISO 97/68 EC

Outstanding performance and durability

John Deere designed and manufactured diesel engines provide excellent torque, fuel efficiency, and durability.

Heavy-duty cylinder block

The heavy-duty cylinder block provides greater strength and rigidity that allows these tractors to perform in ditches, ravines, and other less than ideal conditions.

Balanced crankshaft

The statically and dynamically balanced crankshaft reduces engine vibration. The operator's body absorbs less vibration allowing them to stay attentive and consistent throughout the work day.

Cast aluminum pistons

High-ring piston design reduces the non-usable air in the combustion area of the cylinders for improved fuel efficiency and combustion so the maximum power is received from every engine stroke. Ni-resist inserts reduce ring groove wear, which would lead to less effective combustion, so operators have an engine that is proactive for performance.

Tee-pee connecting rods and keystone-shaped top rings

Tee-pee connecting rods provide increased strength and durability of both the connecting rod and the pistons, which allows operators to run in a wide array of conditions.


Keystone shaped top rings move slightly in the groove to clean the carbon deposits, conditioning the tractor to remain ready to work. Plasma coated for reduced drag on cylinder wall and increasing overall tractor life.

Wet-type cylinder liners

Cylinder liners dissipate heat to prevent cylinder distortion and rapid ring wear, allowing consistent performance. Certified John Deere technicians can easily restore engine to the original specifications after many hours of hard operation. This extends the life and performance of the tractor.

Full-pressure lubrication system
Piston-cooling jets Piston-cooling jets

Full-pressure lubrication system ultimately protects the operator from maintenance costs. The underside of each piston and piston pin is sprayed with cooled and filtered oil, which eliminates excessive heat for longer life. The full-flow filter allows the cleanest fuel to be delivered to the engine for maximum performance and filter bypass so the tractor will never be starved for oil due to an exhausted filter.

Engine oil cooler

Engine oil cooler provides additional engine oil cooling, allowing operators to run in severe applications, reducing the likelihood that the engine will overheat.

Automotive-style poly V fan drive belt

The automotive-style fan drive belt drives the fan, water pump, and alternator. The belt features a self-adjusting spring tensioner, which eliminates service tasks, the need for a wrench, and extends the life of the belt because it is always in the correct adjustment.

Operate safely with the neutral start switch and electric fuel shutoff

A neutral start switch ensures operator and bystander safety; the right-hand gear shift lever must be in the park or neutral position for the engine to start.


Electric fuel shutoff allows the operator to easily turn the tractor off with the key, just like an automobile. A solenoid on the injection pump that permits using a key instead of a push-pull cable to shut off the engine. Electric fuel shutoff does not allow bypass starting. If an attempt is made to bypass start the tractor, through the use of electronics, the electric fuel shutoff will not allow the engine to start.

Dry-type air cleaner

A dry type air cleaner has a dual-element design for added engine protection against dust or debris from entering the combustion chamber, ensuring performance time opposed to shop time. Reaching the filter for service is easy; the operator simply unlatches three clips. A restriction indicator light on the dash alerts the operator when servicing is required to save potential engine repairs.

Single-element fuel filter

A single-element fuel filter partners up with the hand primer and water sediment bowl to deliver the complete package. John Deere designed specifically to meet the needs of John Deere tractors, the fuel filter provides a hand primer to prime the system for an easy fix for any operator who gets busy working and forgets to fuel. The water separator stores water separated from the fuel to protect from the cost of fuel injection pump failures due to water contamination.

Approved fuel

The use of biodiesel fuel up to 20 percent (B20) concentration is approved. Biodiesel fuel needs to meet ASTM PS 121 or DIN 51606 specifications. A local fuel supplier can provide specifications.

12F/12R PowrReverser™ transmission is ideal for demanding applications
Electrohydraulic reverser lever Electrohydraulic reverser lever

The PowrReverser transmission provides 12 forward speeds and 12 (12F/12R) reverse speeds for operators requiring additional operating ranges for field work and other applications. The 12F/12R PowrReverser with shiftable 540/540 economy PTO is ideal for operators using their tractors to perform in demanding applications.


Hydraulic wet forward and reverse clutches maximize durability and will outlast the life of any dry clutch. When tractors are run by multiple operators with a variety of experience levels, a wet clutch is the best way to maintain transmission integrity and performance while decreasing clutch replacement costs.


Two platform-mounted levers offer easy and comfortable shifting for a pleasant operator experience. The gear-shift lever is easy to reach and the less-used range lever is now shorter. Unique knobs make it easier to distinguish between the two. The forward lever selects one of four speeds, all synchronized shifts for on-the-go shifting with the use of the clutch. The range lever selects collar-shift A, B, and C ranges, which are not synchronized.


Maximum productivity is achieved with hydraulic shift between forward and reverse and is ideal for loader and rear blade applications that require frequent directional changes in tight spaces. Excellent modulation allows the operator to shift the direction lever from neutral to forward or reverse, forward to reverse, reverse to forward, or to neutral from forward or reverse.


Operators can accomplish all these directional changes without sacrificing comfort or having to press the clutch pedal. The speed of directional changes can be adjusted to the operator's preference or application demands with the field-installed infinitely variable control kit.


An electrohydraulic fingertip directional lever control allows the operator to effortlessly switch directions with a small finger motion. The control is located on the left side of the instrument console and selects the forward, reverse, and neutral positions.


It also allows the operator to steer and shift direction with the left hand, freeing the right hand to operate other tractor controls, such as the loader joystick, rear implements, or hand throttle.

Narrow tractor with loader Narrow tractor with loader

Constant-mesh, helical-cut gears provide quieter operation and excellent reliability while the pressure-lubricated top shaft adds to the transmission durability. Fully enclosed, rigid shift linkages for short throw and crisp shifts enable all operators to clearly know in what range and gear they are operating.


Positive park pawl on the transmission provides positive park and eliminates the need for a hand brake. This also eliminates clutch service costs that occur when the park brake is accidentally left engaged during operation.


A neutral start switch requires the directional lever to be in the neutral position to start the engine. This is both a safety and convenience feature.


See also the following information:

Rear-mount selective control valves (SCVs) add versatility
Triple rear SCV Triple rear SCV

A maximum of three rear SCVs can be field installed or factory installed to add versatility. Dual rear SCVs with lever controls come standard on 5EN Series Utility Tractors.


All rear SCVs are lever controlled and couplers are equipped with plug dust covers to prevent dirt and debris from entering the hydraulic system. This ensures the most reliable performance, allowing operators to get their work done.


Operators can couple and uncouple under pressure with the International Standards for Organization (ISO) push-pull couplers, which reduces the muscle required to switch implements. This allows the operator to effortlessly couple and uncouple hydraulic hoses from one implement to another.


The SCV and rockshaft valve can be adapted to provide live hydraulic power, power beyond, to implements with an independent control valve.

Deluxe triple-rear SCVs

Triple-deluxe, lever controlled rear hydraulics is available as factory installed and is designed to help operators run more efficiently. This hydraulic option provides additional solutions to meet operator hydraulic needs and expands the array of implements that can be utilized.


The SCVs are stackable, with the first valve being equipped with flow control, allowing operators to run a hydraulic motor. The first SCV has a float position as well as a knob with three selectable detents: no detent, continuous flow, and auto-kick out.

Detent selector Detent selector

A knob on  valve provides three selectable detents to create an easy operating experience in every task; even the novice operator can be productive.


The most familiar detent is the no-detent selection (A) which functions identically to the single and dual valves. The cylinder responds as the operator pulls or pushes the lever to retract or extend the cylinder. An example of where this may be used is when a loader is hooked up to the rear hydraulics or when using a box blade with top and tilt.


The second detent is continuous flow (B), which is ideal for running hydraulic motors. This is on each valve; however, the first valve provides the best performance with flow control by decreasing the amount of heat generated by the application. An example of where this detent may be used is with a hydraulic hay rake or planter.


The third setting is auto-kick out (C). The cylinder completes a stroke and then kicks out, so an operator doesn’t have to provide pressure on the control. This is useful in applications when the hydraulic implement is frequently raised and lowered during operation. An example of where this may be used is with a disk or rotary cutter.


The fourth symbol appearing on the knob is an opened book (D). This is to remind operators to refer to their operator’s manual for proper operation and assistance when help is needed.

Save fuel in power take-off (PTO) applications with the 540/540 Economy PTO
Shiftable 540/540 Economy PTO (5EN Cab) Shiftable 540/540 Economy PTO (5EN Cab)
Shiftable 540/540 Economy PTO (5EN OOS) Shiftable 540/540 Economy PTO (5EN OOS)

The 540/540 economy PTO allows operators to select the optimal engine rpm needed for their PTO applications.


The economy position provides 540 rpm to the PTO at 1700 engine rpm. The 540 economy is ideal for any lighter-duty PTO application, from running a mower-conditioner, a baler or a cutter, where full horsepower is not needed.


Operating at lower engine rpm saves fuel during some tasks. The overall operating experience improves because there is also less noise and overall tractor vibration for the operator.


A lever allows the operator to change between 540 and 540E when conditions merit the opportunity to save fuel without affecting performance.


For heavy-duty operations requiring maximum PTO power, the PTO shift lever is placed in the 540 position, the PTO is engaged, and the engine is run at a rated speed of 2400 rpm. This selection gives 540 rpm to the PTO shaft and delivers the fully-advertised horsepower at rated engine speed.


The 540/540 economy PTO offers all the features of the standard 540-rpm PTO, and the safety interlock is a foolproof measure provided to compensate for operator oversight.


When the tractor is in economy, the engine is limited to 1700 rpm, preventing accidental over-speeding of PTO implements and protecting against binding the PTO shaft.


The safety interlock also prevents accidental shifting of the PTO selector lever at engine speeds above 1700 rpm, which would lead to downtime for fixing implements or drivetrains.

Mechanical front-wheel drive (MFWD) front axle provides traction on demand
MFWD indicator light MFWD indicator light

Limited slip, heavy-duty MFWD front axle with mechanical control provides engage on-the-go capability under normal load conditions.


The limited slip solution unlocks the true potential of the axle allowing for increased drawbar pull and improved traction, even when one tire does not have sufficient traction. This ensures the operator gets the required torque to the ground for the application demand and frees the tractor to break out of a potential rutty situation, leaving operators with cleaner fields and decreasing the need for pulling chains. The MFWD front axle also reduces wheel slippage with less tractor ballasting for reduced soil compaction, increased fuel economy, and longer tire life.


The MFWD centerline design provides excellent maneuverability around the worksite and more crop clearance so producers aren't driving down their crop or profit. Additional versatility is proven when wheel treads are adjusted with six degree of caster angle and 55-degree turn angle, which results in a shorter turning radius and plenty of horsepower to turn around in tight places. The 10 degree of axle oscillation follows uneven terrain allowing for consistent performance and a comfortable ride.


Axle oscillation also reduces the stress and maintenance cost on the axle spindles because loads are consistently spread across the entire axle. The centerline design also eliminates the need for drive shaft universal joints that require regular maintenance. Three grease points are conveniently located to minimize maintenance time while maximizing front axle performance.


The MFWD engagement by button which is located on the control panel on the right-hand side of the operator. In addition, for the operator’s convenience, when MFWD is engaged an indicator light will appear on the dash.

Convenient and easy-to-use controls

Color-coded control levers communicate a message to operators, are easy to recognize and are positioned for comfortable and convenient operation.

Transmission controls
Electrohydraulic forward/reverse direction lever Electrohydraulic forward/reverse direction lever

Gear shift levers are located to the right of the operator on all models. The redesigned gear-shift lever is easier to reach. Unique knobs make it easier to distinguish between the gear and range shift levers.


Unique to the 12F/12R PowrReverser™ transmission, high-low buttons are located on the gear-shift lever which allows operators to speed up or slow down with comfort and convenience.


A foot throttle is located on the right side of the operator platform for convenient throttle adjustment by the right foot. The pedal is positioned for easy use, yet does not clutter the floor.


Engaged by using the right heel, the differential lock pedal is located on the floor.

The electrohydraulic forward/reverse direction lever is located on the left-hand side of the instrument console. Operated with the left-hand finger, the right hand is free to simultaneously manipulate the hitch, rear remote SCV levers or hand throttle.

3-point hitch controls
Electrohydraulic hitch rear fender controls Electrohydraulic hitch rear fender controls

The electrohydraulic hitch in the cab has an intuitive controller on the right-side console. A switch on the left side of the controller raises and lowers with 1/4-in. (5-mm) precision. A depth-stop wheel control allows the operator to preset the implement depth.


A hitch lever control allows convenient, precise control of the hitch. This is especially important when operating power take-off (PTO) implements, so as not to bind the PTO shaft.

Used to set the implement height, a height-limit control knob is located under the black cover. The rate-of-drop control dial is conveniently located under the black cover and sets how fast the implement lowers to the ground.

Located on the right of the controller, a draft-sensing knob measures the load sensitivity of the 3-point hitch.

Standard with the electrohydraulic hitch is the remote raise/lower switch on the left-hand fender to assist with hooking up implements (pictured above).

PTO engagement

The 540/540 economy PTO is selected with a shiftable lever and engaged with the PTO. The 540 electrohydraulic PTO is engaged with a push/pull button on the right-hand console.

Hydraulic controls

Rear hydraulics are controlled by levers located to the right of the operator; there is one lever for each valve and these levers are color coded for convenience. The forward position of each lever offers a float detent. The optional rear triple deluxe hydraulics include a selectable detent (continuous, auto-kickout, no detent) in the forward and back positions, as well as float on each valve.


Mid-mount hydraulics are operated by a joystick. Dual mid-mount control valves offer couple, dump, raise, lower, float, and quick dump.

Steering column controls
Electrohydraulic four-wheel drive (4WD) toggle switch Electrohydraulic four-wheel drive (4WD) toggle switch
Automotive-style key switch Automotive-style key switch

All 4WD axles are equipped with the engage-on-the-go toggle switch located on the right-hand side of the instrument console.


A five-position lighting package is straightforward, with the lighting control switch on the right side of the steering column. The switch positions are: off, warning, work light, transport 1 (warning and high beam headlights), and transport 2 (warning and headlights).


A turn-signal lever is located on the left side of the steering column for quick and easy use.


An automotive-style key switch and electric fuel shutoff allows the operator to easily and safely start and stop the tractor.

Open operator station provides an open-air experience with deluxe seat and strategically placed controls
Open operator station Open operator station
Right-hand console Right-hand console

The 5EN Narrow Series Tractor operator station is designed to accommodate narrow tractor dimensions while maintaining operator comfort.


Large footrests and an uncluttered floor area give the operator plenty of room to get on and off the tractor as well as comfortably operate for hours.

Deluxe vinyl seat
Deluxe vinyl seat Deluxe vinyl seat

The standard deluxe seat complements the convenient, easy-to-use controls for the best overall operating experience. The seat is suspended by two springs with a hydraulic dampener.


Enjoy the ride by adjusting the seat to the operator's preference. By using a lever to the right and under the seat, the fore-aft seat adjustment brings the operator near the steering column or provides needed legroom.


The ride-comfort knob, located behind the seat, adjusts the vertical suspension for a firm or soft ride.


The seat height can be changed by loosening the knob, lifting the seat, and tightening the knob again. The knob is located at the rear of the seat.


Retractable seat belts are included to ensure belts are easily accessible. Armrests can be ordered through Parts as an attachment to provide additional operator comfort.

Climate-controlled cabs achieve a smooth and quiet operating experience for increased performance
Cabs provide optimal comfort and convenience Cabs provide optimal comfort and convenience
Climate-controlled cab interior Climate-controlled cab interior

The operator of a 5EN Narrow Series Cab will appreciate the reduction in noise and vibration through the seat, steering wheel, and lever controls with a roll-over protective structure (ROPS) certified, factory-installed cab.


The cabs are assembled to the tractor chassis as a complete unit and mounted on composite isolators. This system of assembly and mounting is similar to the successful mounting methods of the larger-horsepower tractors in the John Deere tractor lineup.

The perfect operator environment

5EN Narrow Series cabs provide a clean, quiet environment protected from the elements including activated carbon filter. A powerful heating and air-conditioning system allows the operator to control the cab climate to preference, regardless of the conditions outside. The standard visor blocks the sun on bright days, while a dome light allows the operator to see controls at all times of the day.


The cab's side windows open forward for excellent ventilation. The left-side door opens wide for easy entry and egress. For excellent rear visibility, the 63-L (16.6-gal.) lockable fuel tank is located below the left-hand side of the platform. The rear window opens to 70 degrees, providing visibility to the operator when hooking up implements. An interior rearview mirror provides additional visibility.


A tilt and telescoping steering column enables a custom fit for each operator. The clean, uncluttered interior design with flat platform maximizes the operator's space. A conveniently located beverage holder provides space for their drink of choice. Take further pleasure in the ride with a radio available as a field-installed attachment.

Operating features and solutions
Right-hand console Right-hand console
Left-hand controls cab Left-hand controls cab

A front windshield wiper with washer ensures the operator can safely see the surroundings of the tractor.


Excellent night visibility is achieved with a full lighting package, and work lights are easily adjusted to redirect light without tools.


The operator's station is equipped with a convenient three-pin power outlet for a monitor, controllers, and other operating necessities. Four sets of mounting bosses and a removable rear access plug for monitor or controller harnesses also make using a monitor easy.


A rear seven-pin electrical outlet socket is for implement electrical requirements, and a 90-amp alternator handles increased electrical requirements. To handle increased powertrain and hydraulic requirements in severe conditions, a hydraulic oil cooler comes standard.


The battery is located at the front of the tractor for easy access. Fenders are designed to provide plenty of tire clearance, even with the largest wheel-tire combinations.


Features are as follows:

  • Rollover protective structure (ROPS-certified structure for operator protection
  • Tempered safety glass in case of breakage
  • Left and right outside mirrors available (optional)
  • Roof-mounted amber turn-signal/flashing-warning lights for road transport—two front and two rear
  • Two fender-mounted taillights for road transport
  • Two large cleated steps on each side
  • Front and rear windshield wipers
  • GreenStar™ ready cab
Deluxe adjustable cloth seat
Deluxe cloth seat Deluxe cloth seat

A deluxe adjustable cloth seat is standard with cab tractors. Ergonomically-designed seat cushioning and support provide unsurpassed operator comfort. This is the same basic seat used with vinyl covering for the isolated open operator station tractors.


Fore-aft adjustment is easy using a lever located at the operator's right-hand side. Height adjustment is accomplished without tools and four possible positions set the limit for how high the seat will travel.


A weight-suspension adjustment is easily accomplished from the seat and adjusts to the operator's weight (45 kg to 125 kg).


When the suspension is set to the weight of the operator, the indicated height setting appears through a display window. This allows the operator to set the seat suspension at its mid-point of travel. The backrest angle is adjustable with a lever in the lower-left corner of the seat cushion and retractable seat belts are easily accessible.
