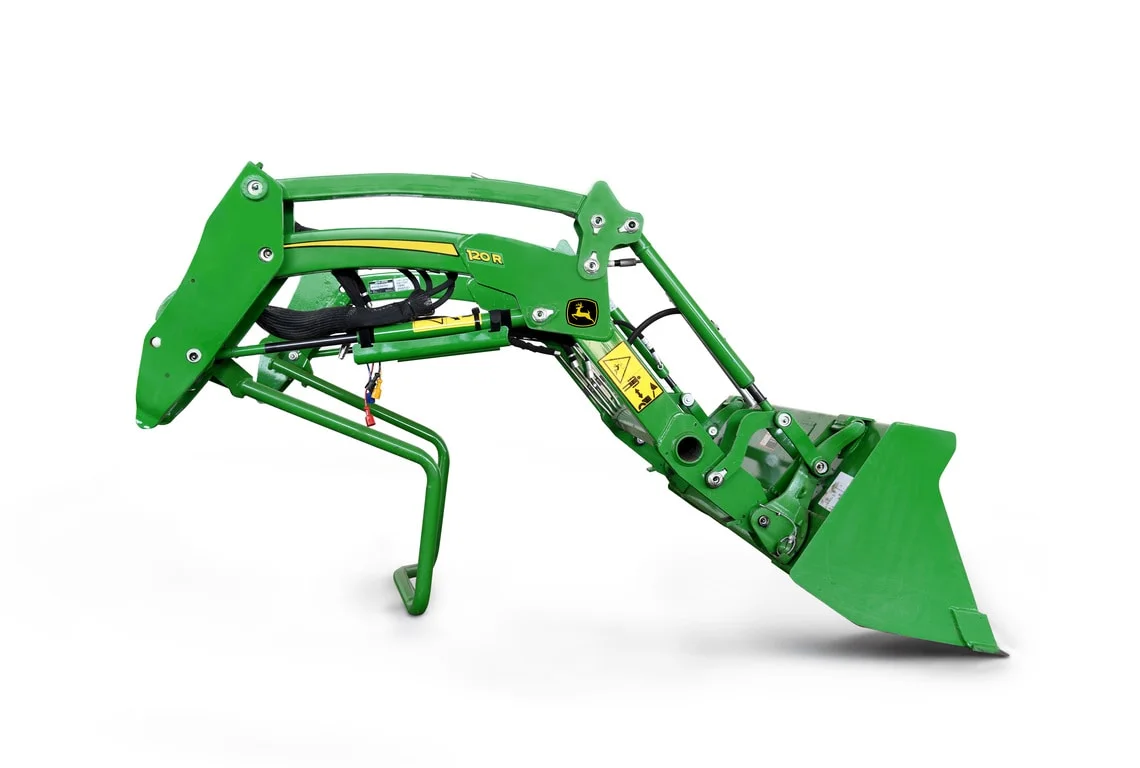

120R
Loader
  • Compatible with the 1023E, 1025R and 2025R
  • Quik-Park™ stands for easy attachment and removal
  • 309 kg (681 lbs.) of lift capacity
  • 1,820 mm (72 in.) of lift height
Make an Enquiry on This Machine
Features
120R Mechanical Self-Levelling Loader
Expand All
Operate with ease and efficiency using the mechanical self-leveling (MSL) loader

Whether the operator is new or experienced to loader operations, it requires skill to maintain an even load and reduce the amount of material lost. With the MSL loader offering for 1 Family, 2 Family, and 3E Tractors, anyone can operate their loader with ease and confidence.  With the MSL loader, you will notice:

  • Loader implement will maintain position wherever the loader is lifted to
  • Increased lift capacities
  • Reduction of material lost during operation
  • Easy visibility of the bucket level indicator on the right-hand side of the loader boom to help determine the position of the front implement
Studio rendering of 1R Tractor with 120R MSL Loader Studio rendering of 1R Tractor with 120R MSL Loader
Pallet fork usage rendering of 1R Tractor with 120R MSL Loader Pallet fork usage rendering of 1R Tractor with 120R MSL Loader
Easily remove and mount loader to and from the tractor without tools
Quik-Park™ loader mounting system Quik-Park™ loader mounting system
#

The Quik-Park mounting system on the 120R Loader is designed for easy removal and mounting to and from the tractor without tools.



Just like on the former 120R, the parking stand is attached to the mast. To lower it into the park position, simply move the joystick to the raise position once the latches are opened.

Mount to and from the tractor without tools Mount to and from the tractor without tools
End-of-pin lubrication on cylinder and pivot pins allows easy access for servicing grease points
Pivot pin Pivot pin
Pivot pins shown on the 120R Loader Pivot pins shown on the 120R Loader

The unique offset head design eliminates cross-pins and cotter pins to retain the pin.



A nut ensures the pins remain in position.



A lubrication groove provides a path for lubrication.



End-of-pin lubrication allows easy access for servicing grease points, which are visible from the side of the loader.
