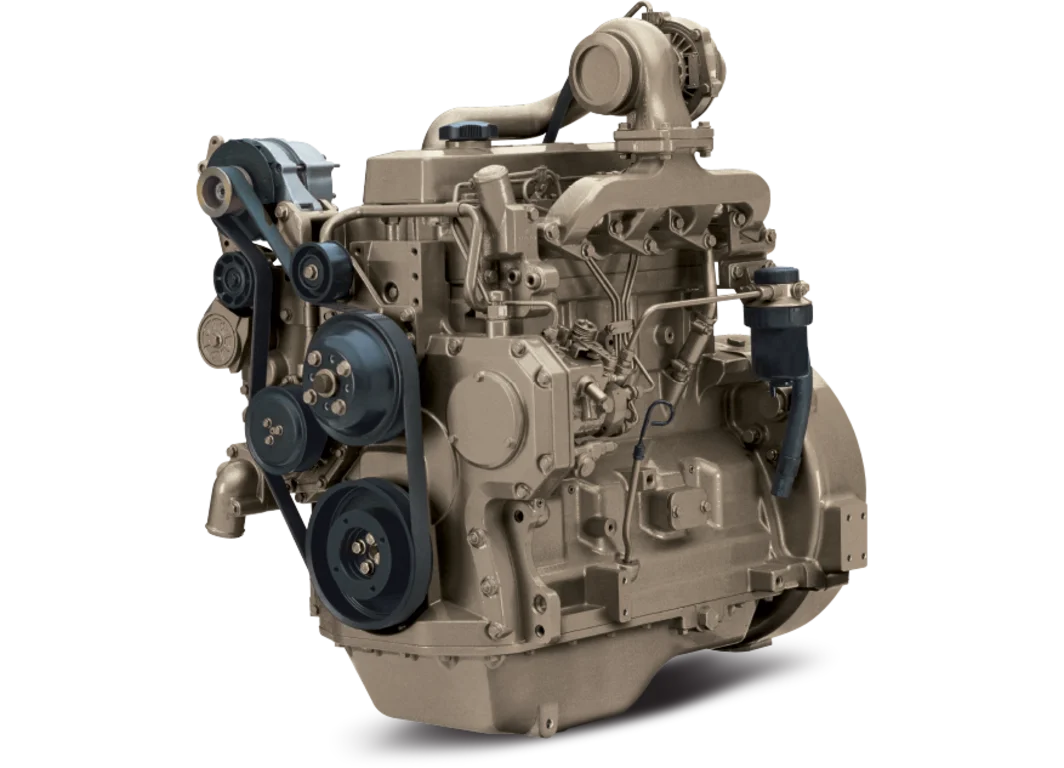

4045TF220
Industrial Diesel Engine
  • PowerTech ™
  • 86 kW (115 HP)
Make an Enquiry on This Machine
Features
industrial engine, John Deere engine, diesel engine, OEM engine, engine support, PowerTech, Tier 2, Tier 1, non-certified, drivetrain, tractor engine, construction equipment engine, agriculture equipment engine, forestry equipment engine, 115 hp, 86 kW, off-highway engine, off-road engine
Expand All
Dynamically balanced crankshaft
  • Crankshafts are formed from nodular iron
Forged-steel connecting rods
  • Unique 45-degree design permits use of larger crankshaft connecting-rod bearings for increased durability
Self-adjusting poly-vee fan drive
  • Self-adjusting, eight-groove, poly-vee fan drive provides multiple fan drive ratios and fan heights that can be matched to specific application requirements
  • Poly-vee design provides more than twice the drive capacity of comparable vee-belts
Replaceable wet-type cylinder liners
  • Provides excellent heat dissipation
  • Precision machined for long life
Either-side service
  • Engine installation and maintenance simplified and convenient by providing dipstick and oil filter options on both sides of the engine
Standard gear auxiliary drive
  • Standard gear auxiliary drive produces up to 50 hp (37 kW) for gear-driven accessories
Mounting points
  • Standard front and side mounting points provide easy installation and application flexibility
Optional engine-balancer shafts
  • Provides smooth engine operation
Specifications
Expand All
General Engine Data
Model
4045TF220
Number of cylinders
4
Displacement-- L (cu in)
4.5 (275)
Bore and Stroke-- mm (in)
106 x 127 (4.17 x 5.00)
Compression Ratio
17.0:1
Engine Type
In-line, 4-Cycle
Aspiration
Turbocharged
Length - mm (in)
860 (33.9)
Width-- mm (in)
612 (24.1)
Height-- mm (in)
994 (39.1)
Weight, dry - kg (lb)
396 (873)
Performance Data Range
Intermittent - Rated power/Rated speed
86 kW (115 hp) @2500 rpm
Intermittent - Peak power
86 kW (115 hp) @2500 rpm
Intermittent - Peak torque
401 N·m (296 ft-lb) @1400 rpm
Intermittent - Torque rise
NA
Emissions Certifications
Non-Emissions Certified
