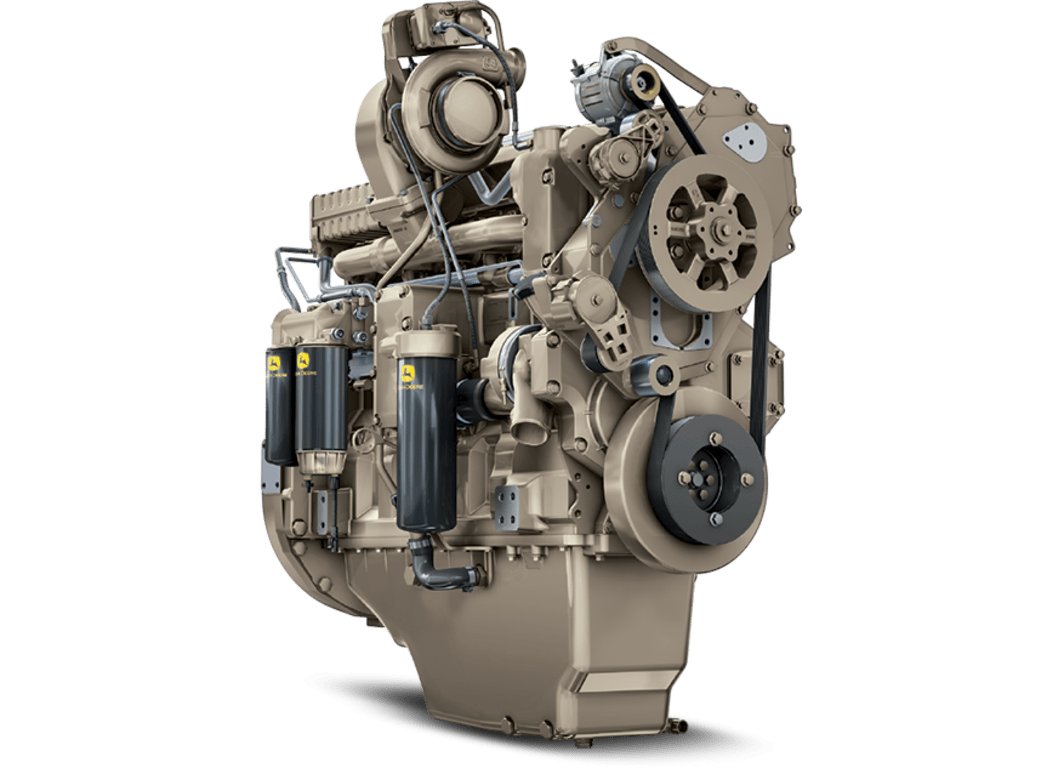

6135HF485 Variable Speed
Industrial Auxiliary Engine
  • 13.5L PowerTech™
  • 448 kW (600 hp)
Make an Enquiry on This Machine
Features
Run pumps, winches, deck cranes, hydraulics, and generators with a Tier 3 John Deere variable speed industrial auxiliary engine.
Expand All
4-valve cylinder head
  • The 4-valve cylinder head provides excellent airflow resulting in greater low-speed torque and better transient response. Cross flow design.
Electronic unit injectors (EUI) and engine control unit (ECU)
  • The EUI fuel system provides variable common-rail pressure, multiple injections, and higher injection pressures, up to 2000 bar (29,000 psi). It also controls fuel injection timing and provides precise control for start, duration, and end of injection.
Cooled exhaust gas recirculation (EGR)
  • EGR cools and mixes measured amounts of cooled exhaust gas with incoming fresh air to lower peak combustion temperatures, thereby reducing NOx.
Variable geometry turbocharger (VGT)
  • Varies exhaust pressure based on load and speed to ensure proper EGR flow
  • Greater low-speed torque, quicker transient response, higher peak torque, and best-in-class fuel economy.
Air-to-air aftercooled
  • This is the most efficient method of cooling intake air to help reduce engine emissions while maintaining low-speed torque, transient response time, and peak torque. It enables an engine to meet emissions regulations with better fuel economy and the lowest installed costs.
John Deere electronic engine controls
  • Electronic engine controls monitor critical engine functions, providing warning and/or shutdown to prevent costly engine repairs and eliminate the need for add-on governing components all lowering total installed costs. Snapshot diagnostic data that can be retrieved using commonly available diagnostic service tools.
  • Controls utilize common wiring interface connector for vehicles or available OEM instrumentation packages.
  • Solid conduit and "T" connectors to reduce wiring stress and provide greater durability and improved appearance.
  • Factory-installed, engine mounted ECU or remote-mounted ECU comes with wiring harness and associated components. Industry-standard SAE J1939 interface communicates with other vehicle systems, eliminating redundant sensors and reducing vehicle installed cost.
Additional features
  • Gear-driven auxiliary drives
  • 500-hour oil change
  • Self-adjusting poly-vee fan drive
  • Either-side service
  • Single-piece low friction piston
  • Optional rear PTO
  • Low-pressure fuel system with "auto-prime" feature
  • Directed top-liner cooling
Specifications
Expand All
General Engine Data
Model
6135HF485
Number of cylinders
6
Displacement-- L (cu in)
13.5 (824)
Bore and Stroke-- mm (in)
132 x 165 (5.20 x 6.50)
Compression Ratio
16.0:1
Engine Type
In-line, 4-Cycle
Aspiration
Turbocharged and air-to-air aftercooled
Length - mm (in)
1334 (52.5)
Width-- mm (in)
855 (33.7)
Height-- mm (in)
1512 (59.5)
Weight, dry - kg (lb)
1493 (3291)
Performance Data Range
Intermittent - Rated power/Rated speed
448 kW (601 hp) @2100 rpm
Intermittent - Peak power
448 kW (601 hp) @2100 rpm
Intermittent - Power bulge
0 %
Intermittent - Peak torque
2550 N·m (1881 ft-lb) @1275 rpm
Intermittent - Torque rise
25%
Emissions Certifications
EPA Marine Tier 3
