16.4-kW (22-hp) engine

Oil filter and fuel filter

A 16.4-kW (22-hp) V-twin engine provides plenty of power and torque to handle tough mulching, mowing, and bagging conditions:

• V-twin cylinder design for greater torque, lower vibration, and improved sound quality
• Electronic ignition for fast starts
• Spring-return feature to ensure the operator will not mistakenly leave the throttle lever in the choke position
• Cast-iron cylinder liners for longer engine life
• Overhead valves for excellent power and fuel economy
• Full-pressure lubrication and oil filter for cleaner oil, prolonging engine life and extending the time between oil changes
  • More effective when operating the tractor on an incline

Fuel tank has gauge to show fuel level from the operator's seat

Fuel tank gauge

Convenient fuel-filler opening

The fuel tank gauge shows how much fuel is in the tank and can be seen without leaving the operator's seat:

• Easy to check fuel level
• Convenient location

Fuel tank:

• The capacity is 9.1 L (2.4 U.S. gal.)
• The fuel-filler opening is conveniently located under the seat.
  • Filling the tank without spilling is easy.
  • A tethered fuel tank cap is more convenient.
  • The sealed fuel cap helps keep vapors inside the tank.
  • The tractor has a California Air Resources Board (CARB) certified engine for reduced air pollution.

Solid one-piece frame

Solid one-piece frame

The solid one-piece frame is constructed of 12-gauge, 2.66-mm (0.105-in.) steel:

• Full-length, robotically-welded frame design has high-strength steel rails for added strength and long life.
• One-piece, steel fender deck is bolted to the frame.

Cast-iron front axle will not bend

Front axle and wheel spindle

The front axle is constructed of solid cast iron that will not bend:

• Automotive-like steering system with sector and pinion steering gears and single drag link with a tie rod provides a very strong, low-effort, and tight-turning system.
• Three grease fittings, on both steering spindles and center pivot, allow for regular lubrication to help maintain easy steering and minimize wear.
• Large, 1.9-cm (0.75-in.) diameter wheel spindles provide excellent durability.

CargO Mount™ system makes installation of rear bagger and other attachments easy

Rear CargO Mount points

Front CargO Mount points

Rear bagger is mounted with CargO Mount points

Rear bagger is mounted with CargO Mount points

The CargO Mount system is a combination of front- and rear-mounting points providing convenient and easy installation of the sun canopy, rear bagger, and other attachments.

Two-pedal speed/direction controls

Forward speed control pedal in use

A Kanzaki® Tuff Torq® hydrostatic transmission gives an infinite choice of speeds and makes changing the direction of travel easy. Side-by-side foot pedals control the speed and direction of travel:

• Automotive-type accelerator controls ensure easy operation.
• Operator can change direction without lifting foot off the platform.
• Large pedal surface gives superior operator comfort.

Hydrostatic transmission

Appropriate transmissions are used in each model, depending on rear tire size and tractor performance requirements, to ensure excellent performance and reliability:

• Tuff Torq TLT200A - E110, E120, E130

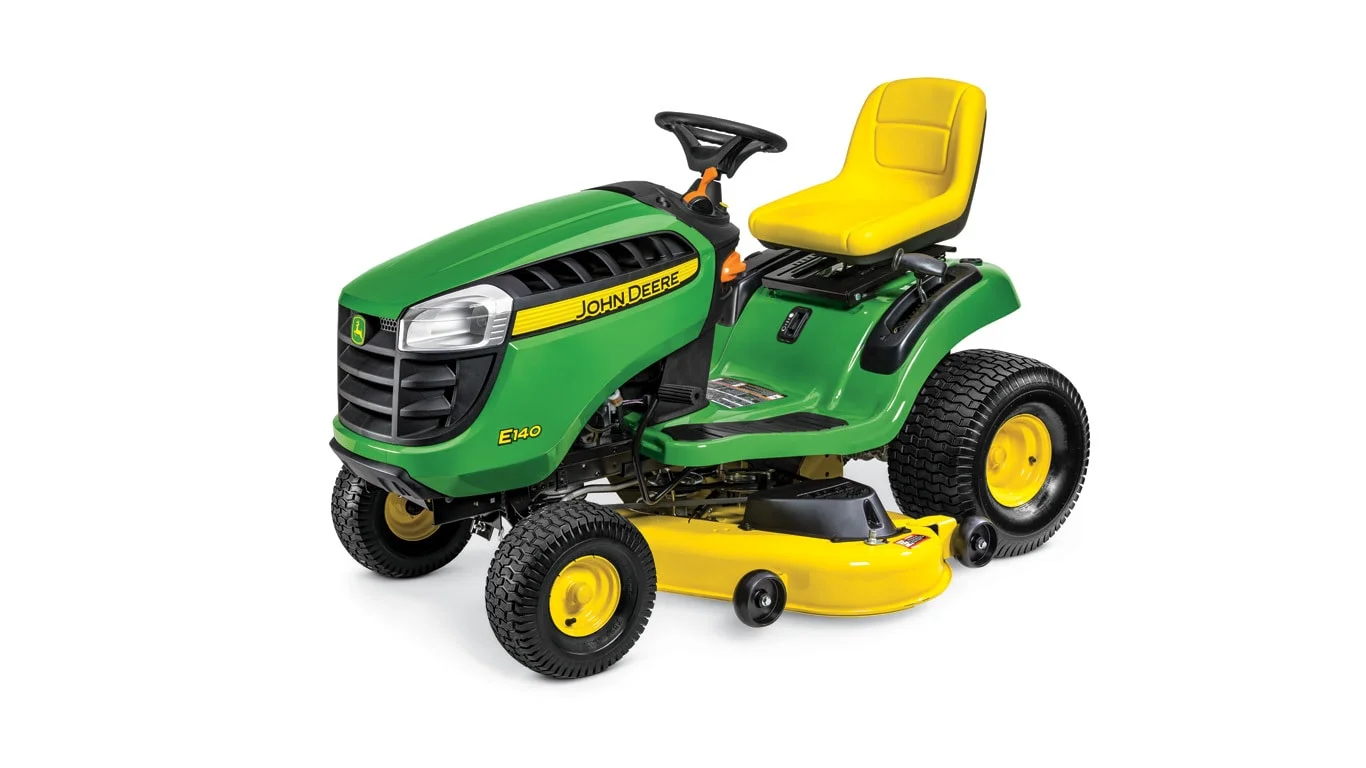

• Tuff Torq TLT200B - E140

Standard cruise control (E120 and E130)

Cruise control lever

An easy-to-use cruise control option maintains the tractor's speed for mowing larger areas:

• To engage, lift up on the cruise lever and hold it until the foot is removed from the forward pedal.
• To disengage, lightly press and then release the forward pedal.
• For emergency stops, cruise can be released by pushing on the brake pedal or pushing down on the cruise control lever.

NOTE: Cruise control is available on all models except the E100, E110, and E140.

Kanzaki and Tuff Torq are trademarks of Kanzaki Kokyukoki Manufacturing Company.

Comfortable operator station, right side

Comfortable operator station, left side

The operator station is designed for operator comfort and easy operation:

• Controls are positioned where they are easy to reach and use to control the tractor.
• The steering wheel is positioned and angled to give the operator plenty of room and steering comfort.
• The seat is tilted back at the optimum angle to provide the most comfortable operator position.

Steering wheel and dash

Wide footrest with debris-removal channels

Controls are easy to see and use:

• Large, three-spoke steering wheel for greater operator comfort and control
• Ignition switch is on the dash for starting ease

Wide footrest areas with non-slip, anti-vibration floor mats are provided for operator comfort:

• Debris removing channels help keep the footrest area clean and dry
• The wide footrest makes it easier to step over the mower deck while entering or exiting the seat.

Comfortable seat

Easily-adjusted seat

The operator seat has a 38.1-cm (15-in.) back height for good support. It is especially helpful when operating the tractor for extended periods of time. It can be easily adjusted forward or rearward while in the seat, with seat travel of 14 cm (5.5 in.) and 10 different positions.

Seat springs give a smoother ride

Two long seat springs give plenty of seat travel to smooth out the ride, keeping the operator comfortable while operating the tractor.

The seat can be tilted forward for protection from the elements and to provide easy access to the fuel tank.

Storage compartment (shown with optional cover)

Beverage holder (optional storage compartment cover shown)

A storage compartment and beverage holder, located on the right-side fender, are conveniently located and easy to use.

NOTE: A storage compartment cover is standard on E120 and E130 Tractors and optional on the E110 and E140.

Steering wheel and controls

Instruments and controls

The contoured dash has clean, attractive styling:

• Controls are color-coded and labeled for easy identification by the operator.
• Controls are logically placed and easy to reach.
• The hourmeter makes it easy to tell when oil changes and other maintenance should be performed.
• A service reminder feature will indicate that a general lubrication or mower/engine service interval has been reached.
• When service is required, arrows will periodically flash for two hours.
• Functional design of the controls provides good appearance and a comfortable feel.

Side-by-side transmission control pedals

Two-pedal speed/direction controls

Side-by-side foot pedals and cruise control lever

Side-by-side foot pedals control the speed and direction of travel:

• Automotive-type accelerator controls ensure easy operation.
• Operator can change direction without lifting foot off the platform.
• Large pedal surface gives superior operator comfort.

Cruise control (E120 and E130)

Cruise control lever

Cruise control is available on the E120 and E130:

• To engage, lift up on the cruise lever and hold until the foot is removed from the forward pedal.
• For emergency stop, the cruise control can be released by pushing on the brake pedal or the forward pedal.

Mower deck height adjustment

Mower deck height adjustment lever

Mower deck height adjustment lever

A spring-assisted, low-effort lift lever simplifies setting and adjusting the mower cut height:

• Increments of 0.64 cm (0.25 in.) allow fine-tuning the cut height.
• Cut height is adjustable from 2.5 cm (1 in.) to 10.2 cm (4 in.).

Parking brake control

Brake/parking brake pedal

Parking brake lever

The parking brake control is conveniently located for easy access. It holds the brake pedal securely in the locked position.

Electric power take-off (PTO) clutch is easy and convenient to use

Electric PTO engagement switch

The heavy-duty electric PTO clutch is operated with a convenient dash-mounted switch.

A large, easy-to-see reverse implement option (RIO) button is convenient to use when mowing in reverse is desired.

Reverse implement option (RIO)

RIO switch

Mowing while backing up is strongly discouraged.

The operator who deems it necessary to keep the mower (or other implement) engaged while backing up should first bring the tractor to a stop and look behind the tractor to be sure there are no bystanders. Then actuate (push in) the RIO button. The RIO button must be held down in the reverse implement position as the shift lever is moved into reverse (reverse foot pedal is depressed on models with a hydrostatic transmission).

The operator may then release the button and the mower will continue to operate while backing up and also when resuming forward operation. This procedure must be repeated the next time the operator chooses to keep the mower engaged while backing up. If the mower power take-off (PTO) is engaged and the operator shifts into reverse or depresses the reverse pedal prior to pressing the RIO button, ignition to the engine will be shut off. The engine will stop unless the operator either pushes on the RIO switch or shifts out of reverse.

If the engine does stop, the operator must return the mower engagement (PTO) switch or lever to the off position, depress the brake pedal, and then turn the ignition switch to restart the engine.

One-piece hood is easy to open

Service interval decal located under hood

The one-piece hood opens easily to permit checking and servicing the engine:

• Important service points are located within easy reach.
• A service interval decal is provided inside the tractor hood for convenience when servicing the tractor.
• Hourmeter includes a service reminder feature that flashes for two hours when a lubrication or mower/engine service interval has been reached.

Easy-to-service engine fuel and oil filters

Seat tilted up for easy access to fuel-fill opening

The engine fuel and oil filters, the oil check/fill tube, and the oil drain tube are exposed for serviceability when the hood is opened.

The seat tilts up and out of the way to make adding fuel easy.

The 100 Series Tractors are covered by a 2-year/120-hour bumper-to-bumper warranty*:

• Premium features of 100 Series Tractors allow for this long warranty period.

*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.

Hood will not dent or rust and includes quality headlights for good visibility

One-piece hood opens for service access

Quality headlights for good visibility

The hood is made of molded-in color material:

• Reduces sound
• Will not rust or dent
• Openings on the side of the hood let in plenty of cooling air while keeping the sound level low.
• Two headlights provide good lighting for nighttime operation.

122-cm (48-in.) Edge cutting system

The Edge cutting system has been trademarked to emphasize the advantages of the John Deere mower deck designs. They give superior convenience, performance, and reliability:

• Deep-deck mower design lifts grass for a clean, even cut.
• Smooth underside of mower prevents grass buildup and evenly disperses grass clippings.
• The rolled outer edge of the deck provides extra strength and protection.
• Dual-stage E-coat and powder paint coatings provide extra protection from rust.

The 122-cm (48-in.) Edge mower deck is a three-spindle design with heavy-duty characteristics:

• Four mower wheels are standard equipment for a smooth mowing job, even in rolling terrain.
• Flexible discharge chute minimizes property and mower deck damage.
• No tools are required to go from mulching (with mulch cover) to side discharge to rear bagging.
• A mulch cover is an optional attachment that can be installed without the use of tools.
• A high-performance mulching blade (GX21786) is available to enhance mulching performance.
• Bagging blades are available to improve bagging performance.

The mower deck has a rolled lip to provide greater strength and protection. The rugged 12-gauge, 2.7-mm (0.105-in.) steel-deck mower will provide years of dependable mowing.

The blade-to-spindle design provides a unique mounting system for the mower blade that gives extra safety and convenience.

A cut-and-throw, 229-L (6.5-bu) rear bagger is sold separately and comes with bagging blades.

Mower wash port

Mower wash port

Mower wash port with hose connector

A wash port is provided to make cleaning the underside of the mower deck easy:

• A hose connector is included with mower deck.

StarLock™ blade design

StarLock blade design

The StarLock blade design keeps the blade bolt at the correct torque for easy removal.

Optional blades for difficult mulching or bagging conditions are available.

Mower deck height adjustment

Mower deck height adjustment lever

Mower deck height adjustment lever

A spring-assisted, low-effort lift lever simplifies setting and adjusting the mower cut height:

• Increments of 0.64 cm (0.25 in.) allow the operator to fine-tune the cut height.
• Cut height is adjustable from 2.5 cm (1 in.) to 10.2 cm (4 in.).
• The lift handle is shaped and located for easy use and is out of the way of entering or exiting operators.

An exclusive 2-year or 120-hour (whichever comes first), single-source, bumper-to-bumper warranty* is standard for all John Deere 100 Series Tractors.

• The warranty is hassle free, with one company handling all of the paperwork.
• Premium features of 100 Series Tractors allow for this longer warranty period, with more coverage than comparable tractors.

*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.

Engine power

22 hp
16.4 kW

Engine manufacturer/model

44N677 (M44)

Transaxle type

Hydrostatic, 2-wheel drive

Transaxle control

Two-pedal foot-controlled hydrostatic

Rear tires

20x10-8

Steering type

Sector and pinion with single drag link and tie rod

Lift system type

Lever on fender deck

Cutting width

Edge™ mower deck, 48 in.
122 cm

U.S. warranty

2 year/120 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)

Power

22 hp
16.4 kW

Displacement

44.2 cu in.
724 cc

Manufacturer/model

44N677 (M44)

Type

Overhead valve, full-pressure lube, oil filter

Cylinders

V-twin

Governor

Mechanical

Choke/speed control

One lever

Cooling method

Air

Air cleaner

Cartridge

Oil drain

No tools

Type

Gasoline

Fuel delivery

Pulse pump and carburetor

Fuel gauge

Mechanical, viewable from seat

Fuel tank location

Rear

Fuel fill opening

Center, 1.75 in.
4.45 cm

Fuel tank capacity

2.4 U.S. gal.
9.1 L

Battery

12 V
300 CCA

Charging system

Regulated, 9 amp

Engine starter

Bendix type

Hourmeter

Yes, with service reminder

Headlights

Two standard, incandescent

Taillights or reflector

No

Backup lights

No

Rear work lights

No

12-V outlet

Optional accessory

Type

Hydrostatic, 2-wheel drive

Control

Two-pedal foot-controlled hydrostatic

Cruise control

No

Oil cooler

Fins and fan on transaxle

Oil filter

Yes, not serviceable

Differential lock

No

Forward speed

0-5.5 mph
0-8.9 km/h

Reverse speed

0-3.2 mph
0-5.1 km/h

Brakes

Internal wet disk

Frame

Full-length welded steel

Primer/paint

E-coat/powder

Weight bracket

Optional rear

Receiver hitch

No

Front axle

Cast-iron front axle, powdered-metal front wheel bushings

Spindle bushings

No

Front tires

15x6-6

Rear tires

20x10-8

Hood material

JD Loy, UV resistant

Fender deck material

Stamped steel

Floor mats

Yes, with debris removing channels

Storage

Storage tray with optional cover

Service interval decal

Yes

Fender handles/grips

No

Cup holder

Yes

Equipment mounting

CargO Mount™ system

Type

Sector and pinion with single drag link and tie rod

Four-wheel steer

Not available on this model

Steering wheel

Standard, diameter - 12 in.
30.5 cm

Tilt steering wheel

No

Turning radius

18 in.
45.7 cm

Uncut circle radius

20 in.
50.8 cm

Type

One piece

Seat back height

15 in.
38.1 cm

Armrests

No

Fore-aft adjustment

While seated, 5.5 in.
14 cm

Seat suspension

Tilt, two coil springs

Type

Lever on fender deck

Hydraulic outlets

No

Mower cut height

13 positions, 1-4 in.
2.5-10.2 cm

Cut height increments

0.25 in.
0.64 cm

Preset cut height

No

Type

Side discharge

Cutting width

Edge™ mower deck, 48 in.
122 cm

Construction

Stamped steel deck shell

Mower deck material

Steel, 12 gauge
0.105 in.
2.7 mm

Mower wash port

Yes

Mower drive system

Electric power take-off (PTO) clutch

Mower wheels

Four

Mower wheel adjustment

One bolt

Mower level adjustment

Easy-level deck

Type

Slide under tractor

Front draft arms

One spring clip

Rear draft arms

Two spring clips

Mower wheels rotate

No

Drive system

Single belt

Meets ANSI standard

Yes

Meets OPEI standard

Yes

Backup protection

Reverse Implement Option (RIO)

Safety video

Yes

Notes

JD Loy hood resists fading, won't rust or dent
Durable primer and powder paint finish
Full-length welded steel frame

Warranty

2 year/120 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)

Mowers

Standard, 48 in.
122 cm

Rear bagger

2-bag, 6.5 bu
229 L

Powered material collection

Mulching system

Mulch cover

Front thatcher

Front blade

46 in.
116.8 cm

Mid-mount blade

Snow blower

Two-stage, 44 in.
111.8 cm

Rotary broom

Rotary tiller

Sleeve hitch

3-point hitch

Rear power take-off (PTO)

Plow, moldboard

Box scraper

Cultivator

Rear blade

Disk harrow

Landscape rake

Sprayer

Tow-behind, 15 U.S. gal.
56.8 L
Mounted, 15 U.S. gal.
Tow-behind only, 25 U.S. gal.
94.6 L

Spreader

Tow-behind only, 125-175 lb
57.7-80 kg

Front bumper

Two-bar styled front bumper

Brush guard

Weather protection

Snow cab

Sun canopy

Yes

Rear receiver hitch

Bucket holder

Yes, single bucket

Grass striping

Lawn striping kit

Tractor shovel

Front loader

Other equipment

Tow-behind tools

16

Height

44.5 in.
113 cm

Overall length

70.3 in.
178.6 cm

Wheelbase

48.9 in.
124.2 cm

Width with mower

63 in.
160 cm

Width with mower (deflector raised for storage)

51.7 in.
131.3 cm

Width without mower

Weight

Mower, no fuel, 475 lb
215 kg

Date collected
